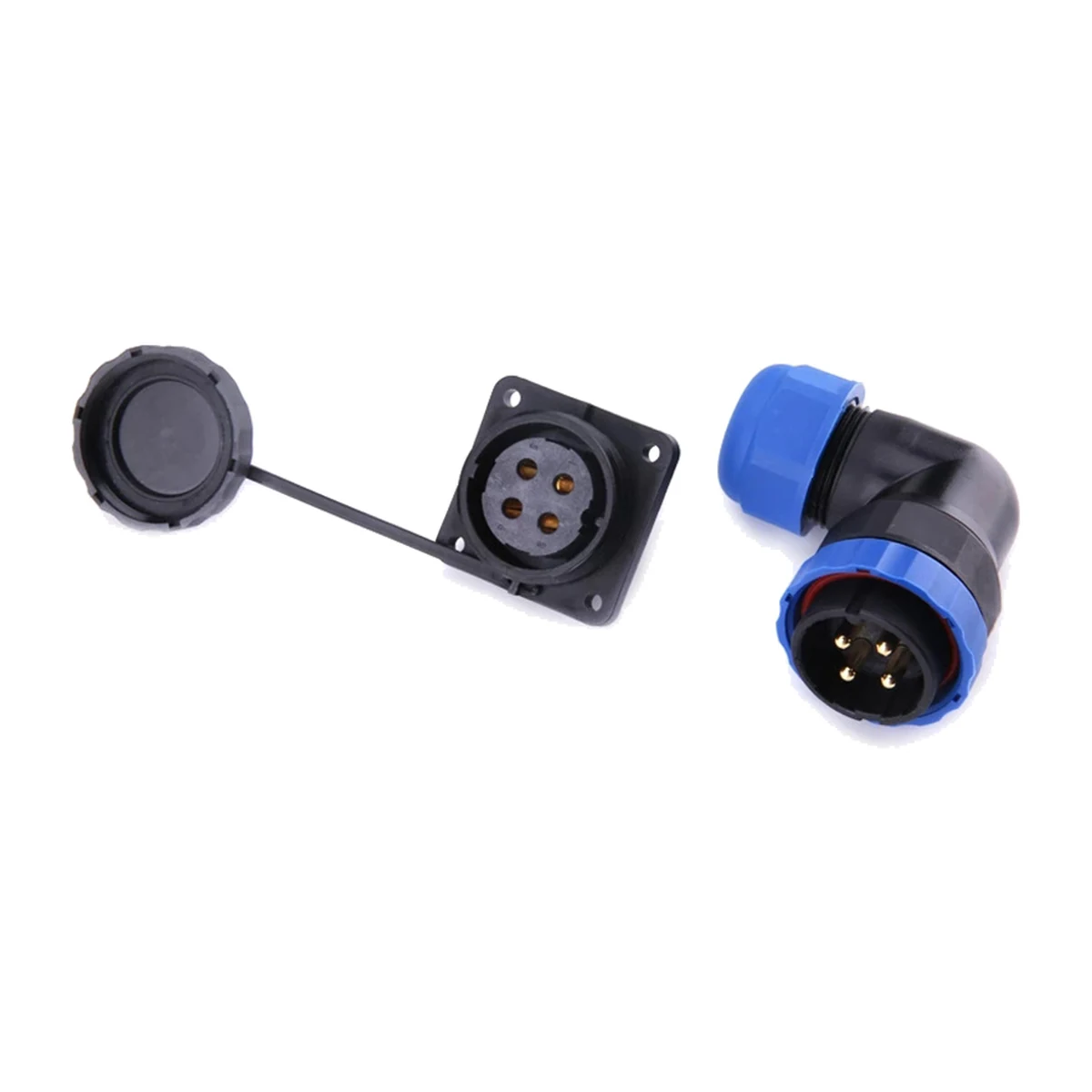

SP28-RA right-angle aviation connector — IP68, view 1 of 1
In stock

SP28-RA right-angle aviation connector — IP68

SP28-RA · Connectors / Aviation connectors
From $7.50USD / pc · EXWfrom 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts15 variants

SP28-RA is a sealed circular aviation connector with right-angle mounting. Offered in 15 contact counts from 2 to 26. IP68 sealed. PA66 housing. Copper contacts. Priced per piece EXW from Yueqing, 50 pcs minimum per model.

Variants
ConfigurationStockEXW / pc
SP28 · 2-pin right-angle 4-hole flange100$8.07
SP28 · 3-pin right-angle 4-hole flange100$8.82
SP28 · 4-pin right-angle 4-hole flange100$9.57
SP28 · 5-pin right-angle 4-hole flange100$7.50
SP28 · 6-pin right-angle 4-hole flange100$7.88
SP28 · 7-pin right-angle 4-hole flange100$8.25
SP28 · 9-pin right-angle 4-hole flange100$8.63
SP28 · 10-pin right-angle 4-hole flange100$9.00
SP28 · 12-pin right-angle 4-hole flange100$9.38
SP28 · 14-pin right-angle 4-hole flange100$10.88
SP28 · 16-pin right-angle 4-hole flange100$10.50
SP28 · 19-pin right-angle 4-hole flange100$10.88
SP28 · 22-pin right-angle 4-hole flange100$11.25
SP28 · 24-pin right-angle 4-hole flange100$11.63
SP28 · 26-pin right-angle 4-hole flange100$12.00
Request a quoteBack to catalog

Specifications

Model SP28-RA
Electrical
Ingress protectionIP68
Rated current5–45 A
Rated voltage250–380 V
Contact platingCopper
Mechanical
HousingPA66
Mountingright-angle
Contacts2–26 pins
Identification
SeriesSP28
Configurationplug and socket set
