In stock

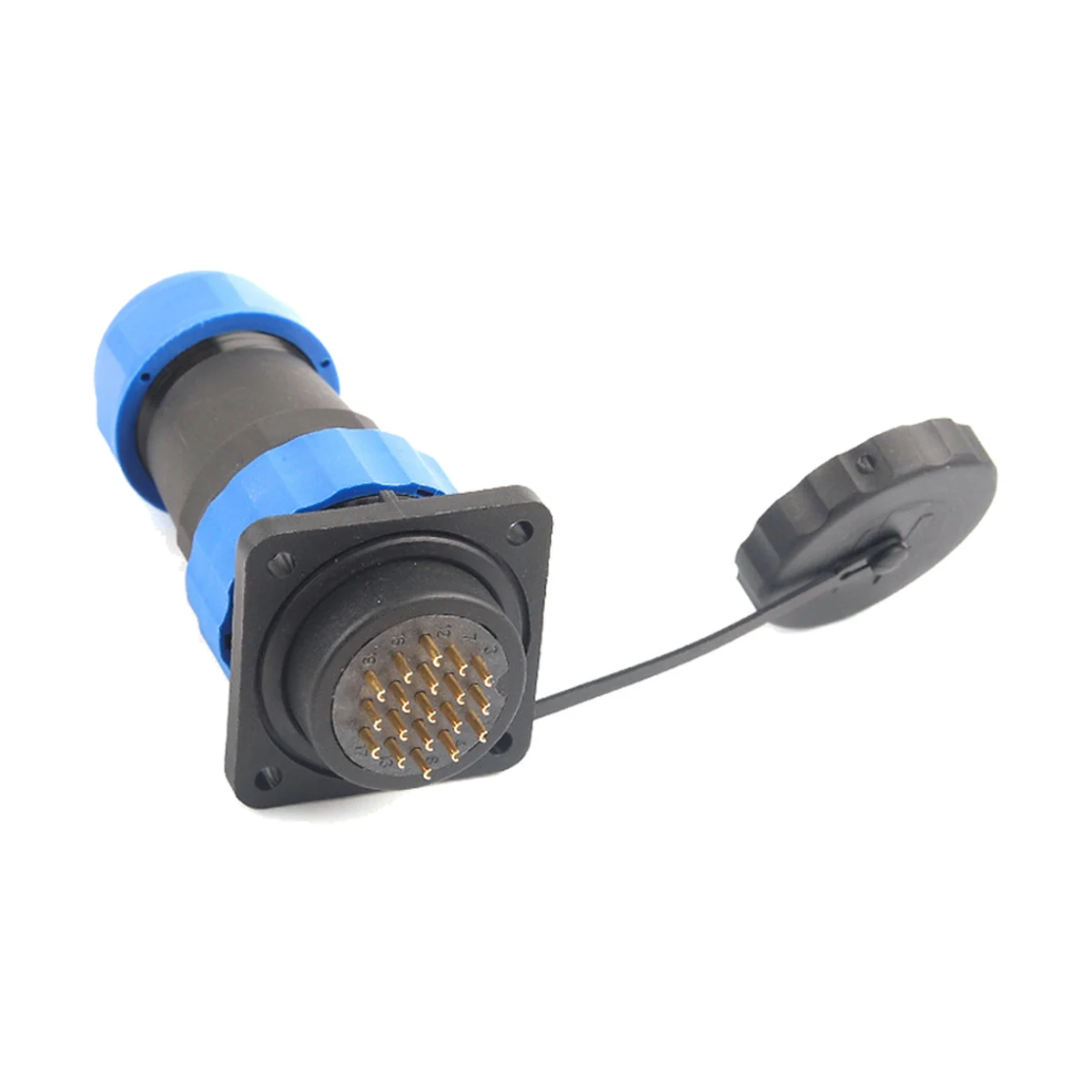

SP28-SQ 4-hole flange aviation connector — IP68
From $6.75from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts15 variants
SP28-SQ is a sealed circular aviation connector with 4-hole flange mounting. Offered in 15 contact counts from 2 to 26. IP68 sealed. PA66 housing. Copper contacts. Priced per piece EXW from Yueqing, 50 pcs minimum per model.
| Configuration | Stock | EXW / pc |
|---|---|---|
| SP28 · 2-pin 4-hole flange | 100 | $6.75 |
| SP28 · 3-pin 4-hole flange | 100 | $7.50 |
| SP28 · 4-pin 4-hole flange | 100 | $8.25 |
| SP28 · 5-pin 4-hole flange | 100 | $6.75 |
| SP28 · 6-pin 4-hole flange | 100 | $7.88 |
| SP28 · 7-pin 4-hole flange | 100 | $7.50 |
| SP28 · 9-pin 4-hole flange | 100 | $7.88 |
| SP28 · 10-pin 4-hole flange | 100 | $8.25 |
| SP28 · 12-pin 4-hole flange | 100 | $8.63 |
| SP28 · 14-pin 4-hole flange | 100 | $9.00 |
| SP28 · 16-pin 4-hole flange | 100 | $9.75 |
| SP28 · 19-pin 4-hole flange | 100 | $10.13 |
| SP28 · 22-pin 4-hole flange | 100 | $10.50 |
| SP28 · 24-pin 4-hole flange | 100 | $10.88 |
| SP28 · 26-pin 4-hole flange | 100 | $11.25 |
Specifications
| Electrical | |
|---|---|
| Ingress protection | IP68 |
| Rated current | 5–45 A |
| Rated voltage | 250–380 V |
| Contact plating | Copper |
| Mechanical | |
| Housing | PA66 |
| Mounting | 4-hole flange |
| Contacts | 2–26 pins |
| Identification | |
| Series | SP28 |
| Configuration | plug and socket set |
