In stock

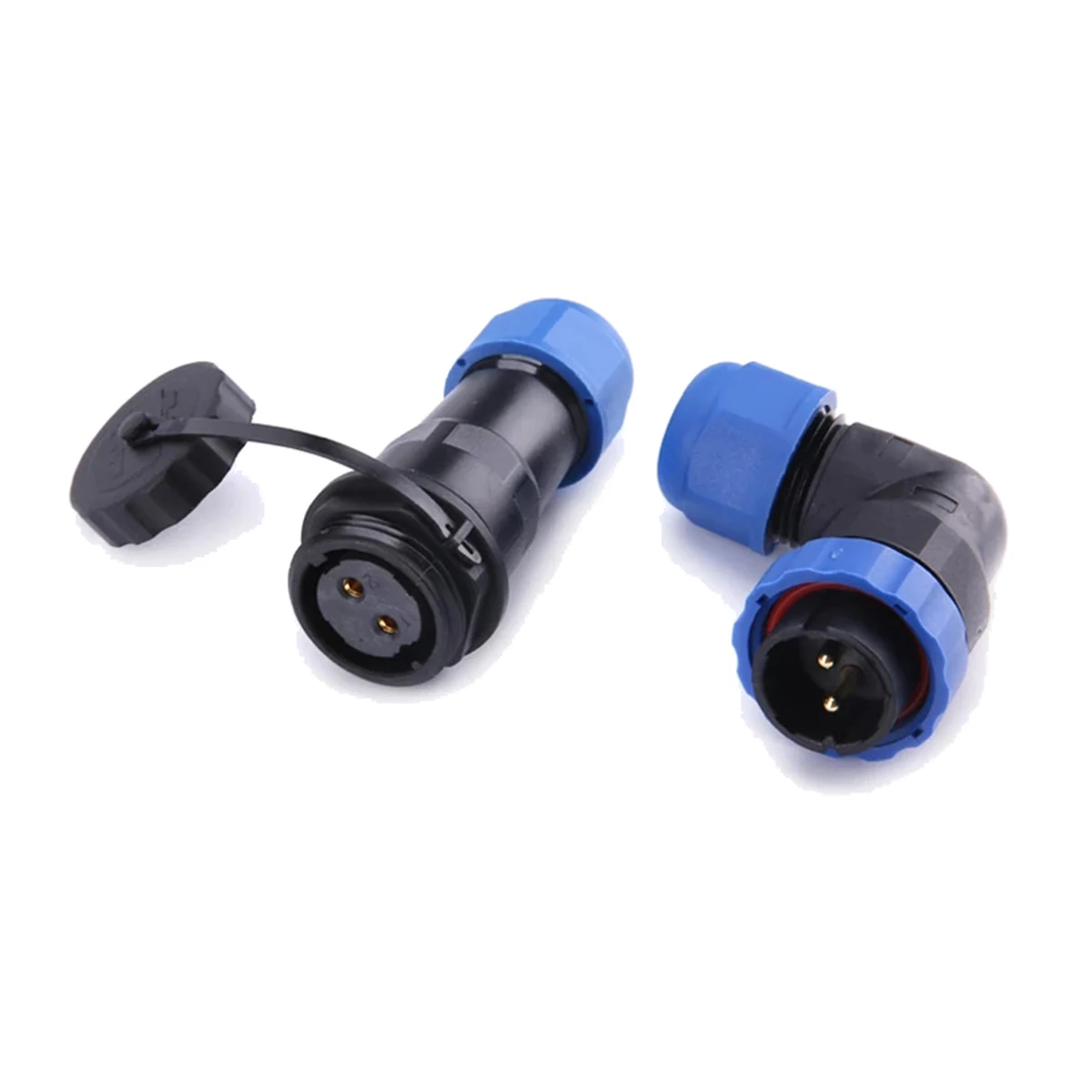

SP20-RA right-angle aviation connector — IP68
From $5.93from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts11 variants
SP20-RA is a sealed circular aviation connector with right-angle mounting. Offered in 11 contact counts from 1 to 14. IP68 sealed. Copper contacts. Priced per piece EXW from Yueqing, 50 pcs minimum per model.
| Configuration | Stock | EXW / pc |
|---|---|---|
| SP20W · 1-pin right-angle inline | 100 | $5.93 |
| SP20W · 2-pin right-angle inline | 100 | $6.19 |
| SP20W · 3-pin right-angle inline | 100 | $6.49 |
| SP20W · 4-pin right-angle inline | 100 | $6.83 |
| SP20W · 5-pin right-angle inline | 100 | $7.17 |
| SP20W · 6-pin right-angle inline | 100 | $7.32 |
| SP20W · 7-pin right-angle inline | 100 | $7.50 |
| SP20W · 9-pin right-angle inline | 100 | $7.88 |
| SP20W · 10-pin right-angle inline | 100 | $8.25 |
| SP20W · 12-pin right-angle inline | 100 | $8.44 |
| SP20W · 14-pin right-angle inline | 100 | $8.82 |
Specifications
| Electrical | |
|---|---|
| Ingress protection | IP68 |
| Rated current | 5–25 A |
| Rated voltage | 250–380 V |
| Contact plating | Copper |
| Mechanical | |
| Mounting | right-angle |
| Contacts | 1–14 pins |
| Identification | |
| Series | SP20 |
| Configuration | plug and socket set |
