In stock

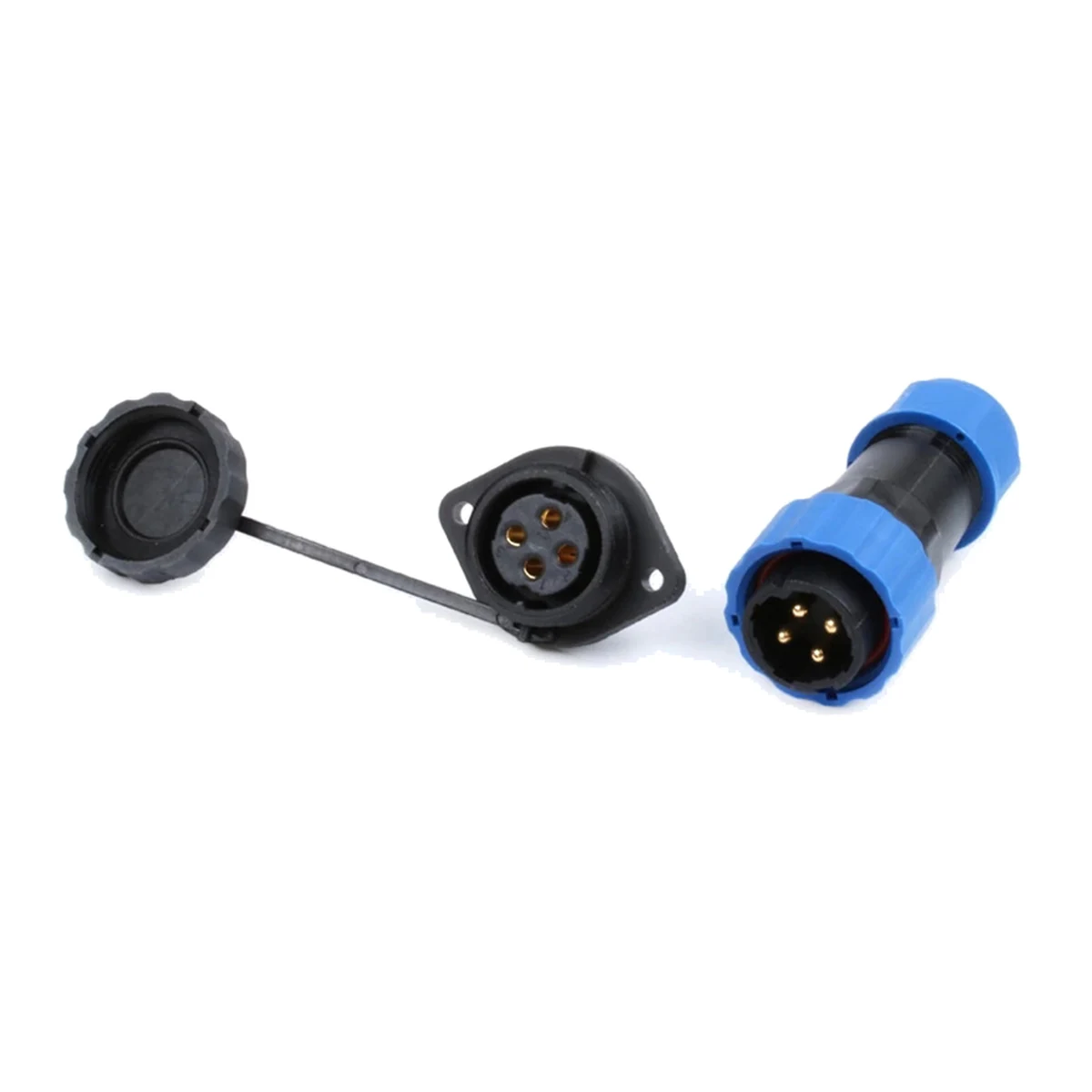

SP20-FL flange aviation connector — IP68
From $3.94from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts11 variants
SP20-FL is a sealed circular aviation connector with flange mounting. Offered in 11 contact counts from 1 to 14. IP68 sealed. PA66 housing. Copper contacts. Priced per piece EXW from Yueqing, 50 pcs minimum per model.
| Configuration | Stock | EXW / pc |
|---|---|---|
| SP20 · 1-pin flange | 100 | $3.94 |
| SP20 · 2-pin flange | 100 | $4.20 |
| SP20 · 3-pin flange | 100 | $4.65 |
| SP20 · 4-pin flange | 100 | $5.25 |
| SP20 · 5-pin flange | 100 | $5.55 |
| SP20 · 6-pin flange | 100 | $5.67 |
| SP20 · 7-pin flange | 100 | $5.78 |
| SP20 · 9-pin flange | 100 | $5.97 |
| SP20 · 10-pin flange | 100 | $6.00 |
| SP20 · 12-pin flange | 100 | $6.15 |
| SP20 · 14-pin flange | 100 | $6.72 |
Specifications
| Electrical | |
|---|---|
| Ingress protection | IP68 |
| Rated current | 5–25 A |
| Rated voltage | 250–380 V |
| Contact plating | Copper |
| Mechanical | |
| Housing | PA66 |
| Mounting | flange |
| Contacts | 1–14 pins |
| Identification | |
| Series | SP20 |
| Configuration | plug and socket set |
