In stock
MSD mini manual service switch, 350 A, without fuse
$36.75from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts1 variants

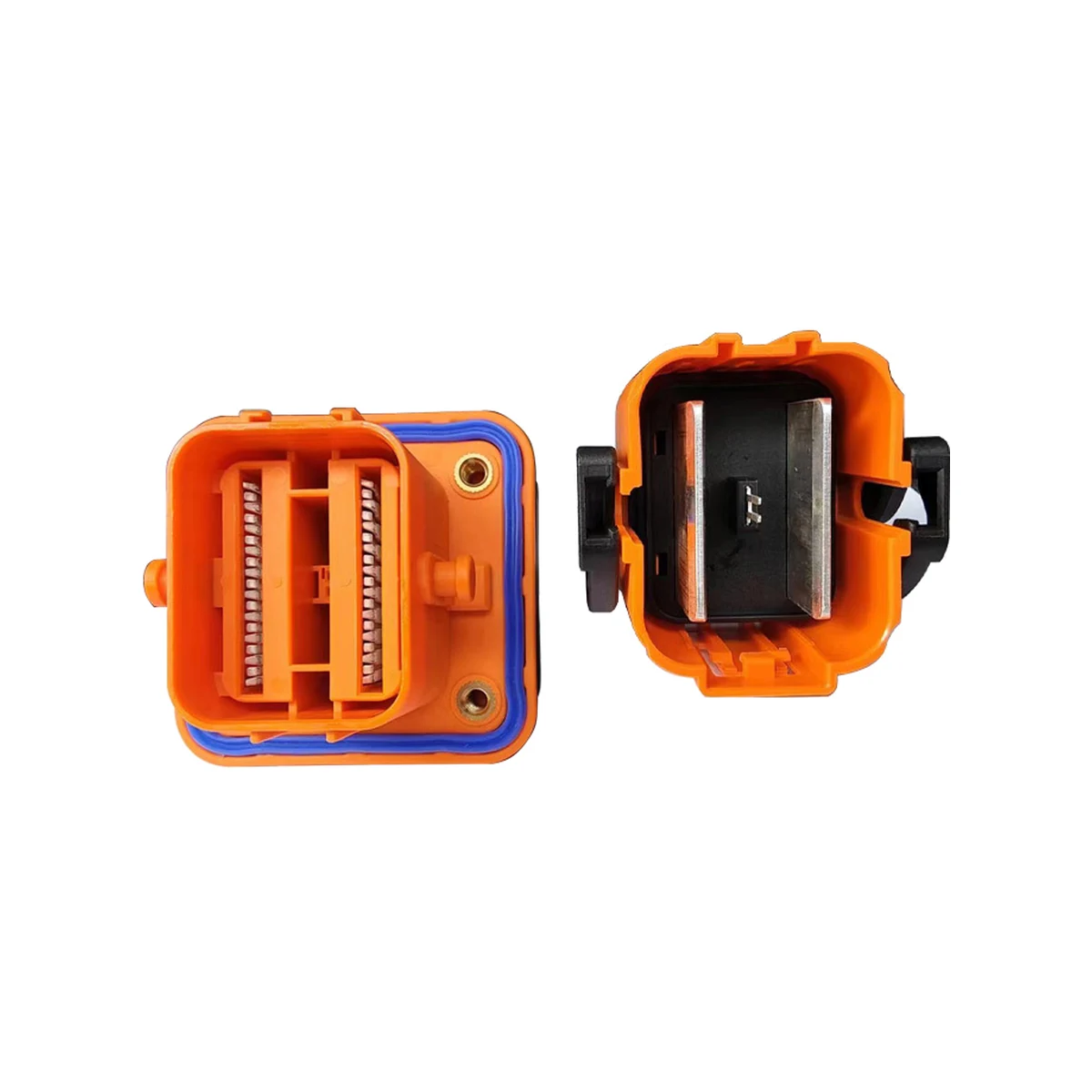

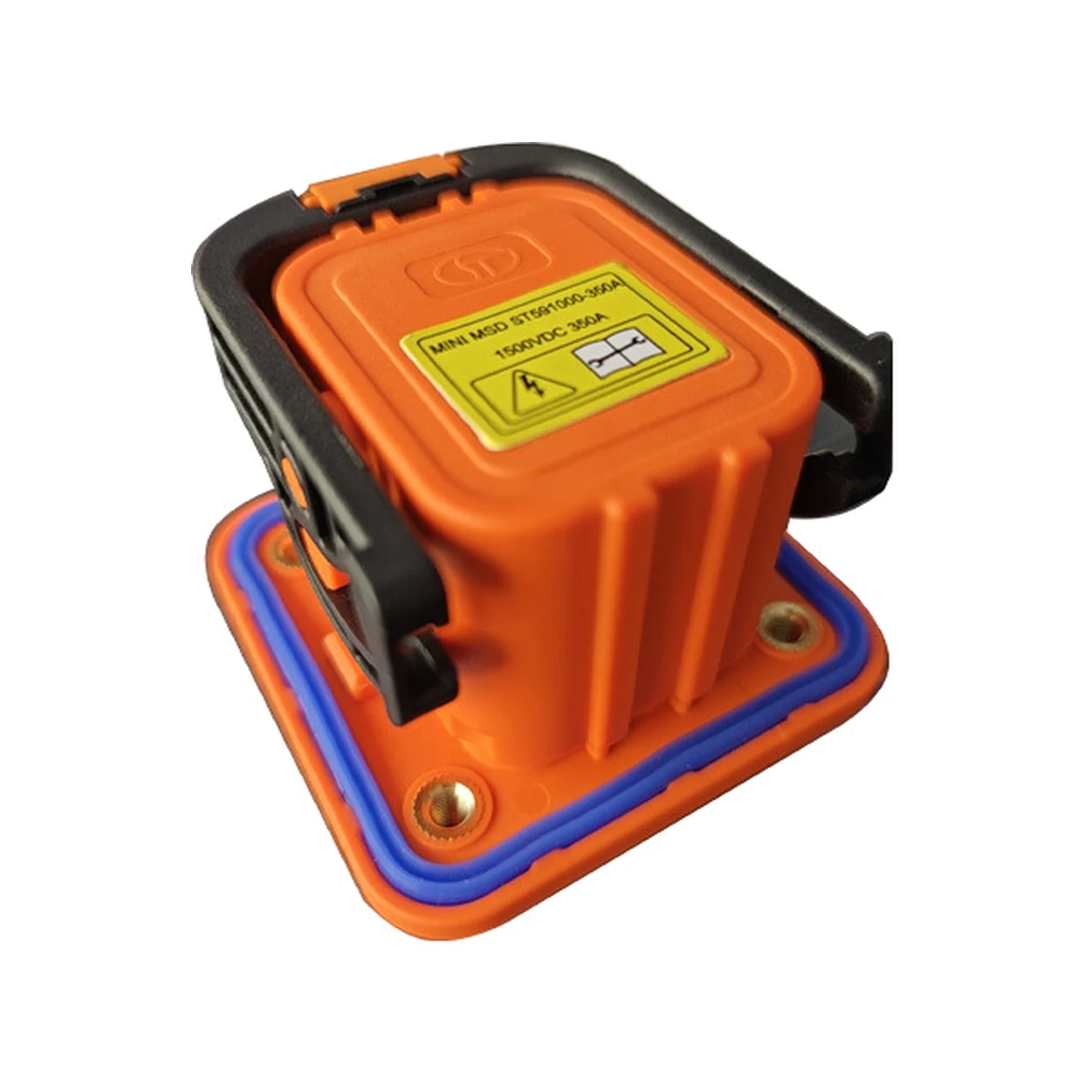

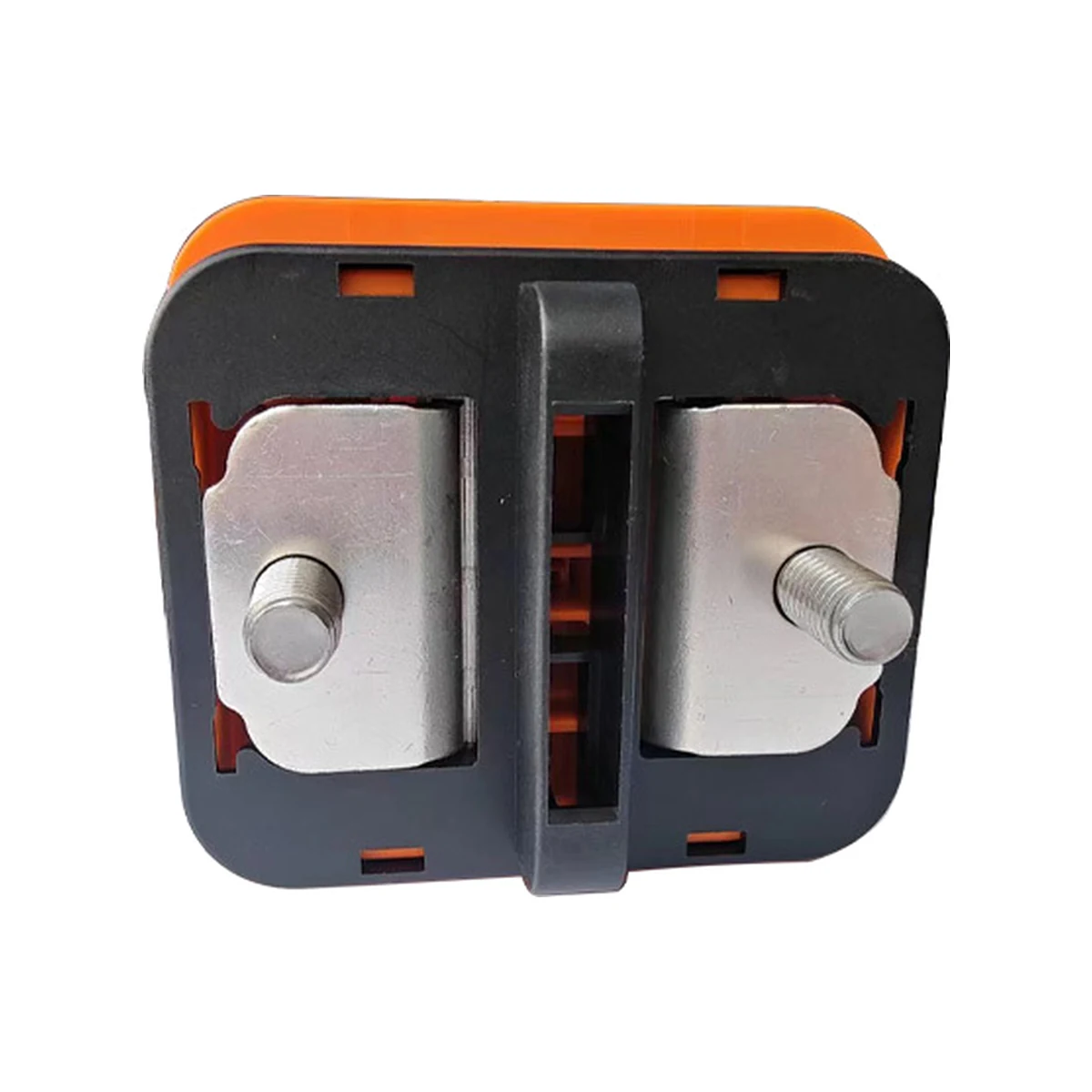

A compact manual service disconnect for EV battery packs. The lever breaks the high-voltage circuit for maintenance and reconnects with a positive detent, and the two-pin plug-in body sits inside the pack housing. Fuse-less version, rated 350 A.
| Configuration | Stock | EXW / pc |
|---|---|---|
| MSD switch · 350 A · without fuse | 100 | $36.75 |
Specifications
| Electrical | |
|---|---|
| Rated current | 350 A |
| Type | Manual service disconnect (MSD), without fuse |
| Pins | 2 |
| Mechanical | |
| Insulator | PA66 glass-filled nylon |
| Mounting | Direct plug-in |
| Sealing | IP67 |
| Operation | Lever with two-stage press-to-unlock interlock |
| Identification | |
| Ordering code | MNS 350A |
| Application | EV battery pack maintenance isolation |
| Rated voltage | Not published on the source listing — confirm on request |
