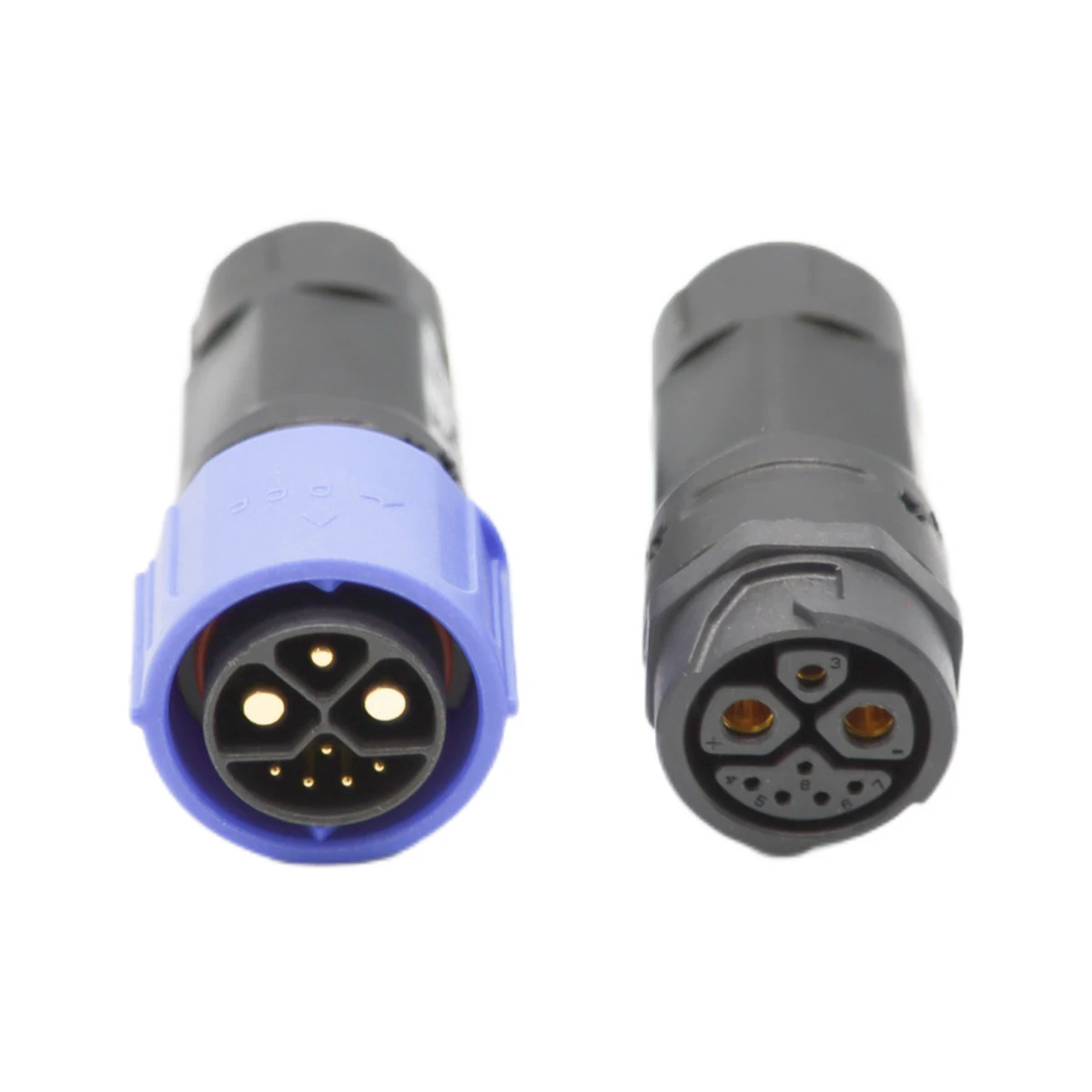

M25 quick-lock plug and socket — e-scooter, IP67, view 1 of 1
In stock

M25 quick-lock plug and socket — e-scooter, IP67

M25 · Connectors / Waterproof power connectors
$7.28USD / pc · EXWfrom 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts1 variants

M25 is a quick-lock plug and socket in the shop's M25 range. Used on e-scooter assemblies. IP67 sealed. Rated 20-50A continuous. UL94-V0 flame rating. Shipped EXW from Yueqing, 50 pcs minimum per model.

Variants
ConfigurationStockEXW / pc
Standard9,960$7.28
Request a quoteBack to catalog

Specifications

Model M25
Electrical
Rated current20-50A
Ingress protectionIP67
Flame ratingUL94-V0
Contact plating黄铜镀3U金
Mechanical
Mountingquick-lock, assembled
Operating temperature-40°至80°
Identification
SeriesM25
Ordering codeWNRE-M25-ZZS-FM
Applicatione-scooter
