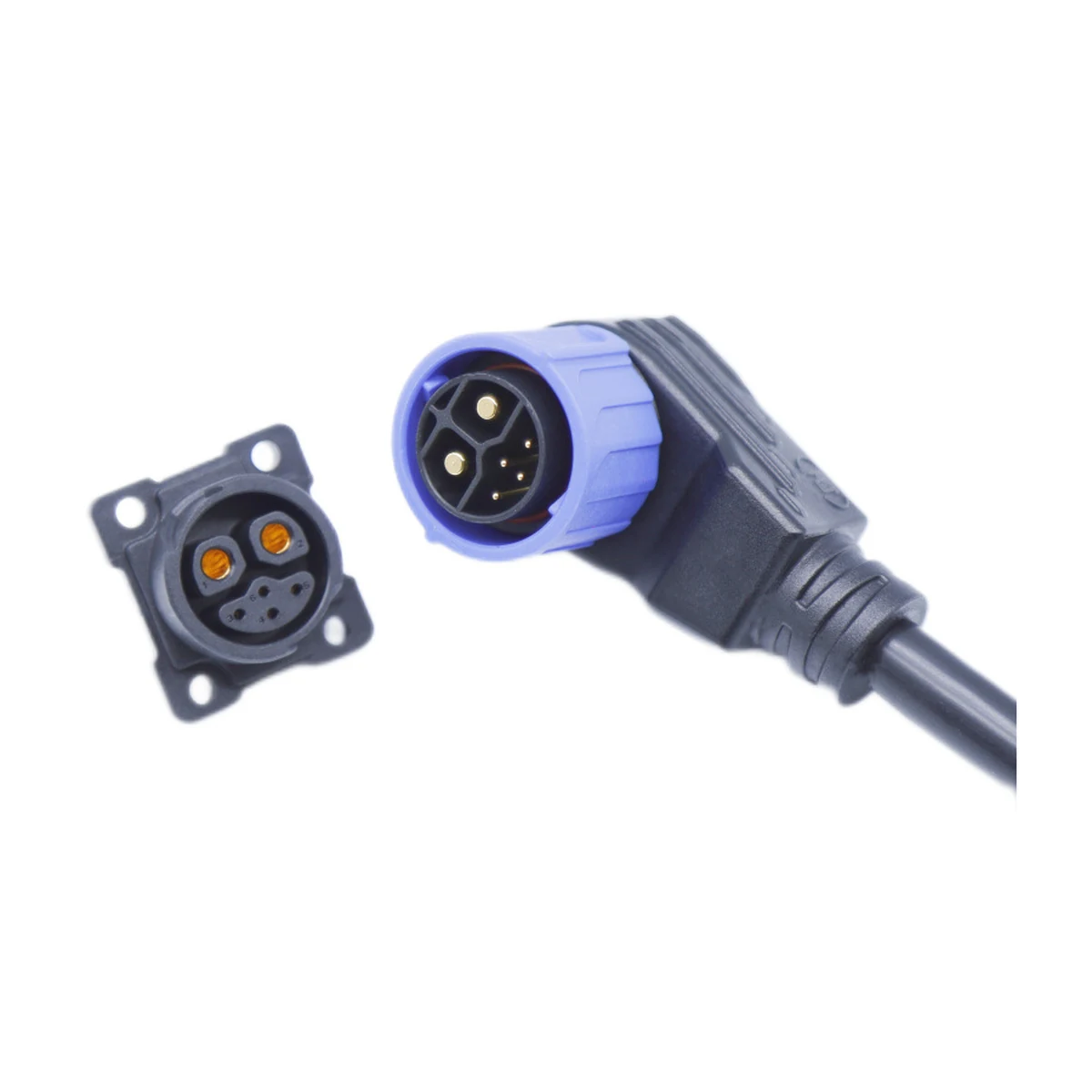

M25 2+4 quick-lock — e-bike, IP67, view 1 of 1
In stock

M25 2+4 quick-lock — e-bike, IP67

M25 2+4 · Connectors / Energy storage connectors
$8.43USD / pc · EXWfrom 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts1 variants

M25 2+4 is a quick-lock in the shop's M25 range. Used on e-bike assemblies. IP67 sealed. Rated 20-50A continuous. UL94-V0 flame rating. Shipped EXW from Yueqing, 50 pcs minimum per model.

Variants
ConfigurationStockEXW / pc
Standard6,069$8.43
Request a quoteBack to catalog

Specifications

Model M25 2+4
Electrical
Rated current20-50A
Ingress protectionIP67
Flame ratingUL94-V0
Contact plating黄铜镀3U金
Mechanical
Housing materialPA66+TPU
Mountingquick-lock, right-angle
Identification
SeriesM25
Applicatione-bike
