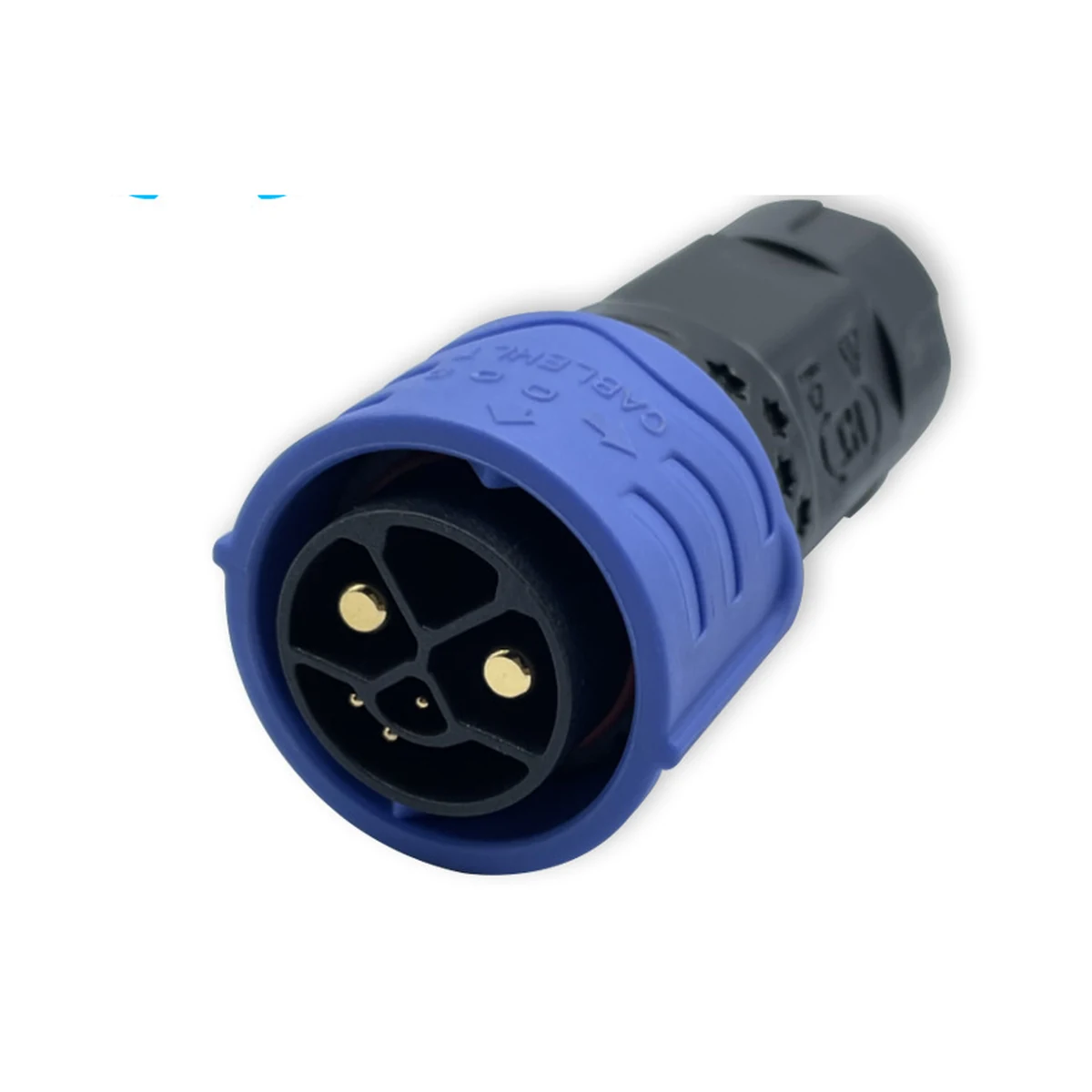

M25 2+0+3 quick-lock plug — battery-swap, IP67, view 1 of 1
In stock

M25 2+0+3 quick-lock plug — battery-swap, IP67

M25 2+0+3 · Connectors / Energy storage connectors
$6.23USD / pc · EXWfrom 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts1 variants

M25 2+0+3 is a quick-lock plug in the shop's M25 range. Used on battery-swap assemblies. IP67 sealed. Rated 20-50A continuous. UL94-V0 flame rating. Shipped EXW from Yueqing, 50 pcs minimum per model.

Variants
ConfigurationStockEXW / pc
Standard9,900$6.23
Request a quoteBack to catalog

Specifications

Model M25 2+0+3
Electrical
Rated current20-50A
Ingress protectionIP67
Flame ratingUL94-V0
Contact plating黄铜镀3U金
Mechanical
Housing material尼龙
Mountingquick-lock
Contacts6p
Operating temperature-40-+120
Identification
SeriesM25
Applicationbattery-swap
