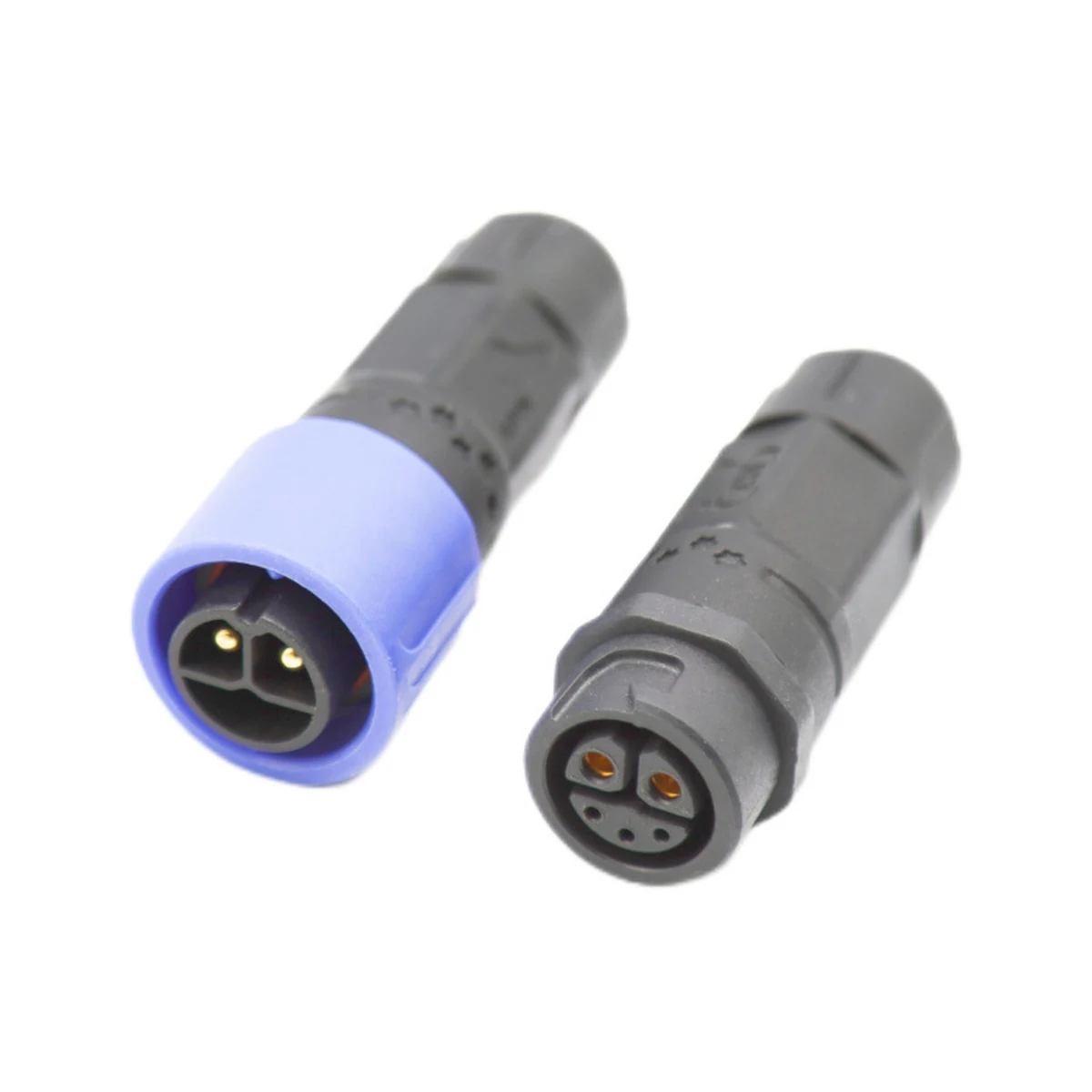

M20 quick-lock plug and socket — e-scooter, IP67, view 1 of 1
In stock

M20 quick-lock plug and socket — e-scooter, IP67

M20 · Connectors / Waterproof power connectors
From $4.32USD / pc · EXWfrom 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts2 variants

M20 is a quick-lock plug and socket in the shop's M20 range. Used on e-scooter assemblies. IP67 sealed. Rated 20-30A continuous. UL94-V0 flame rating. Shipped EXW from Yueqing, 50 pcs minimum per model.

Variants
ConfigurationStockEXW / pc
M20 2+3 组装式公头9,996$4.32
M20 2+3组装式 母头9,998$4.61
Request a quoteBack to catalog

Specifications

Model M20
Electrical
Rated current20-30A
Ingress protectionIP67
Flame ratingUL94-V0
Contact plating黄铜镀3U金
Mechanical
Mountingquick-lock, assembled
Operating temperature-20℃~+80℃
Identification
SeriesM20
Ordering codeWNRE-M20-ZZS-FM
Applicatione-scooter
