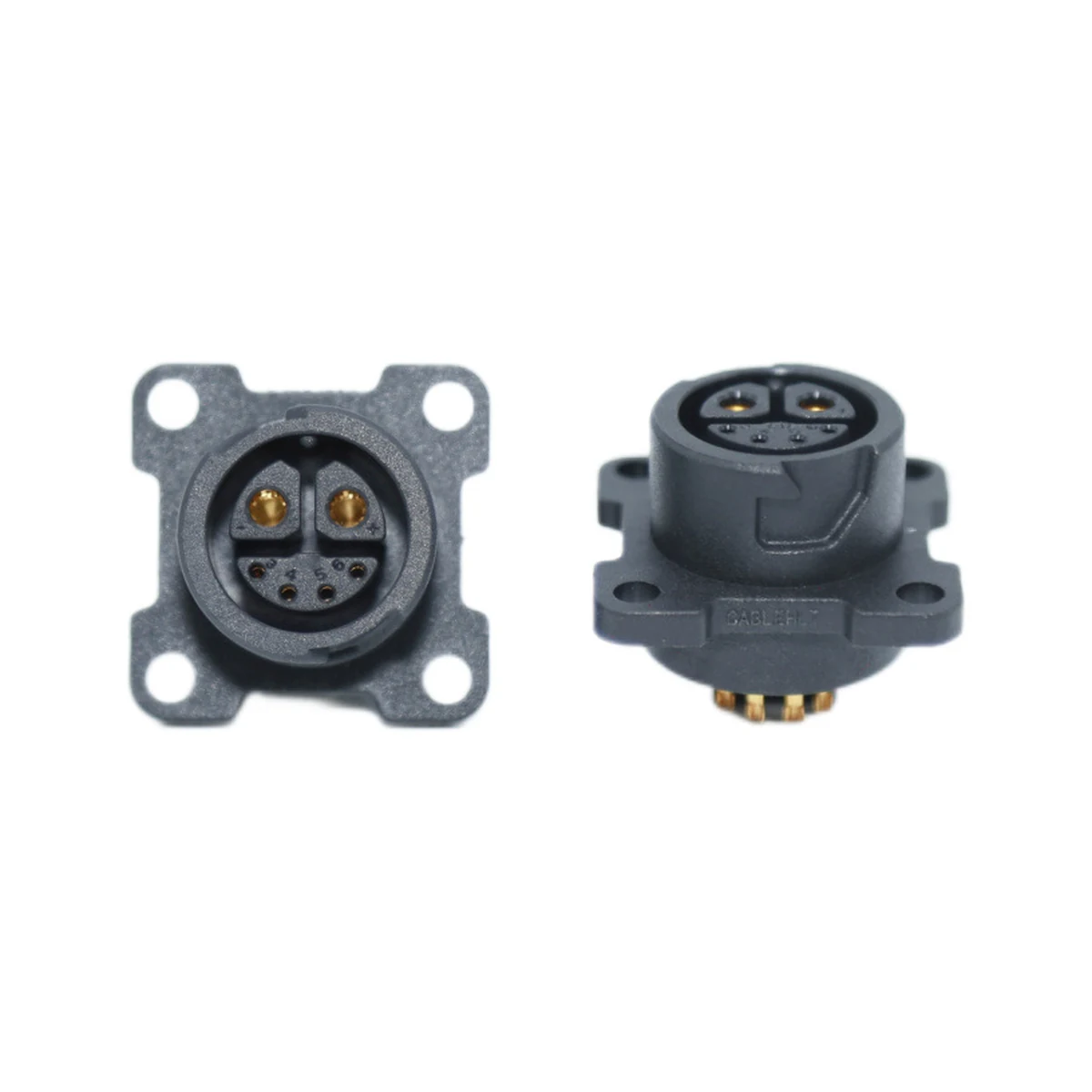

M20 2+4 socket — battery-swap, IP67, view 1 of 1
In stock

M20 2+4 socket — battery-swap, IP67

M20 2+4 · Connectors / Energy storage connectors
$3.10USD / pc · EXWfrom 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts1 variants

M20 2+4 is a socket in the shop's M20 range. Used on battery-swap assemblies. IP67 sealed. Rated 20-30A continuous. UL94-V0 flame rating. Shipped EXW from Yueqing, 50 pcs minimum per model.

Variants
ConfigurationStockEXW / pc
Standard8,724$3.10
Request a quoteBack to catalog

Specifications

Model M20 2+4
Electrical
Rated current20-30A
Ingress protectionIP67
Flame ratingUL94-V0
Contact plating黄铜镀3U金
Mechanical
Operating temperature-20℃~+80℃
Identification
SeriesM20
Applicationbattery-swap
