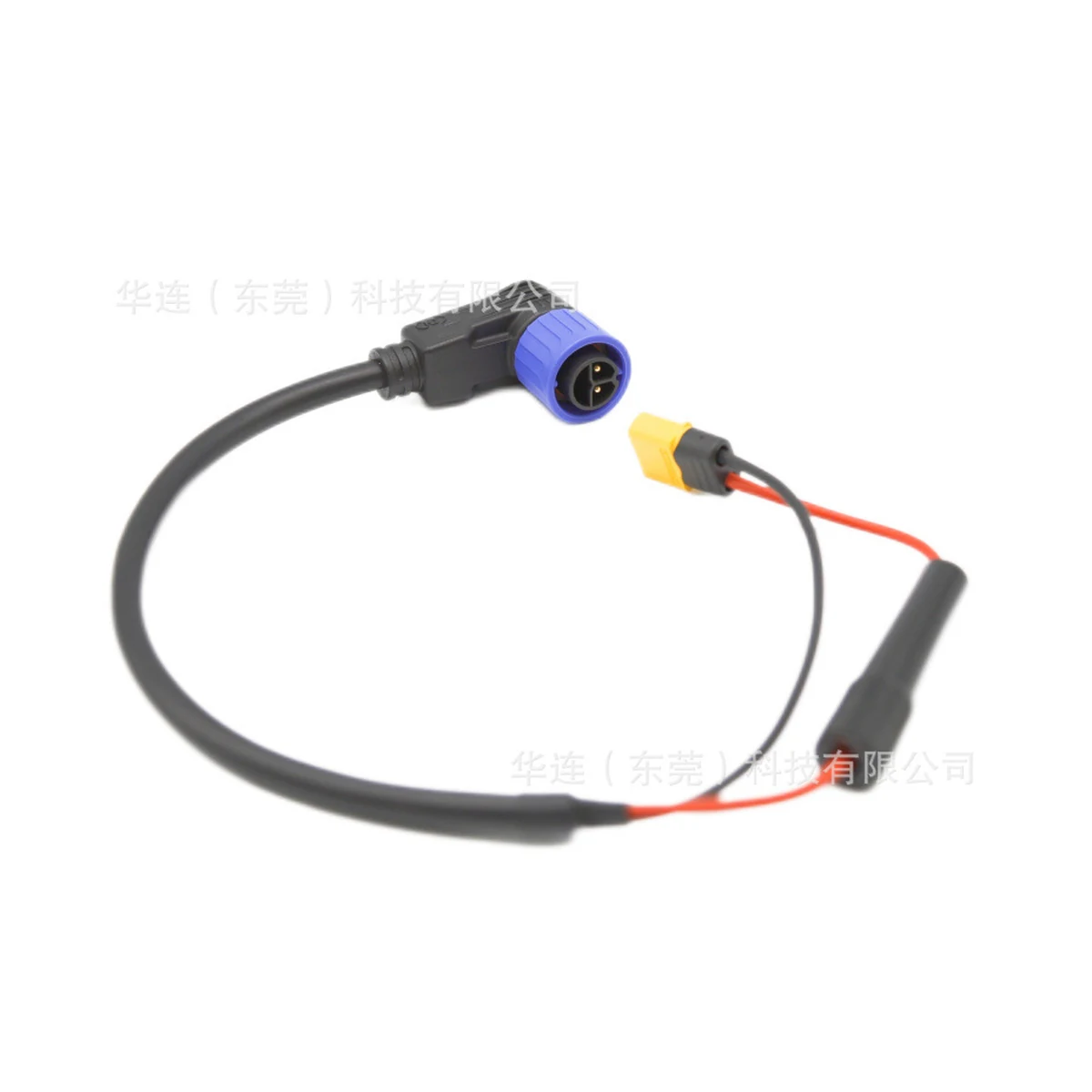

M20 2+0 quick-lock plug — e-bike, IP67, view 1 of 1
In stock

M20 2+0 quick-lock plug — e-bike, IP67

M20 2+0 · Connectors / Waterproof power connectors
$10.95USD / pc · EXWfrom 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts1 variants

M20 2+0 is a quick-lock plug in the shop's M20 range. Used on e-bike assemblies. IP67 sealed. Rated 20-50A continuous. UL94-V0 flame rating. Shipped EXW from Yueqing, 50 pcs minimum per model.

Variants
ConfigurationStockEXW / pc
Standard9,600$10.95
Request a quoteBack to catalog

Specifications

Model M20 2+0
Electrical
Rated current20-50A
Ingress protectionIP67
Flame ratingUL94-V0
Contact plating黄铜镀3U金
Mechanical
Mountingquick-lock, right-angle
Operating temperature-40°至120°
Identification
SeriesM20
Ordering code/
Applicatione-bike
