In stock
Gold-plated 6-pin plug connector, 5 A
From $1.13from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts3 variants

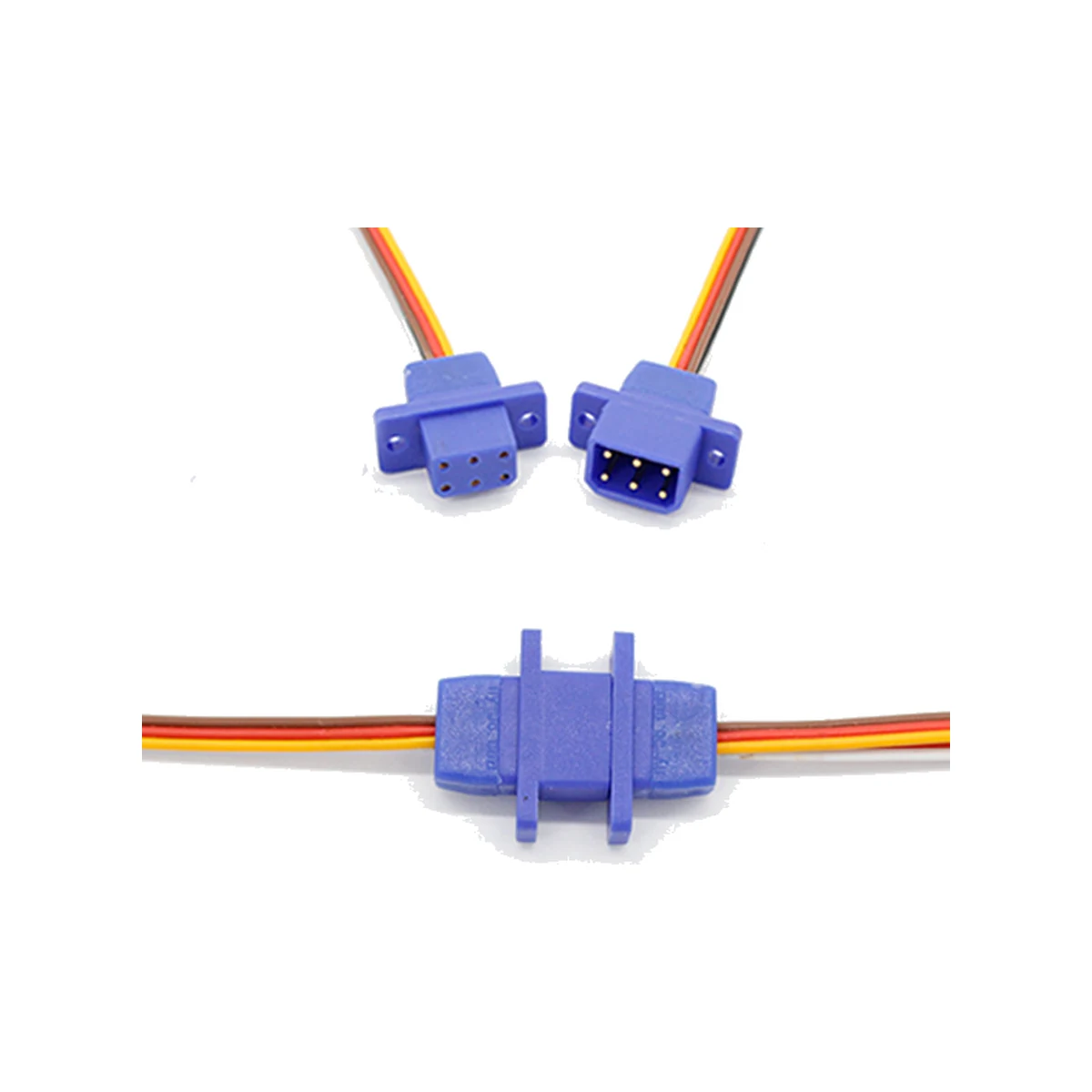

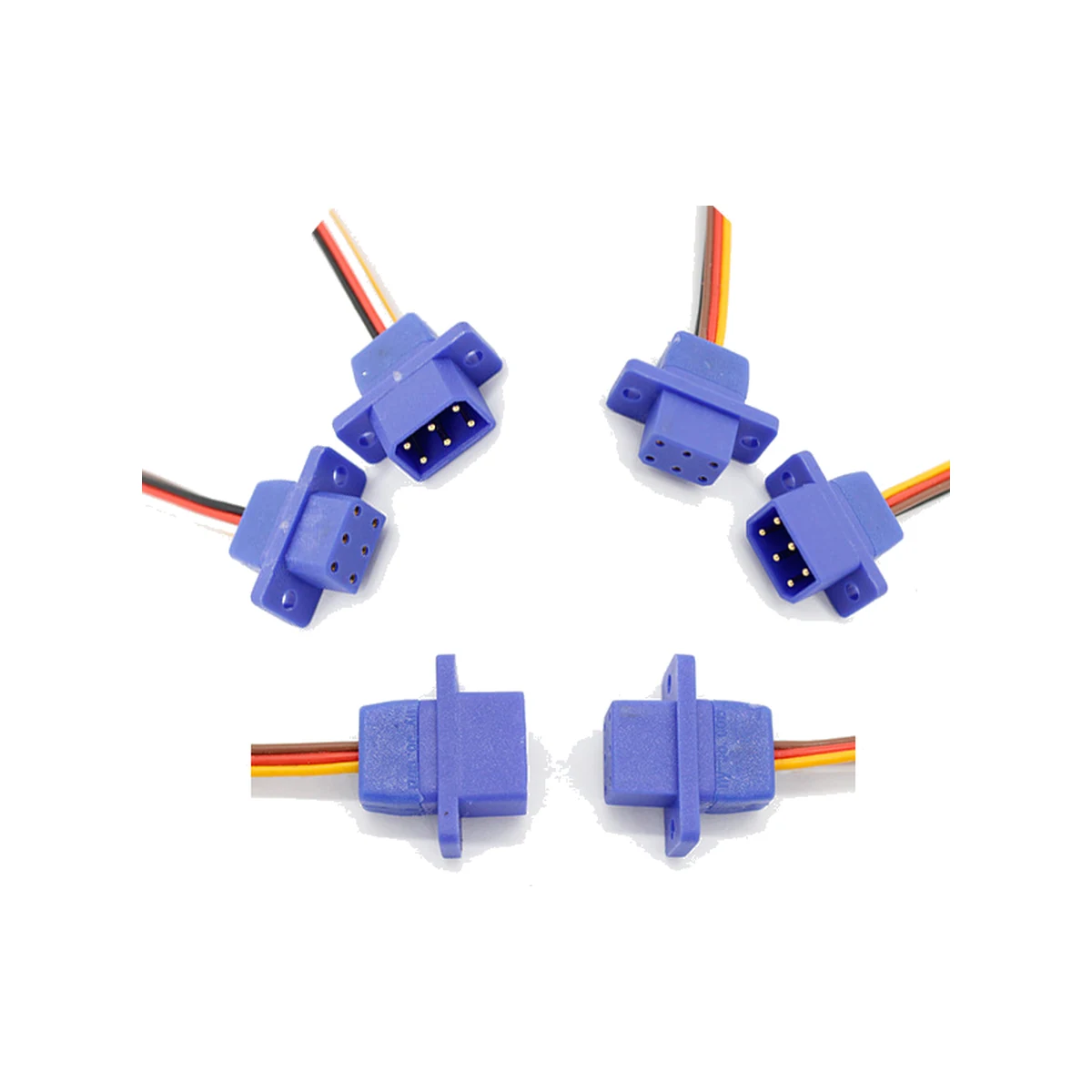

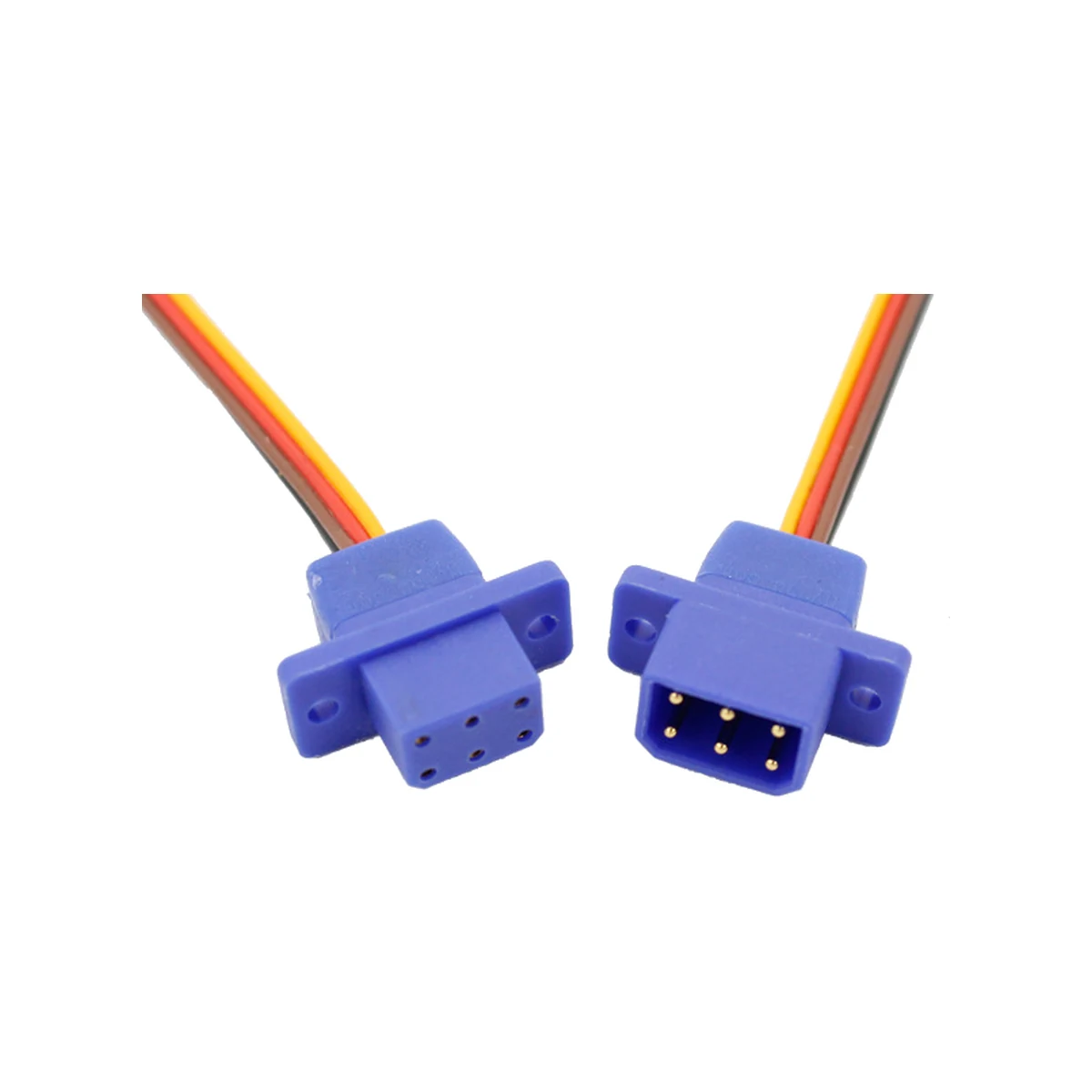

Six gold-plated brass contacts in a compact flange housing, rated 5 A over 12–72 V, with solder termination. A signal and low-power lead connector for RC receivers, servos and switch harnesses. Supplied as male housing with female sockets, female housing with male pins, or as a matched pair.
| Configuration | Stock | EXW / pc |
|---|---|---|
| Male + female set | 7,980 | $2.67 |
| Female housing, male pins | 10,000 | $1.13 |
| Male housing, female sockets | 9,990 | $1.54 |
Specifications
| Electrical | |
|---|---|
| Rated current | 5 A |
| Rated voltage | 12–72 V |
| Contacts | 6 |
| Contact material | Gold-plated brass |
| Termination | Solder |
| Mechanical | |
| Insulator | PA nylon |
| Mounting | Flange with fixing holes |
| Rows | 2 |
| Identification | |
| Series | JY-6P |
| Ordering code | 2019051274 / 2019051275 / 2019051276 |
| Unit weight | 15 g |
| Application | RC models — signal and low-power leads |
