In stock
Gold-plated 12-pin plug connector, panel mount
From $1.80from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts3 variants

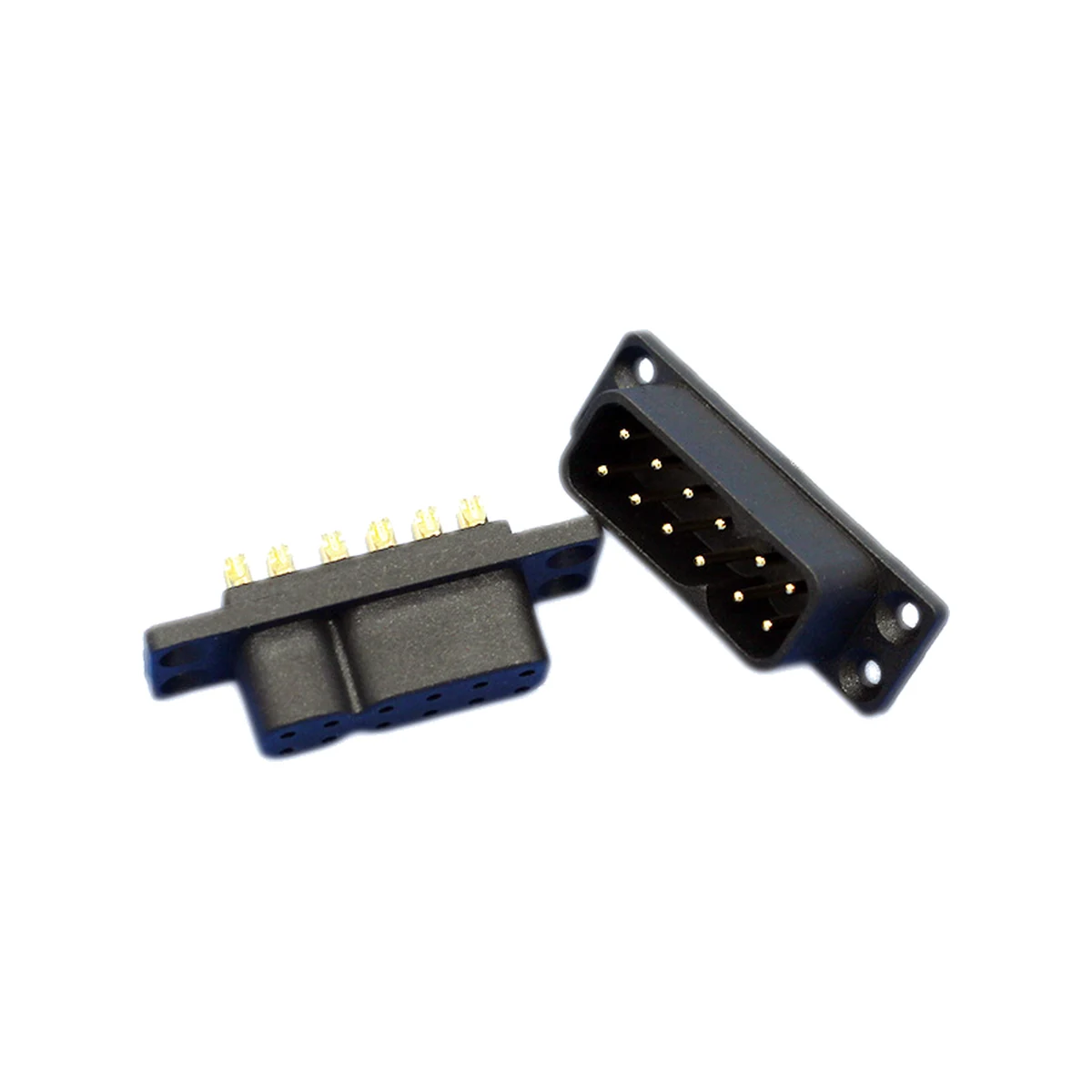

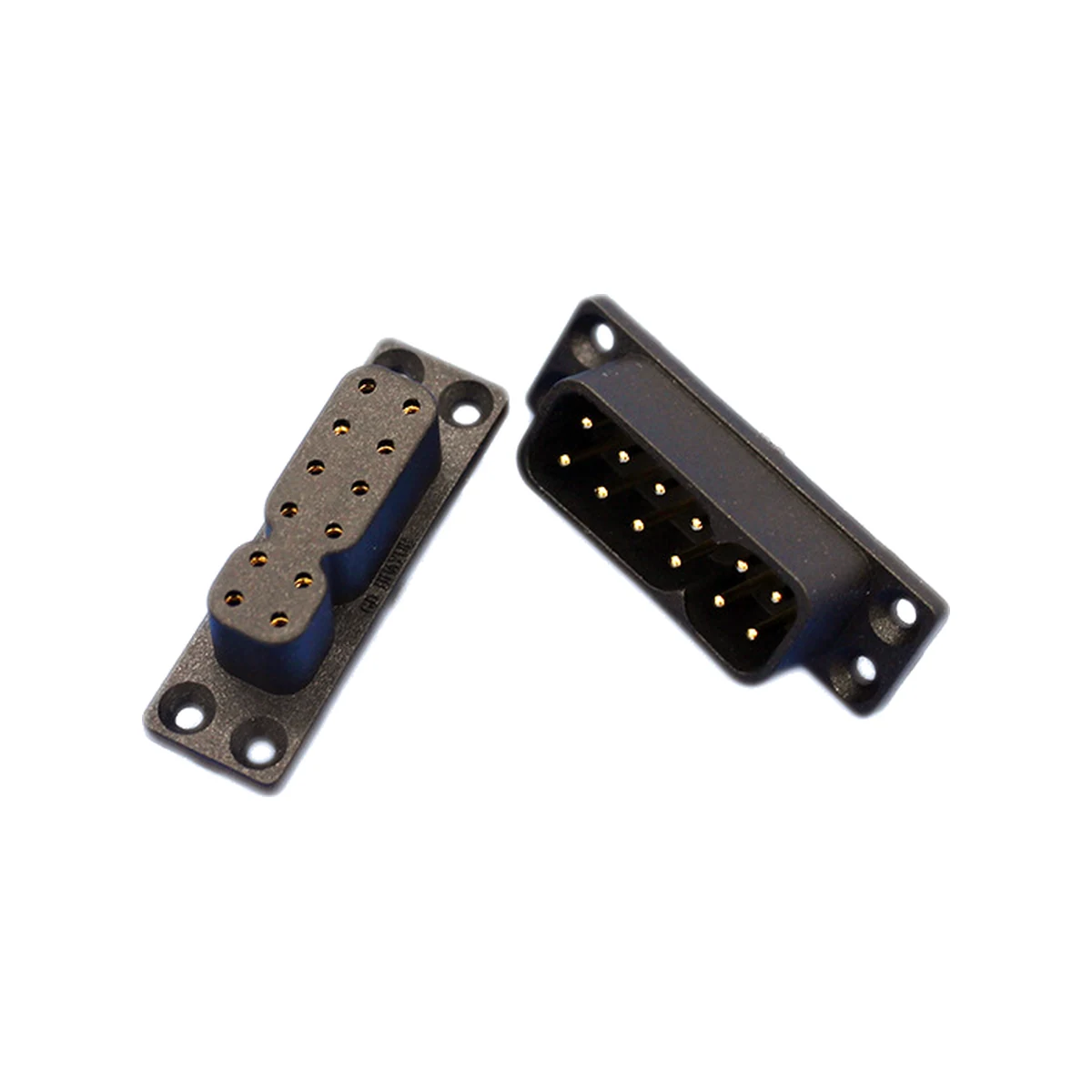

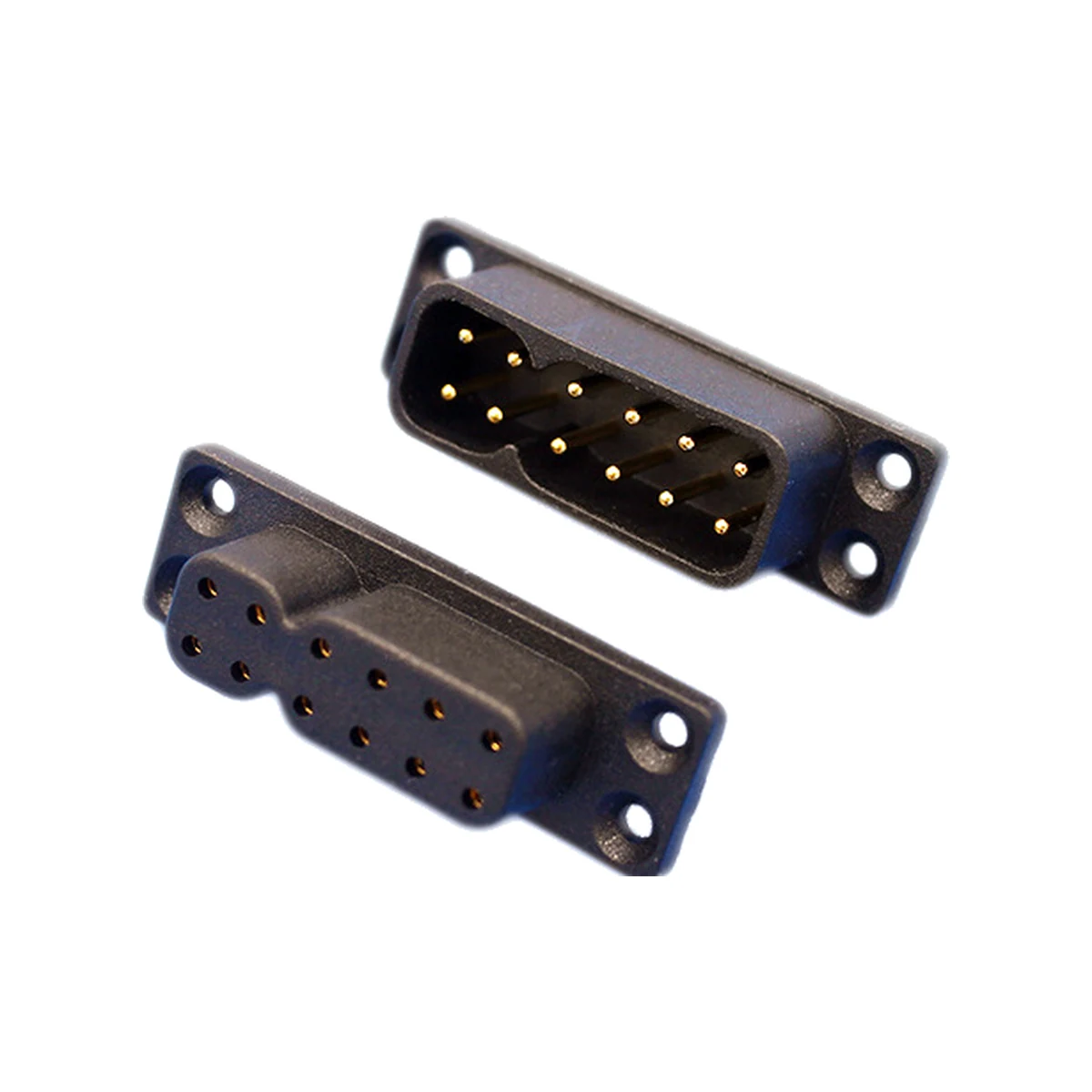

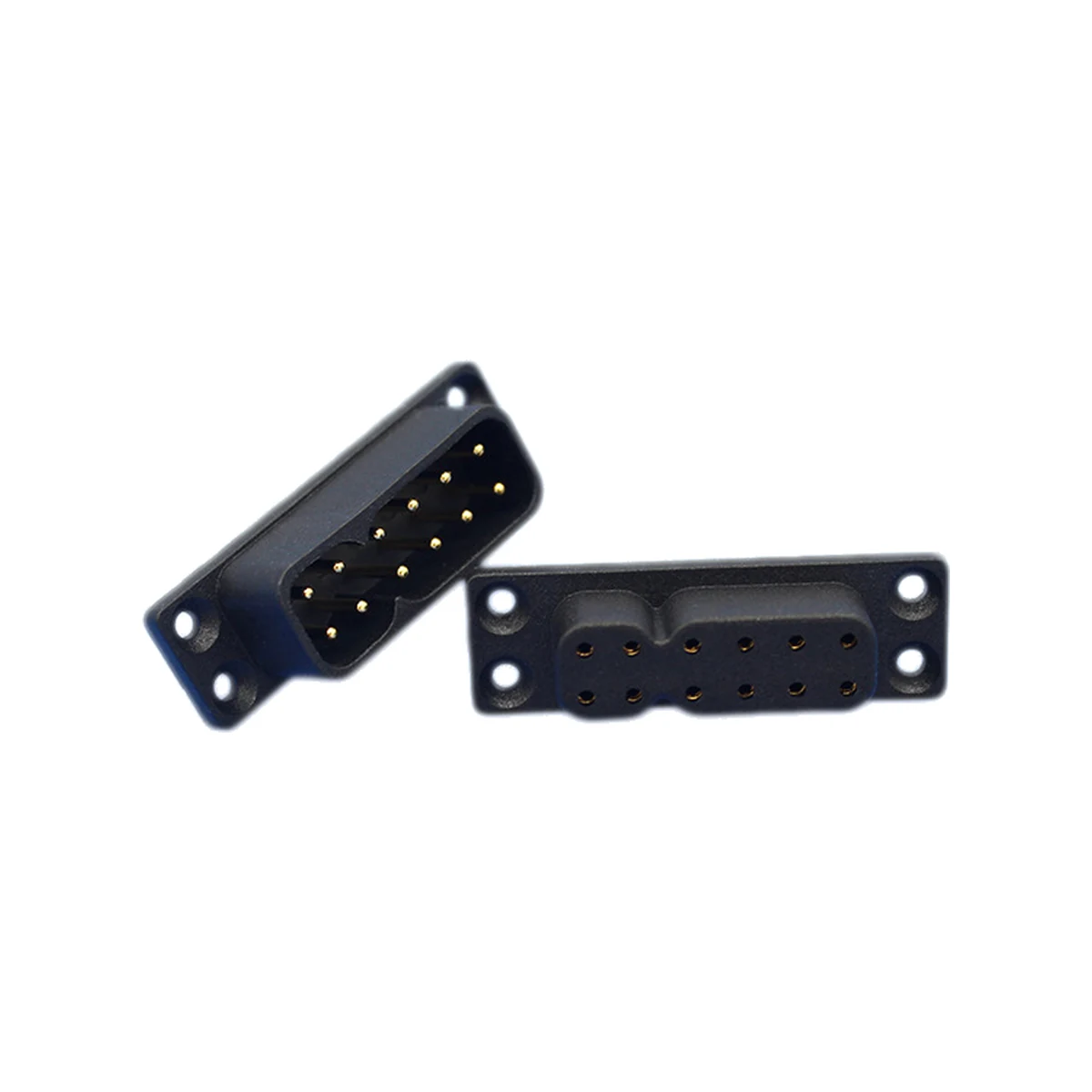

Twelve contacts in a two-row D-sub layout, gold-plated over copper with crown-spring sockets, on a 3 mm pitch and a panel-mount flange. Built for wing and battery links that get unplugged often. Supplied as male housing with female sockets, female housing with male pins, or as a matched pair.
| Configuration | Stock | EXW / pc |
|---|---|---|
| Male + female set | 8,737 | $4.39 |
| Female housing, male pins | 9,950 | $1.80 |
| Male housing, female sockets | 9,994 | $2.63 |
Specifications
| Electrical | |
|---|---|
| Contacts | 12, in two rows |
| Contact material | Gold-plated copper |
| Contact style | Pin and crown spring |
| Termination | Solder |
| Mechanical | |
| Pitch | 3 mm |
| Mounting | Panel mount, flange with four fixing holes |
| Ingress protection | IP60 |
| Identification | |
| Series | JY |
| Ordering code | HY2022111201 / HY2022111202 / HY2022111203 |
| Unit weight | 40 g |
| Application | RC models — wing and battery links |
