In stock
Gold-plated high-current plug connector, 3+6 contact set
From $1.95100 pcs minimum for this part. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts3 variants

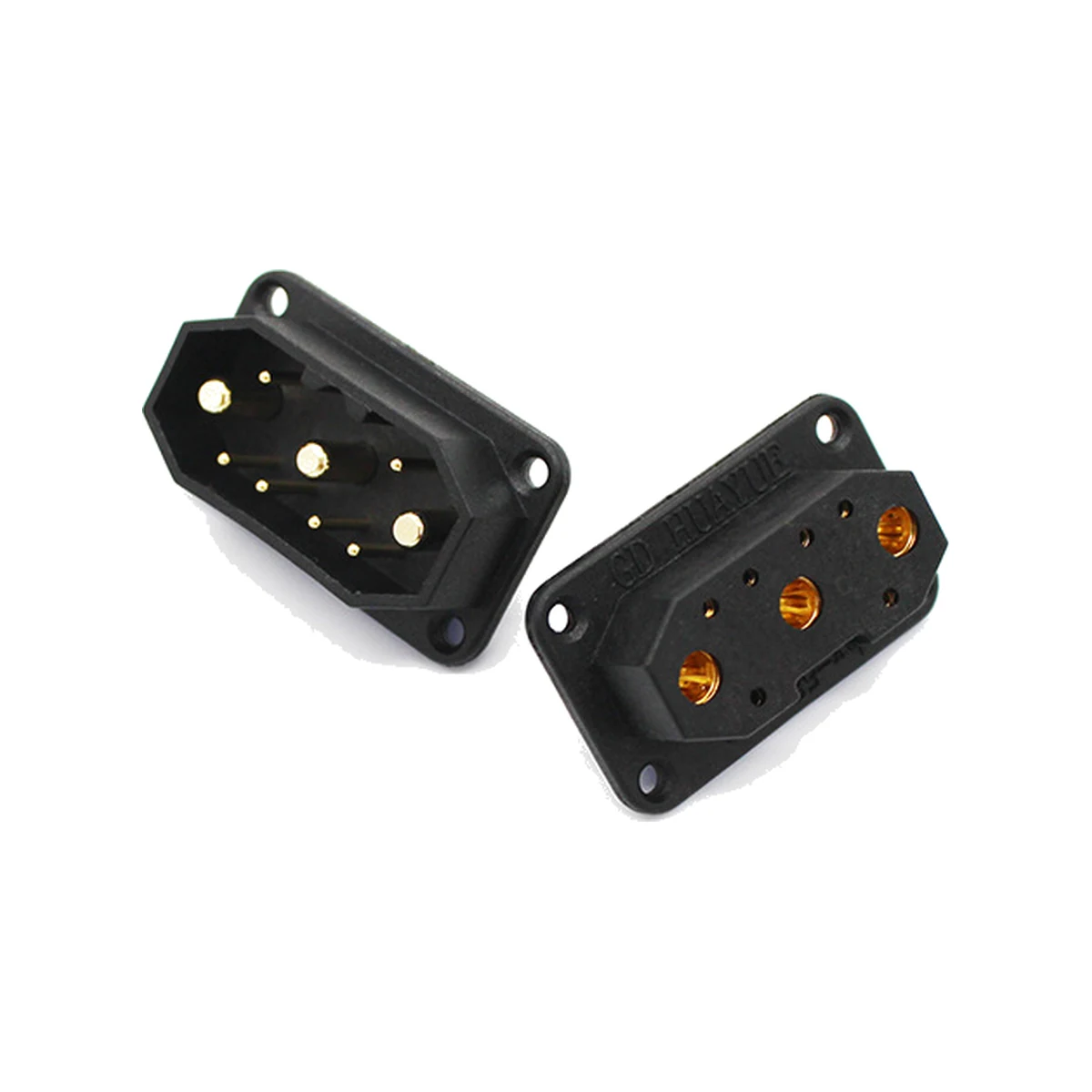

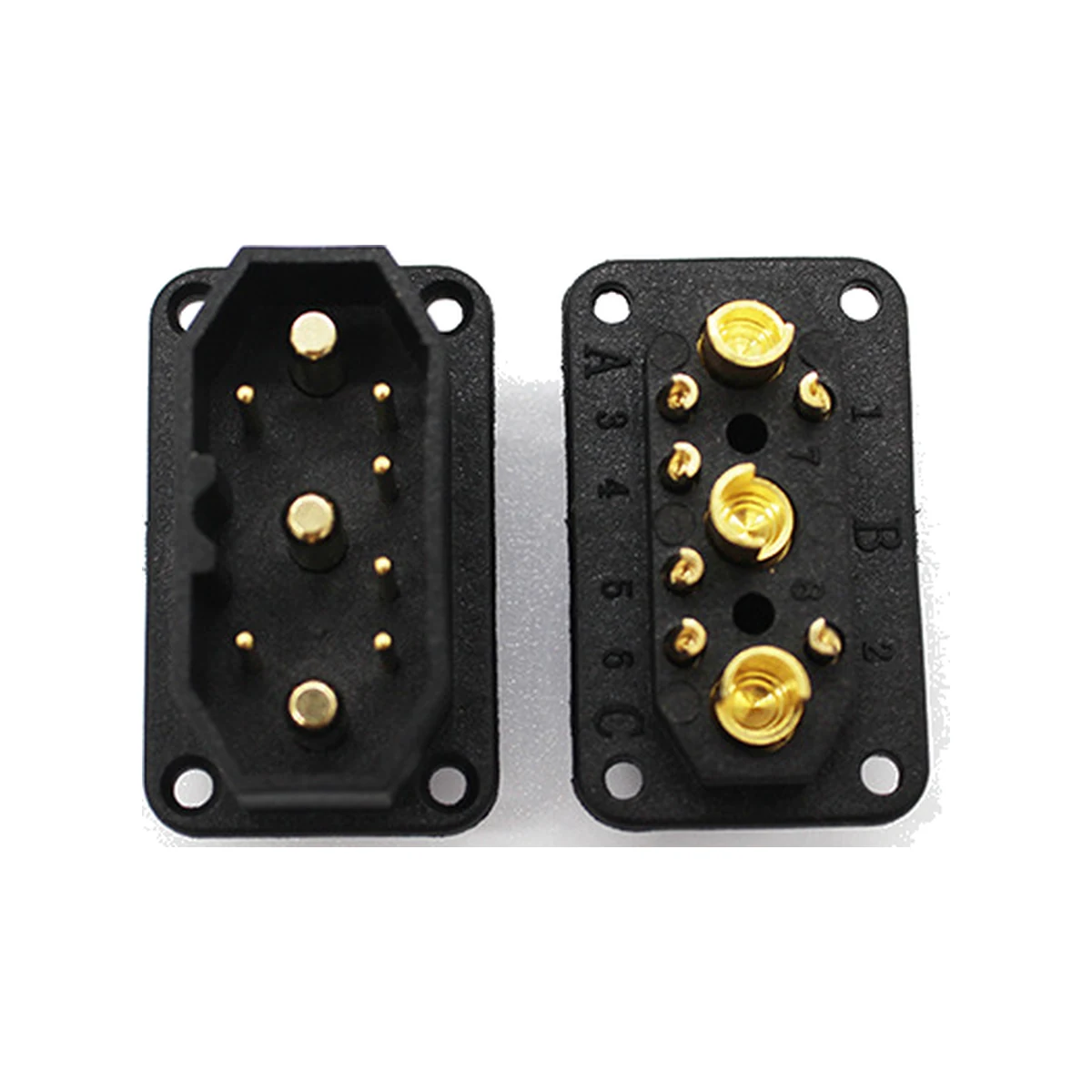

A 3+6 contact set: three heavy power contacts and six signal pins in a board-to-wire, three-row layout on a 3 mm pitch, gold-plated over brass with solder termination. Flange-mounted and rated IP40, for wing, ESC and charger harnesses on RC airframes.
| Configuration | Stock | EXW / pc |
|---|---|---|
| Male + female set | 28,804 | $4.73 |
| Female housing, male pins | 29,800 | $1.95 |
| Male housing, female sockets | 30,000 | $2.78 |
Specifications
| Electrical | |
|---|---|
| Contacts | 9 total — 3 power + 6 signal |
| Contact material | Gold-plated brass |
| Termination | Solder |
| Mechanical | |
| Pitch | 3 mm |
| Rows | 3 |
| Linking | Board-to-wire |
| Mounting | Flange with fixing holes |
| Ingress protection | IP40 |
| Identification | |
| Series | HY3+6 |
| Ordering code | HY202210243601 / HY202210243602 / HY202210243603 |
| Unit weight | 10 g |
| Application | RC models — wing, ESC and charger harnesses |
