In stock

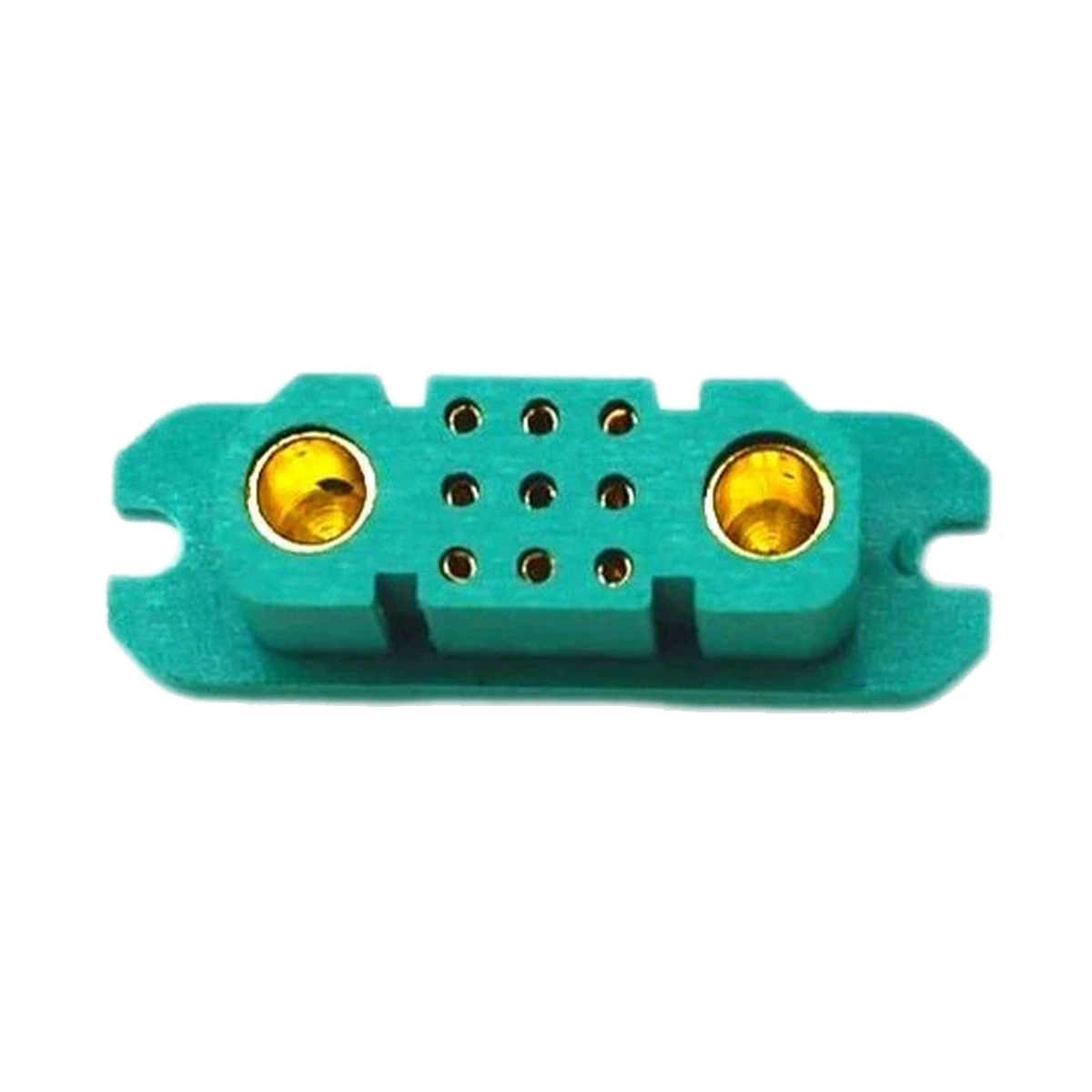

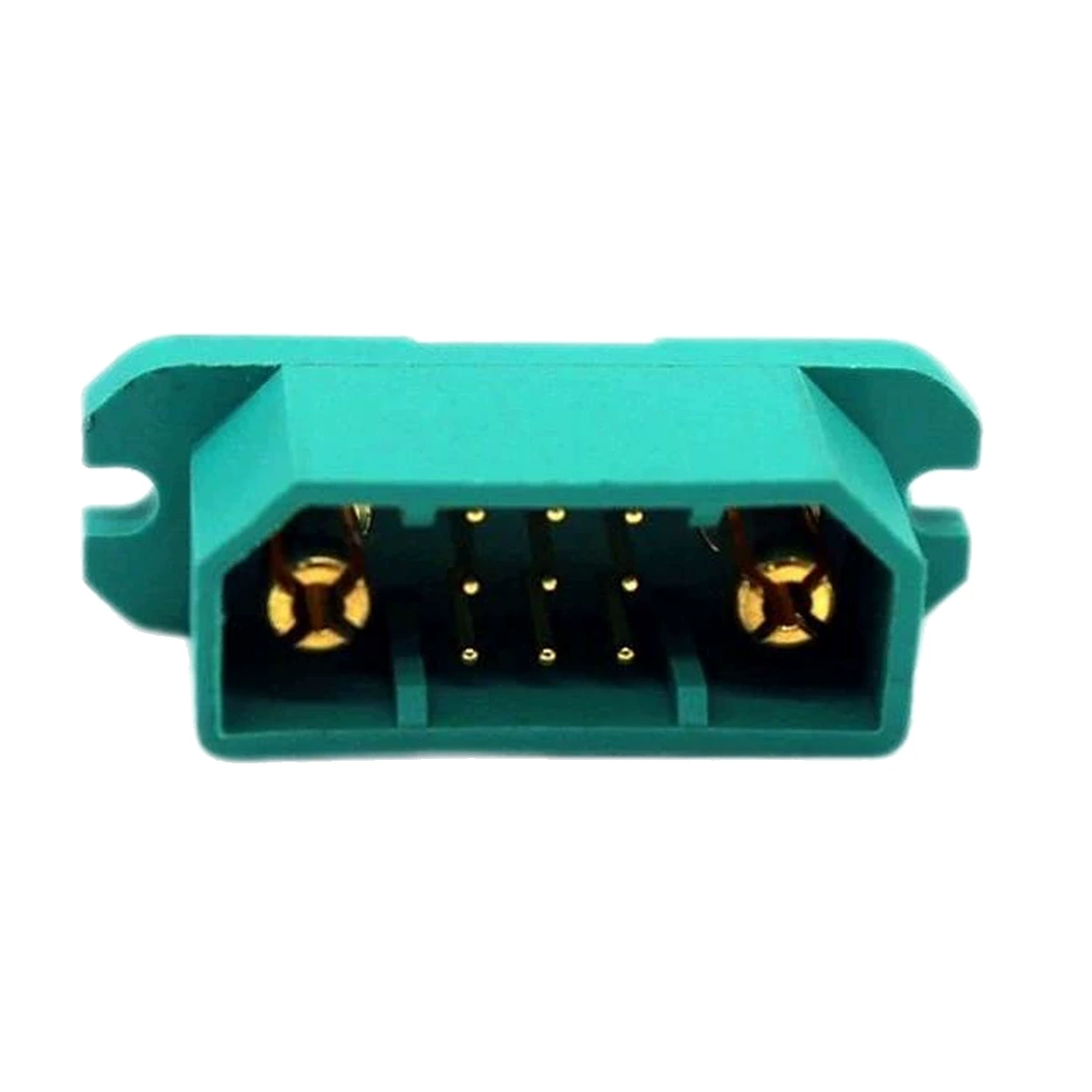

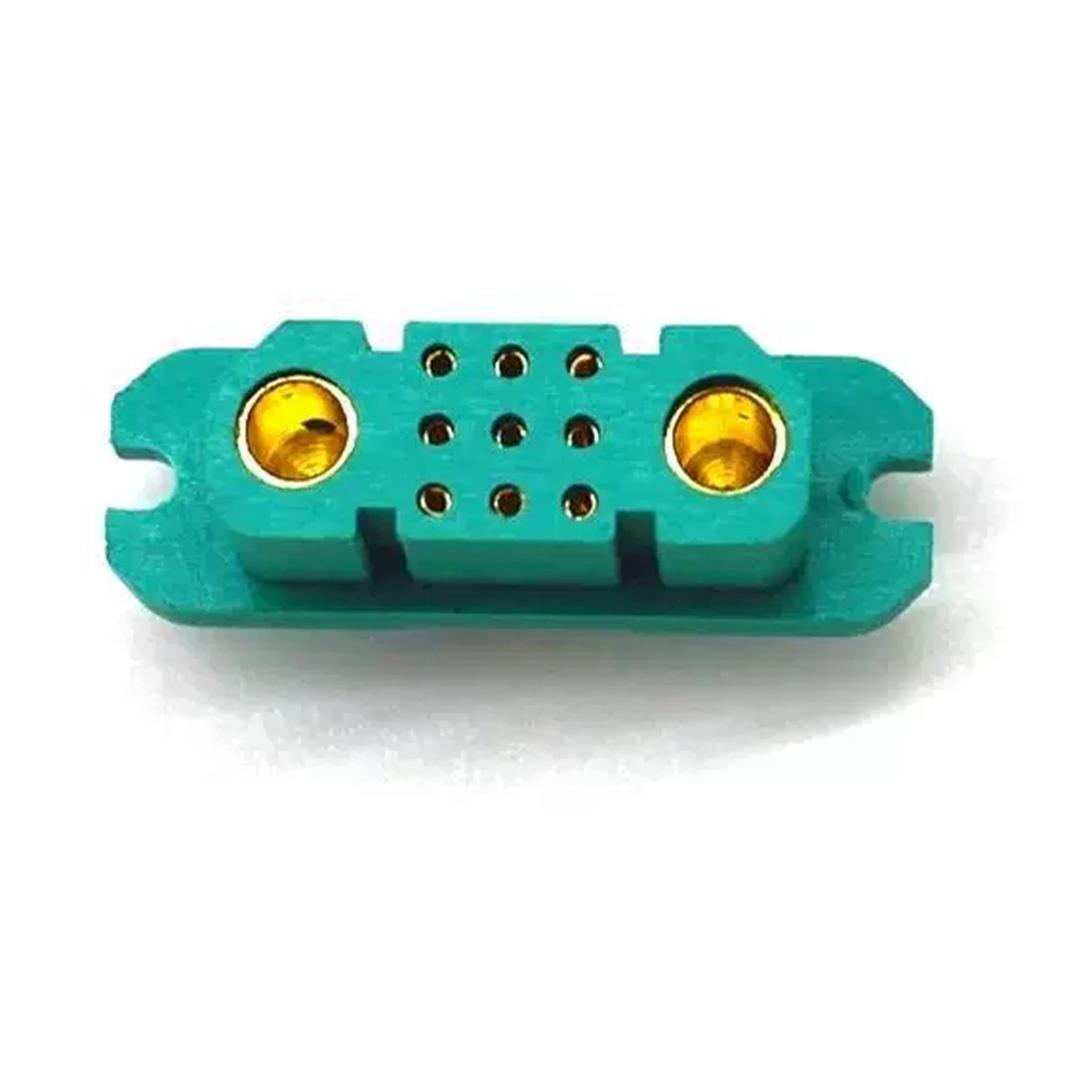

Gold-plated high-current plug connector, 2+9 contact set
From $2.44from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts3 variants

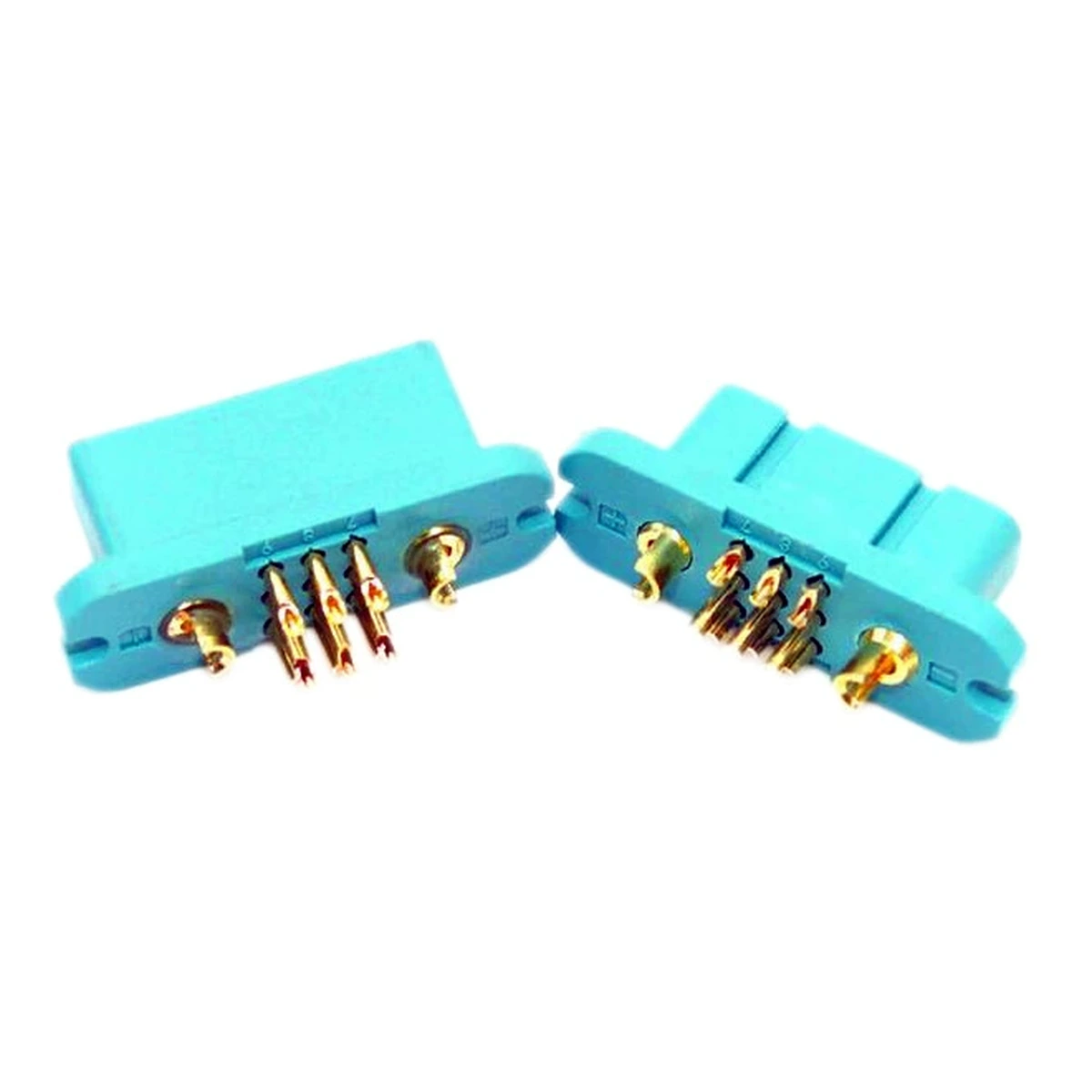

A 2+9 power contact set built for RC LED light harnesses: gold-plated pins, a pluggable housing and solder termination for 14–26 AWG wire. Supplied as male pins with female housing, female pins with male housing, or as a matched set.
| Configuration | Stock | EXW / pc |
|---|---|---|
| Male + female set | 9,155 | $5.63 |
| Male pin, female housing | 9,942 | $2.44 |
| Female pin, male housing | 10,000 | $3.19 |
Specifications
| Electrical | |
|---|---|
| Contact plating | Gold-plated |
| Termination | Solder |
| Wire gauge | 14–26 AWG |
| Terminal size | 1.5–3.5 mm |
| Mechanical | |
| Housing type | Pluggable terminal |
| Housing gender | Male / female |
| Mounting | Screw-fixed |
| Identification | |
| Series | HY |
| Ordering code | HY2020090212 |
| Colour | Light blue |
| Unit weight | 30 g |
| Application | Electrical and electronics |
