In stock
Gold-plated high-current plug connector, 2+6 contact set
From $1.81from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts3 variants

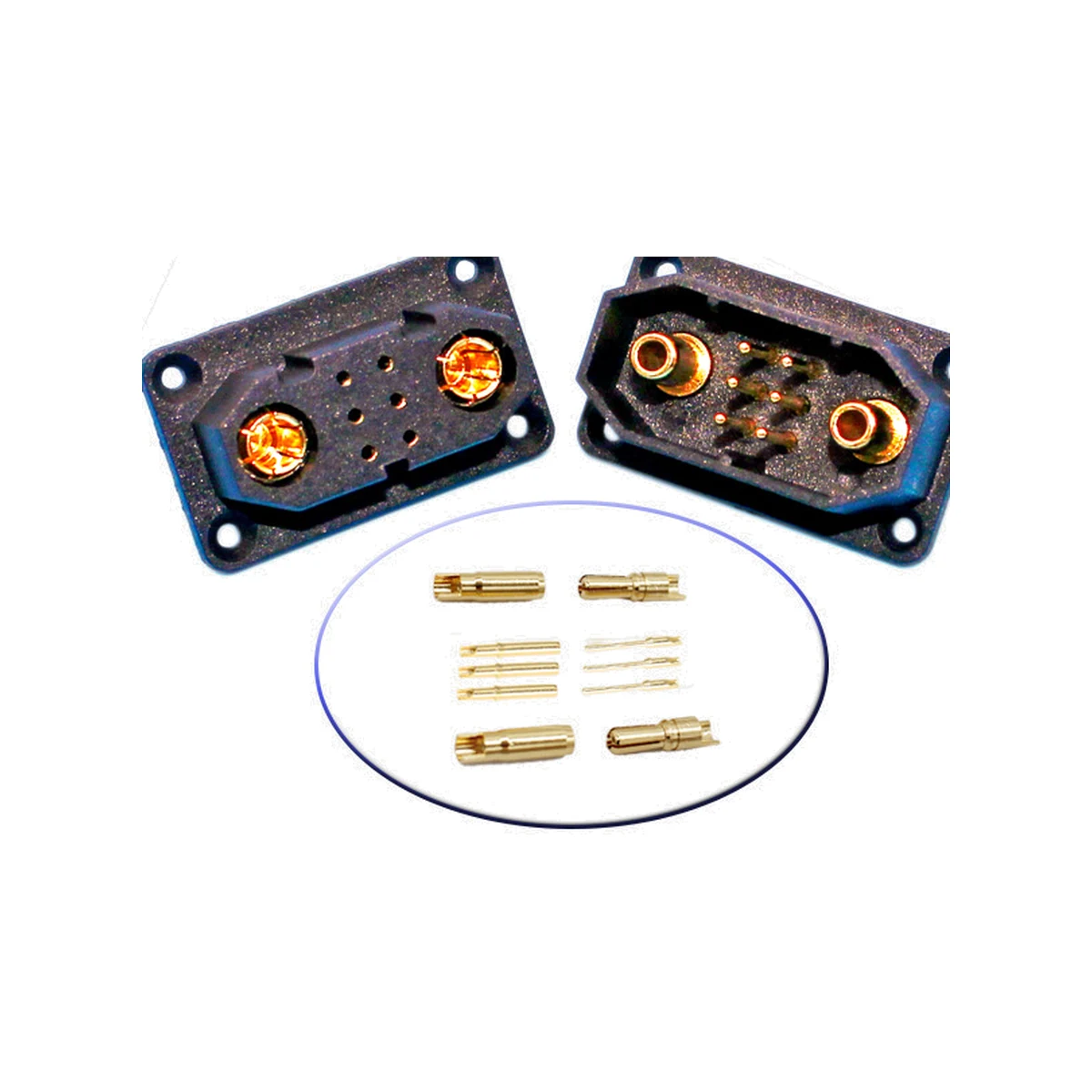

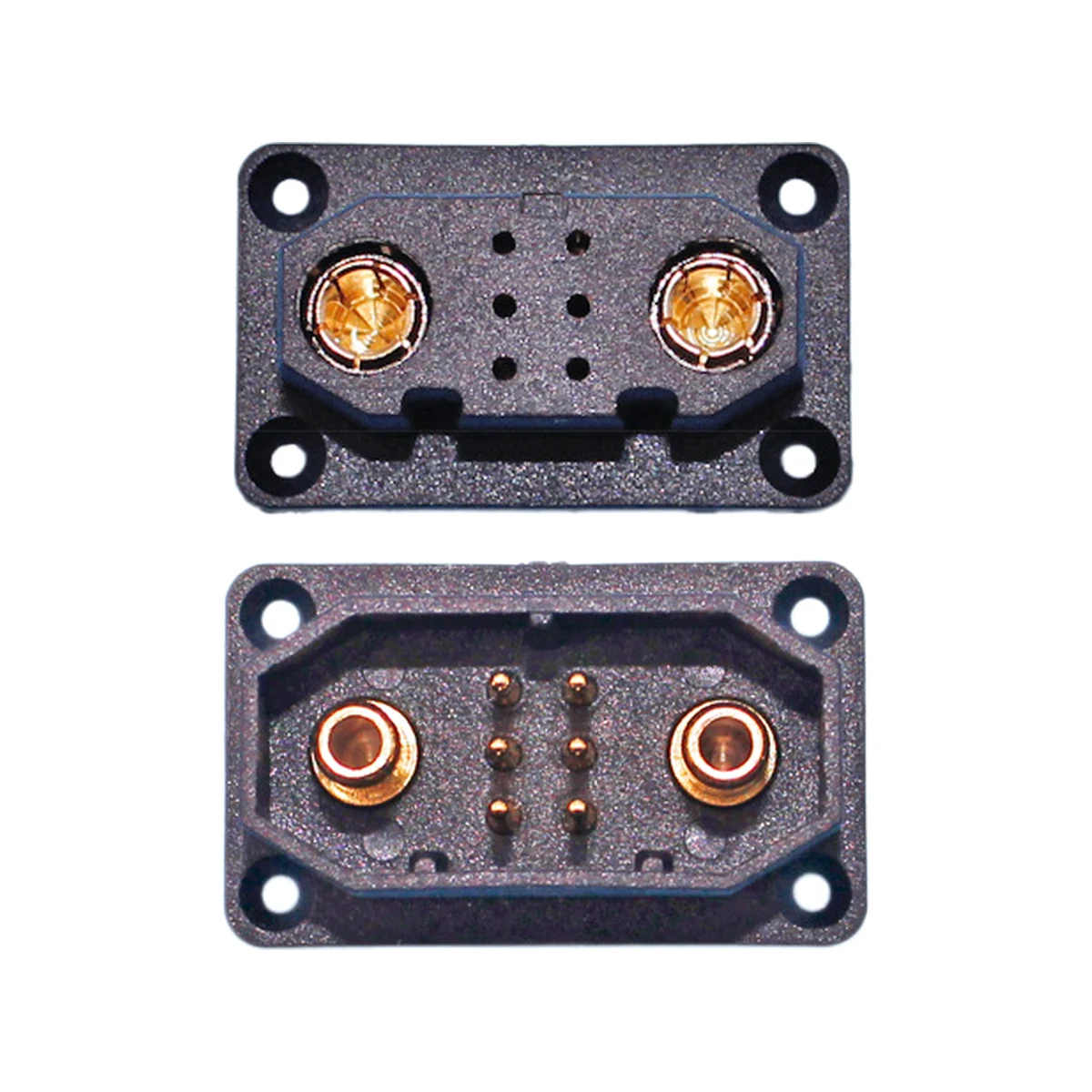

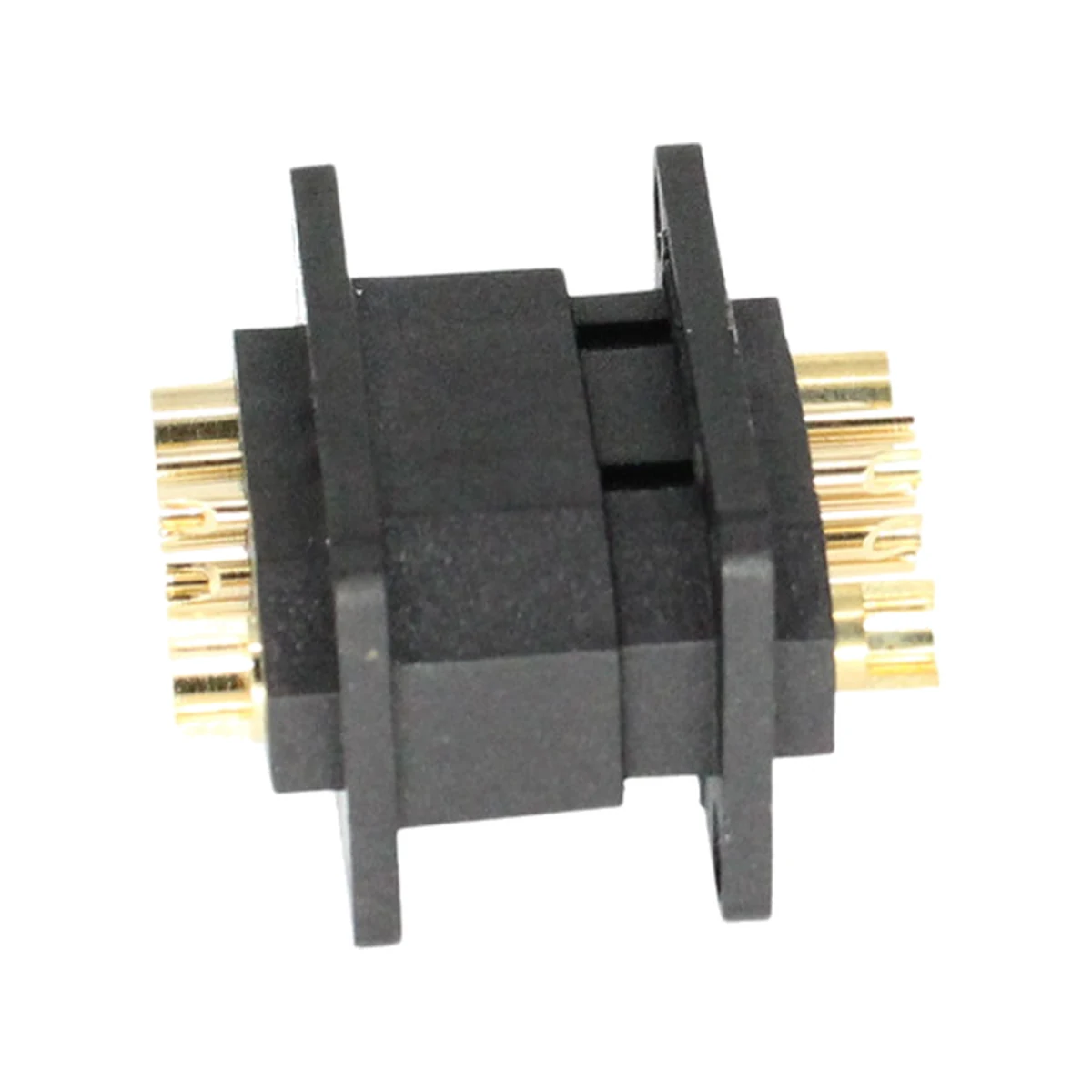

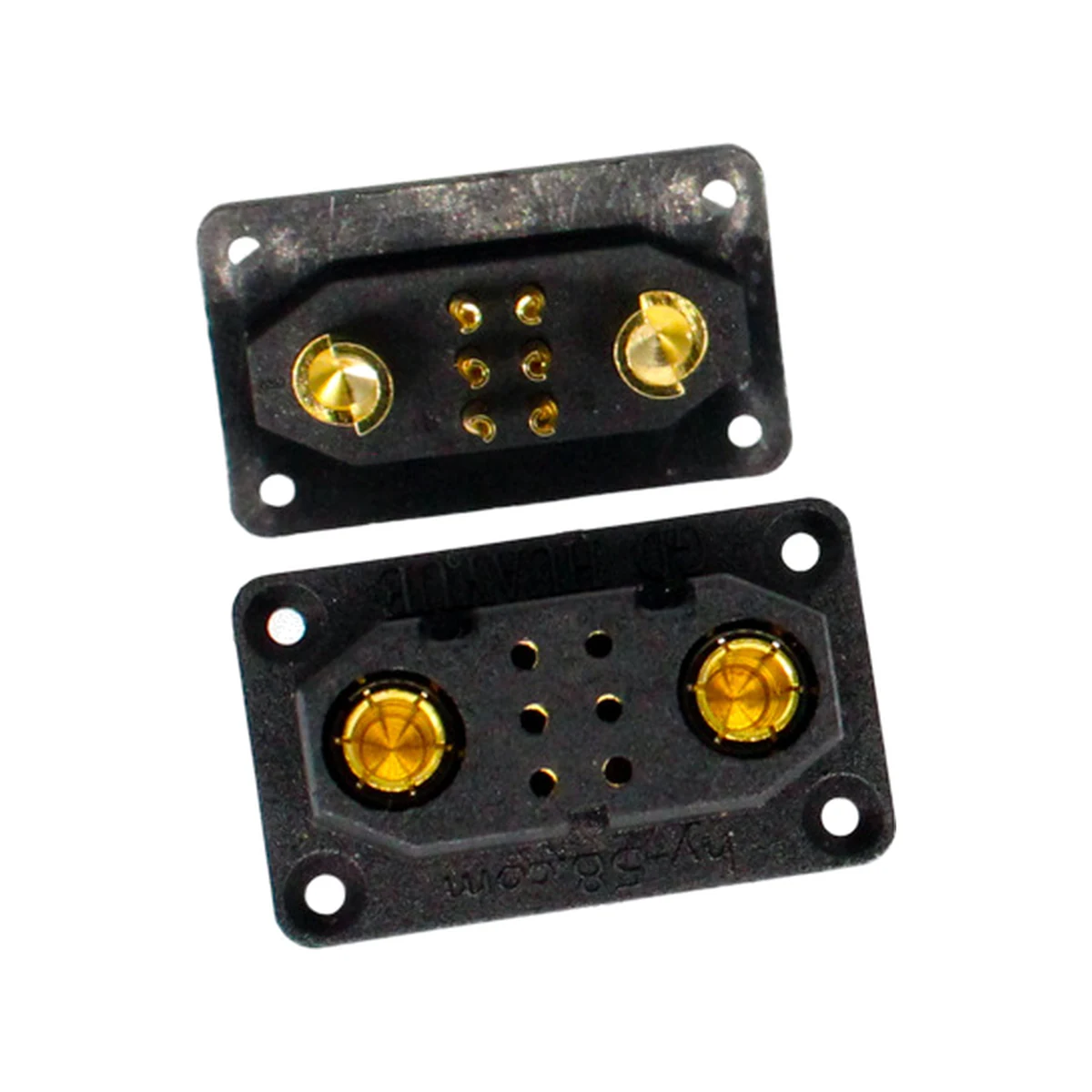

A 2+6 contact set for RC power and signal harnesses: two 50 A power contacts flanking six signal pins, gold-plated over brass in a black nylon housing. Flange-mounted, supplied as male housing with female sockets, female housing with male pins, or as a matched pair.
| Configuration | Stock | EXW / pc |
|---|---|---|
| Male + female set | 9,559 | $4.50 |
| Female housing, male pins | 10,000 | $1.81 |
| Male housing, female sockets | 10,000 | $2.71 |
Specifications
| Electrical | |
|---|---|
| Rated current | 50 A |
| Rated voltage | 300 V |
| Contact plating | Gold-plated brass |
| Contacts | 8 total — 2 power + 6 signal |
| Mechanical | |
| Housing material | Nylon (PA), black |
| Flame rating | UL94 V-2 |
| Operating temperature | −20 °C to +100 °C |
| Mounting | Flange, four fixing holes |
| Identification | |
| Series | HY2+6Y |
| Ordering code | 20191128751 / 20191128752 / 20191128753 |
| Unit weight | 20 g |
| Application | RC models — boat, aircraft, car |
