In stock
Gold-plated high-current plug connector, 2+8 contact set
From $1.81from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts3 variants

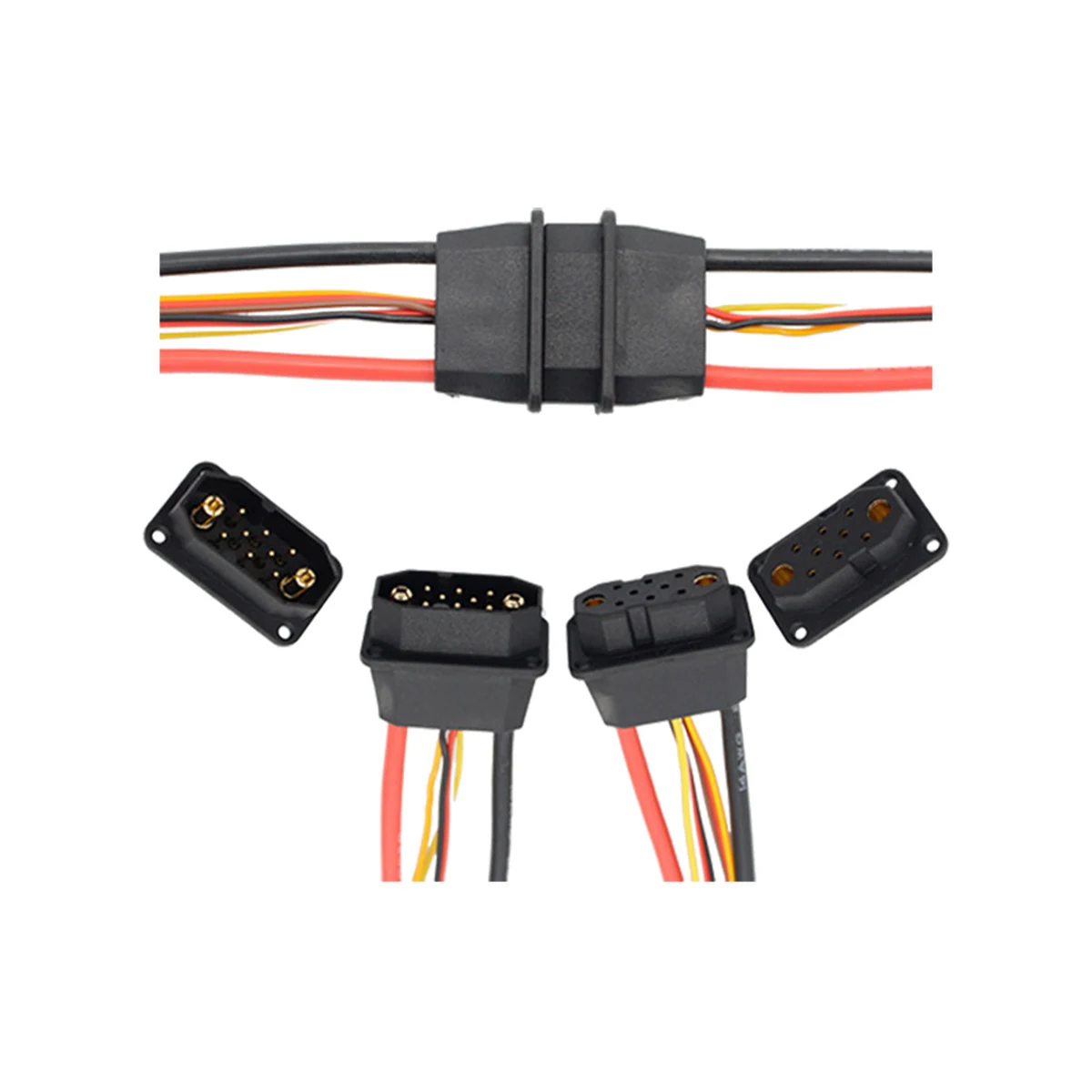

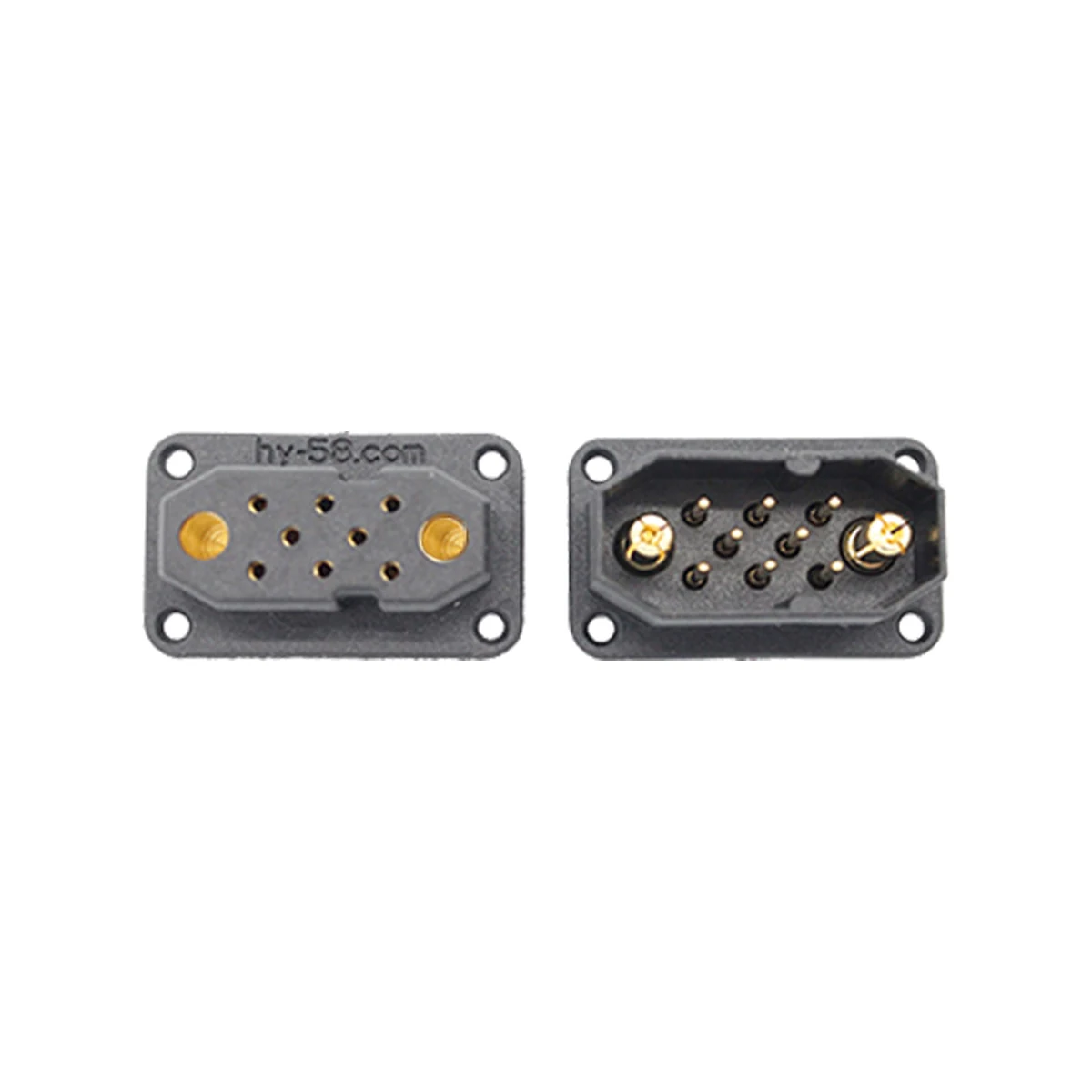

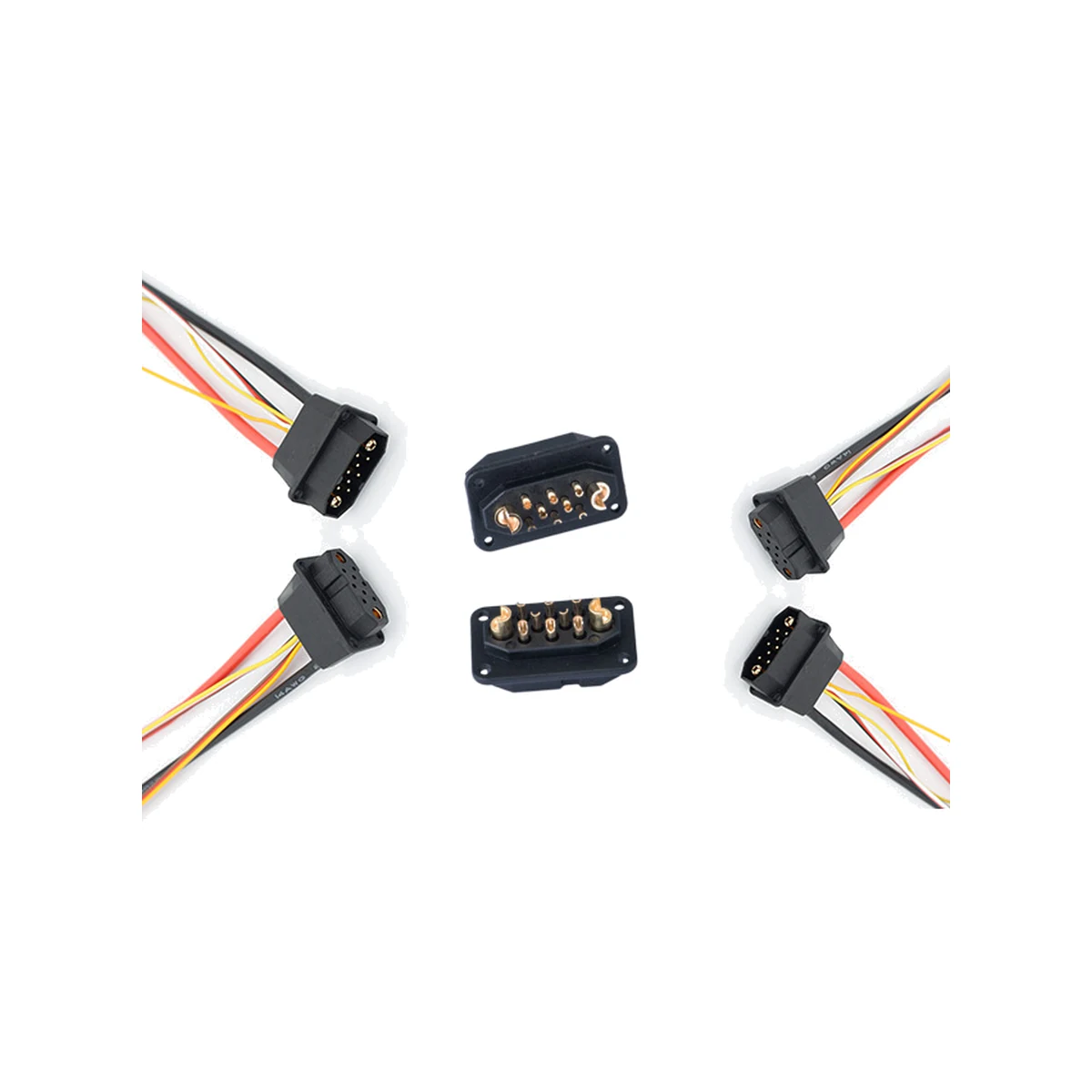

A 2+8 contact set for RC power harnesses: two 30 A power contacts flanking eight signal pins, gold-plated over the contact bodies, in a flange-mounted housing. Supplied as male housing with female sockets, female housing with male pins, or as a matched pair.
| Configuration | Stock | EXW / pc |
|---|---|---|
| Male + female set | 99,474 | $4.35 |
| Female housing, male pins | 100,000 | $1.81 |
| Male housing, female sockets | 100,000 | $2.52 |
Specifications
| Electrical | |
|---|---|
| Rated current | 30 A |
| Rated voltage | 300 V |
| Contacts | 10 total — 2 power + 8 signal |
| Contact plating | Gold-plated |
| Mechanical | |
| Wire gauge | 12–26 AWG |
| Mounting | Flange, four fixing holes |
| Identification | |
| Series | HY-2+8P |
| Ordering code | 20190518123 / 20190518124 / 20190518125 |
| Unit weight | 25 g |
| Application | RC models — boat, aircraft, car |
