In stock
Gold-plated high-current plug connector, 2+4 contact set
From $1.43100 pcs minimum for this part. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts3 variants

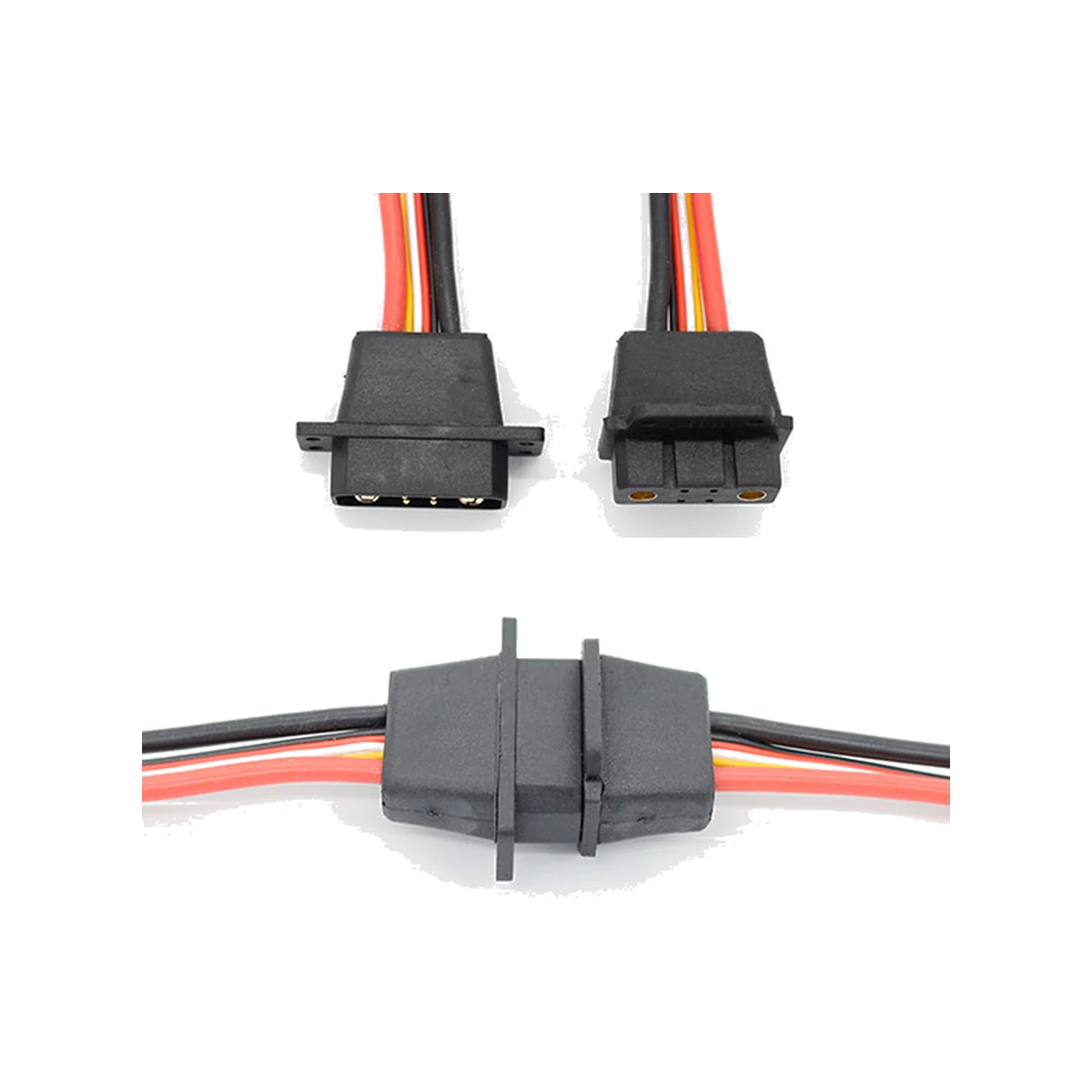

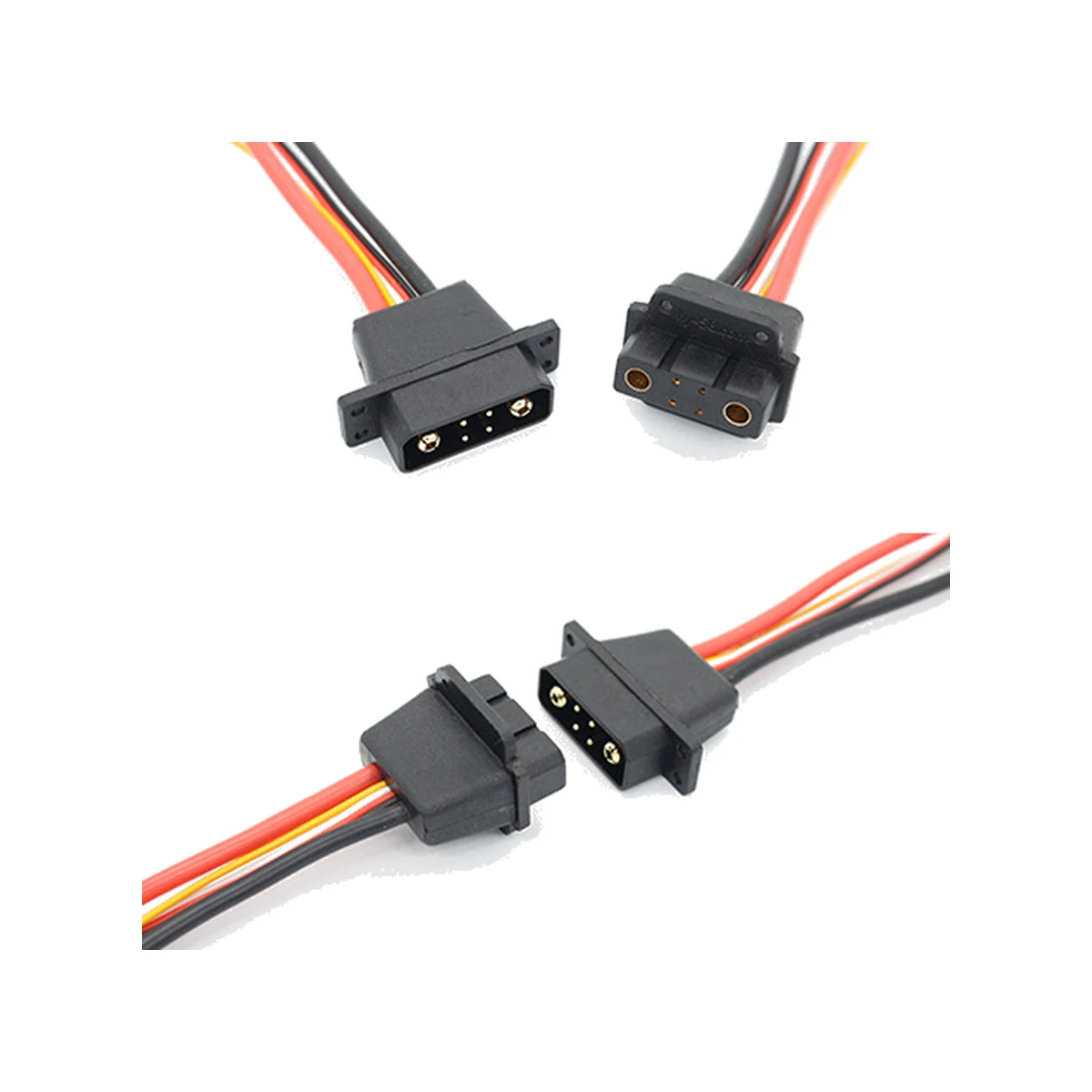

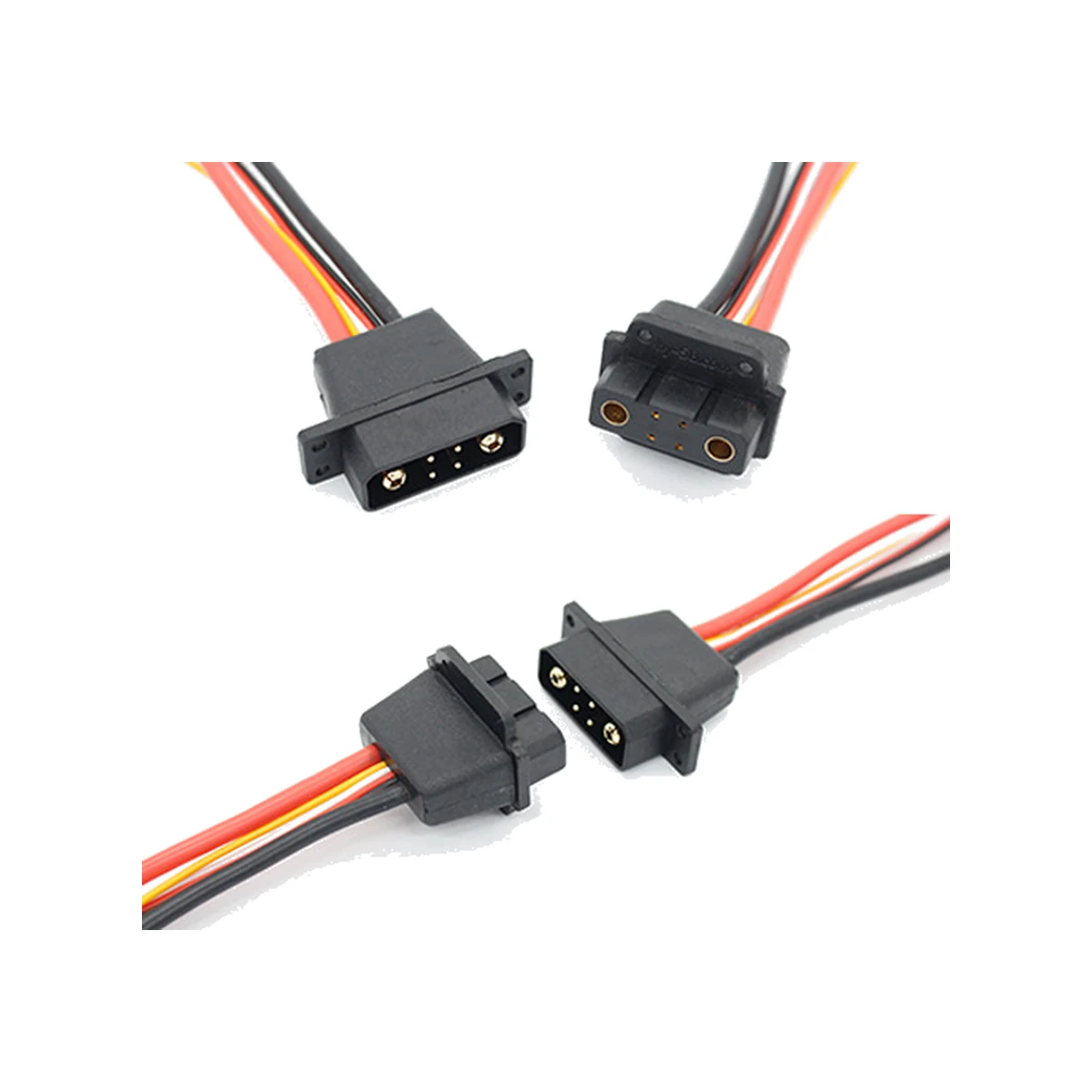

A 2+4 contact set for RC power harnesses: two 30 A power contacts flanking four signal pins, gold-plated over brass in a nylon housing. Flange-mounted, rated 300 V, supplied as male housing with female sockets, female housing with male pins, or as a matched pair.
| Configuration | Stock | EXW / pc |
|---|---|---|
| Male + female set | 98,770 | $3.08 |
| Female housing, male pins | 99,700 | $1.43 |
| Male housing, female sockets | 100,000 | $1.66 |
Specifications
| Electrical | |
|---|---|
| Rated current | 30 A |
| Rated voltage | 300 V |
| Contacts | 6 total — 2 power + 4 signal |
| Contact material | Gold-plated brass |
| Termination | Solder |
| Mechanical | |
| Insulator | Nylon |
| Mounting | Flange with fixing holes |
| Rows | 2 |
| Identification | |
| Series | HY-2+4P |
| Ordering code | 2019051276 / 2019051277 / 20190512768 |
| Unit weight | 20 g |
| Application | RC models — boat, aircraft, car |
