In stock
EV 280 series connector, 2-core plug and socket
From $10.88from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts6 variants

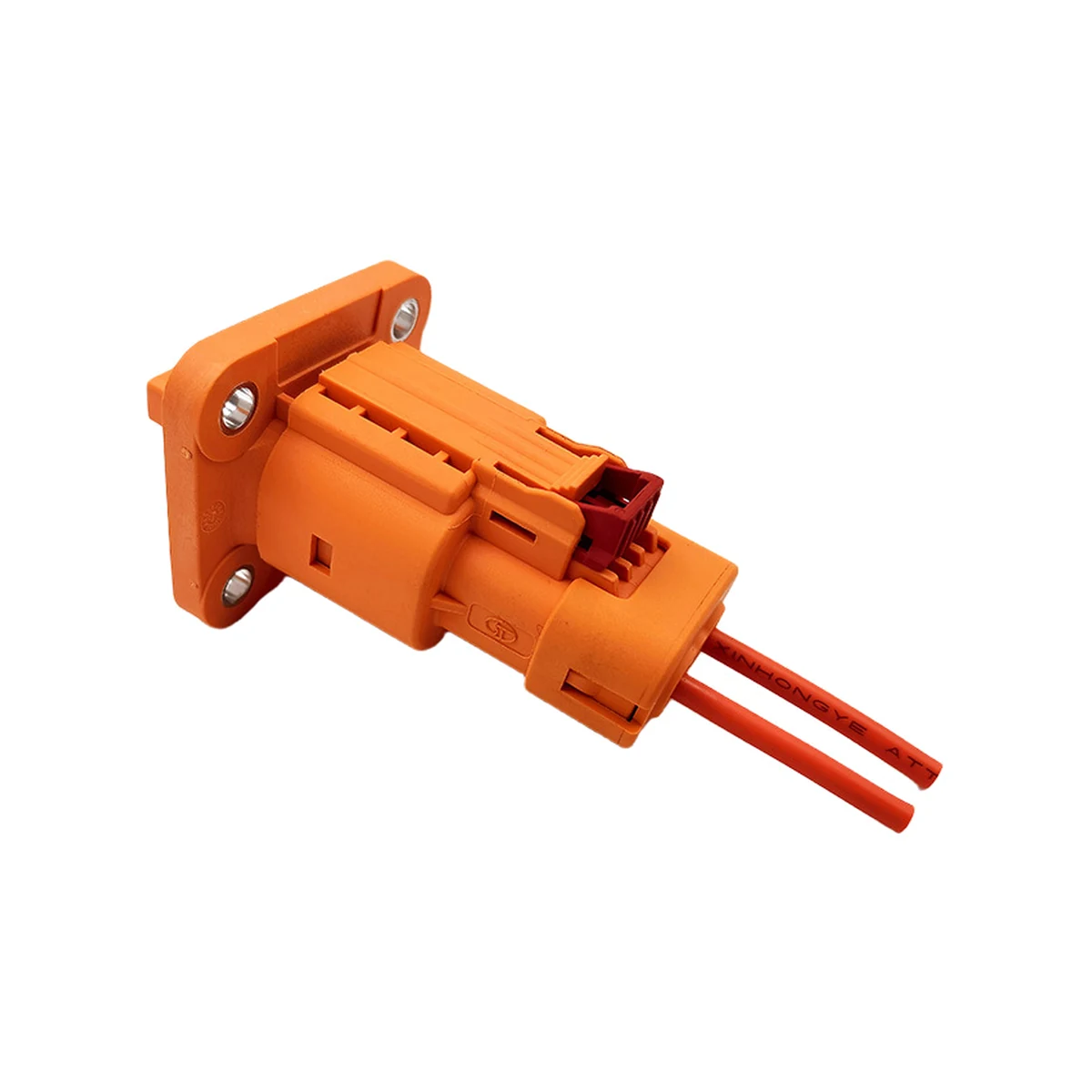

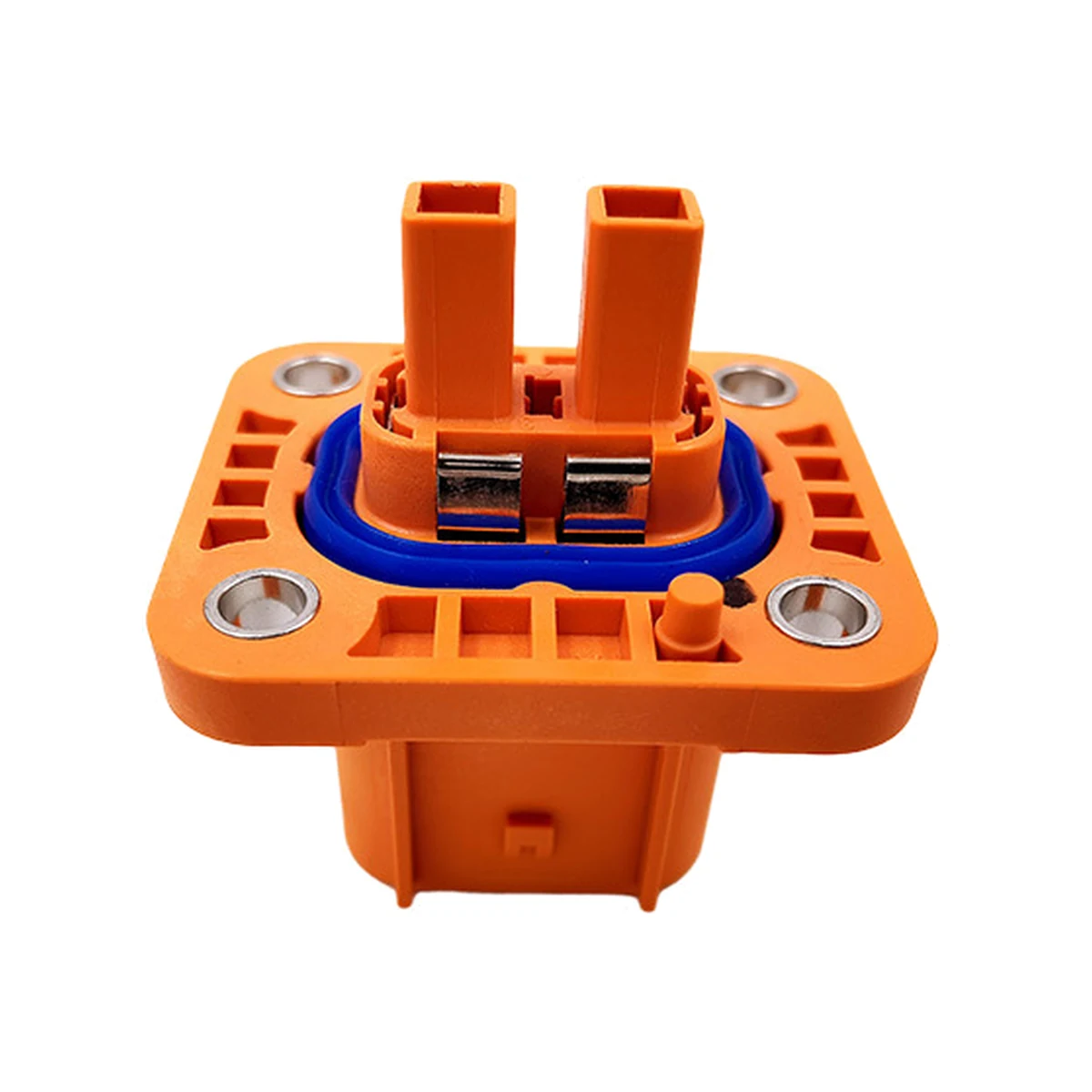

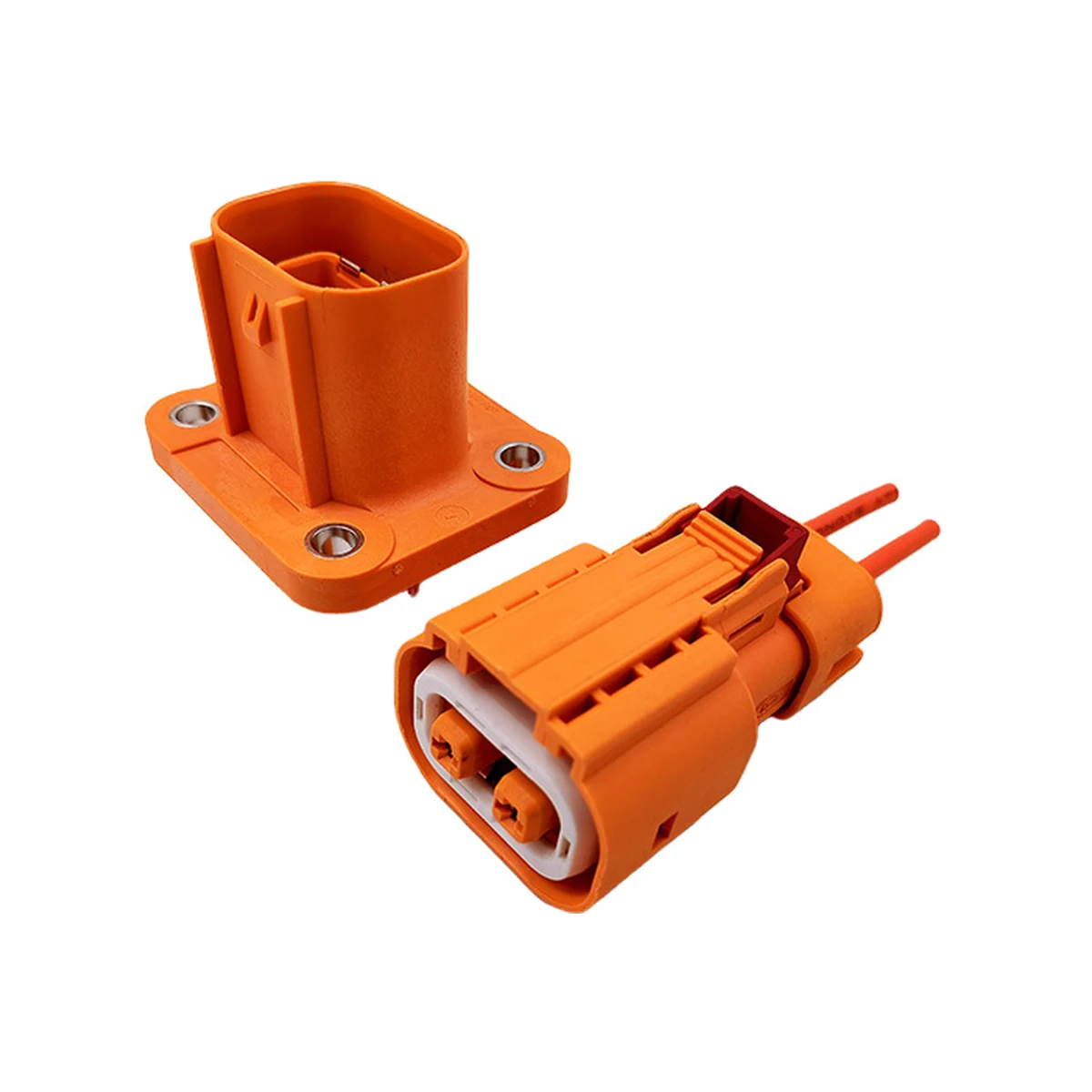

The 280 series two-core pair: a short-body plug with a squeeze latch and a matching panel socket, sized for 2.5, 4.0 or 6.0 mm² cable in EV auxiliary and battery-management runs.
| Configuration | Stock | EXW / pc |
|---|---|---|
| Straight plug · 2.5 mm² | In stock | $12.38 |
| Straight plug · 4.0 mm² | In stock | $12.38 |
| Straight plug · 6.0 mm² | In stock | $12.38 |
| Panel socket · 2.5 mm² | In stock | $10.88 |
| Panel socket · 4.0 mm² | In stock | $10.88 |
| Panel socket · 6.0 mm² | In stock | $10.88 |
Specifications
| Electrical | |
|---|---|
| Cores | 2 |
| Current class | Small current |
| Mechanical | |
| Cable sizes | 2.5 / 4.0 / 6.0 mm² |
| Mating | 280 series keyed plug to panel socket, squeeze latch |
| Identification | |
| Ordering codes | ST549000 plug · ST550000 socket |
| Application | EV auxiliary circuits and battery-management harnesses |
