In stock
Energy-storage connector, 8 mm single-core, 35–50 mm²
From $9.75100 pcs minimum for this part. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts4 variants

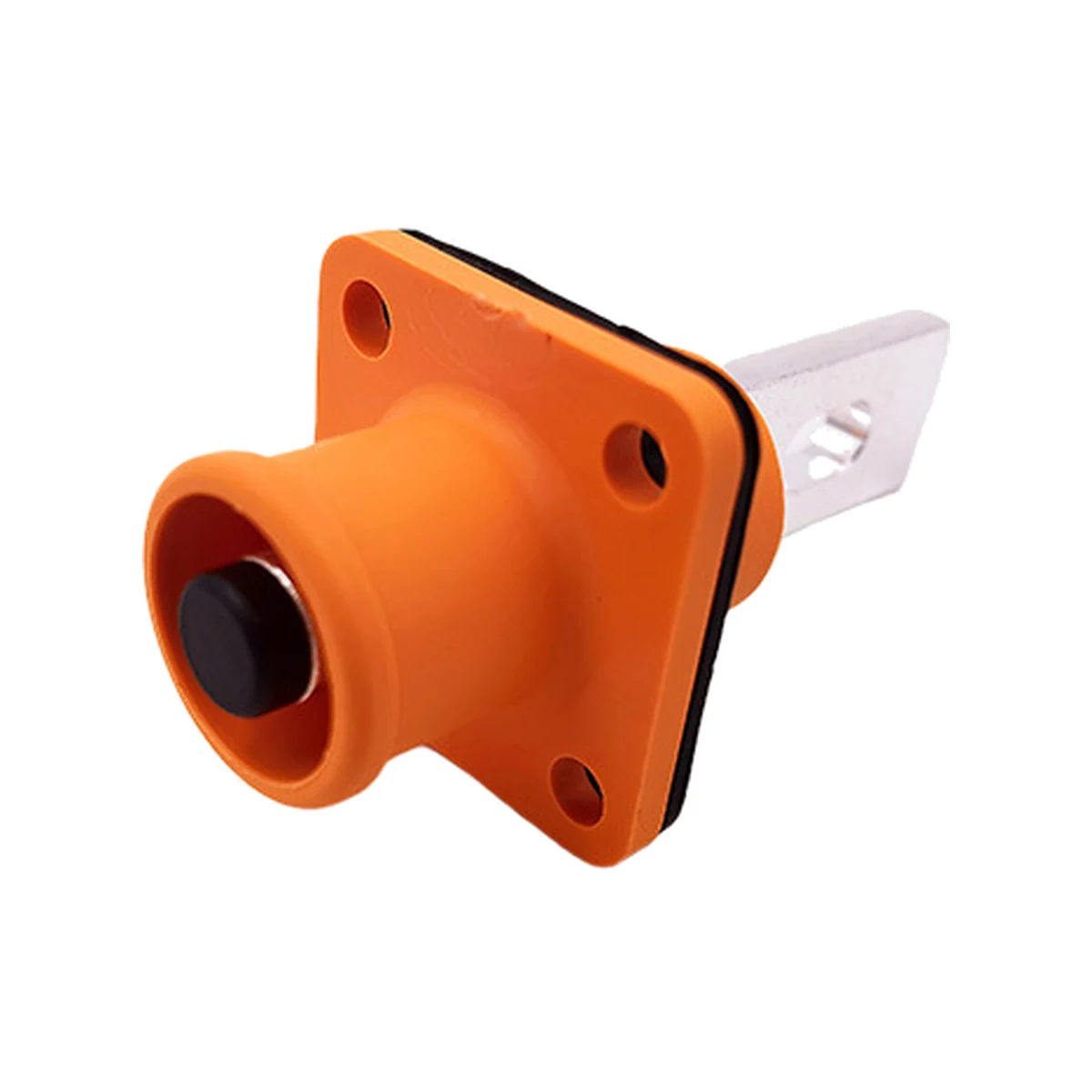

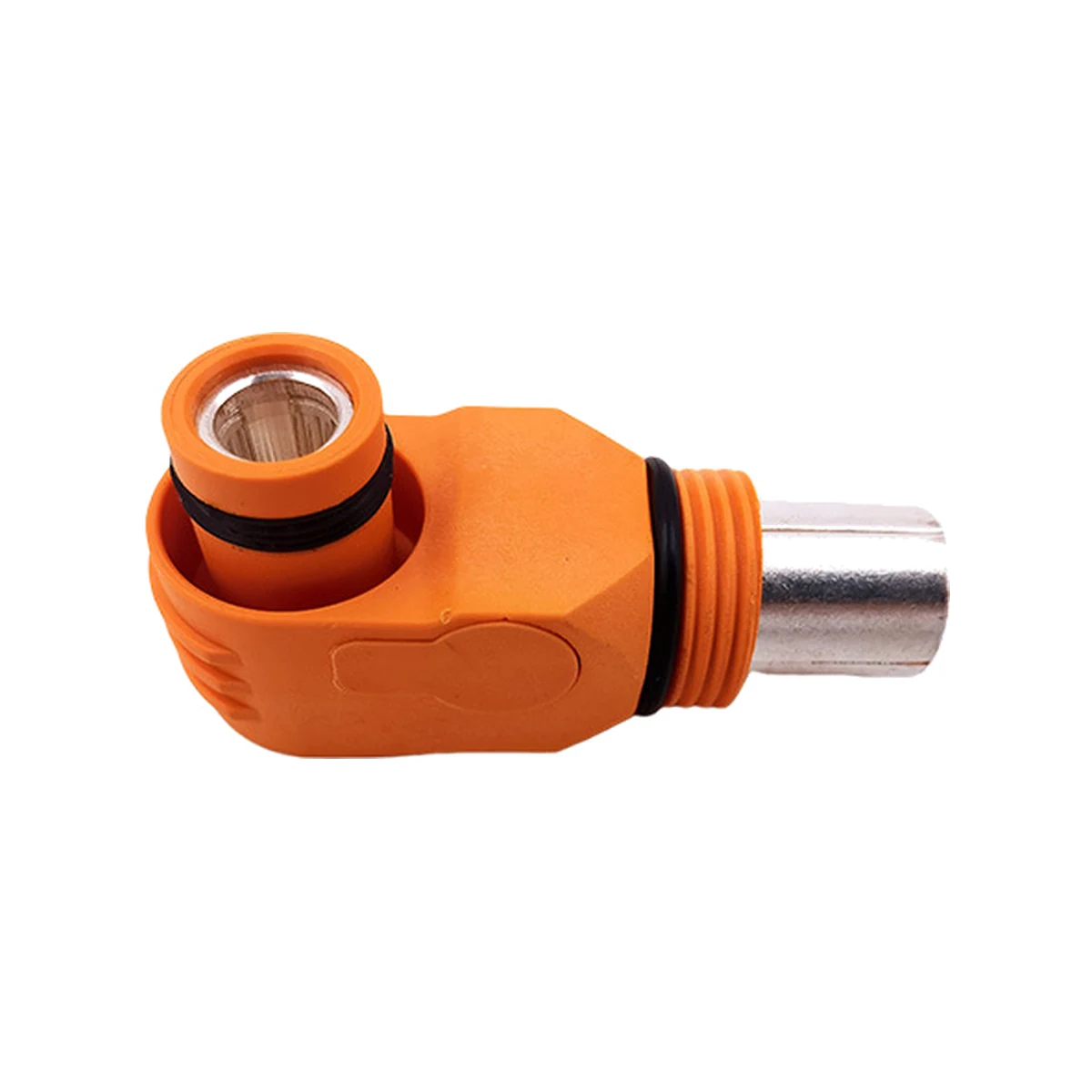

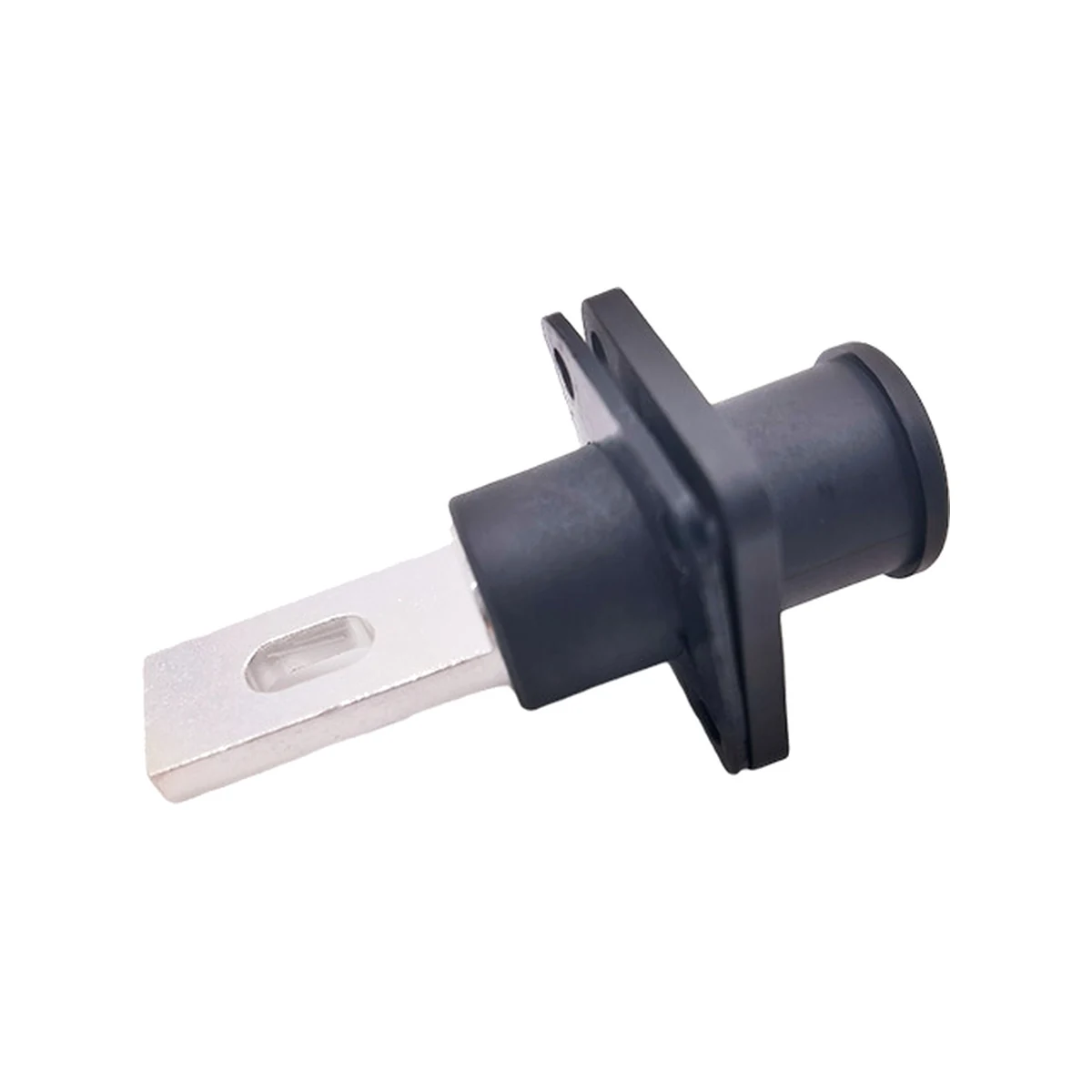

An 8 mm single-core high-current connector for 35 or 50 mm² cable: a 90° plug with a ribbed sealed boot and a flange socket with a flat through-hole or a long threaded terminal.
| Configuration | Stock | EXW / pc |
|---|---|---|
| 90° plug · 35 mm² | 99,942 | $10.88 |
| 90° plug · 50 mm² | 99,943 | $10.88 |
| Socket · flat through-hole terminal | 99,934 | $9.75 |
| Socket · long threaded terminal | 99,985 | $9.75 |
Specifications
| Electrical | |
|---|---|
| Cores | 1 |
| Pins | 1 |
| Mechanical | |
| Barrel diameter | 8.0 mm |
| Cable sizes | 35 / 50 mm² |
| Contact carrier | PA66 |
| Mounting | 90° plug or flange socket |
| Termination | Flat through-hole or long threaded stud |
| Identification | |
| Series | ST543000 |
| Application | Battery cabinets, PCS and energy-storage busbars |
