In stock
Energy-storage connector, 5.7 mm single-core, 16–25 mm²
$7.88from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts4 variants

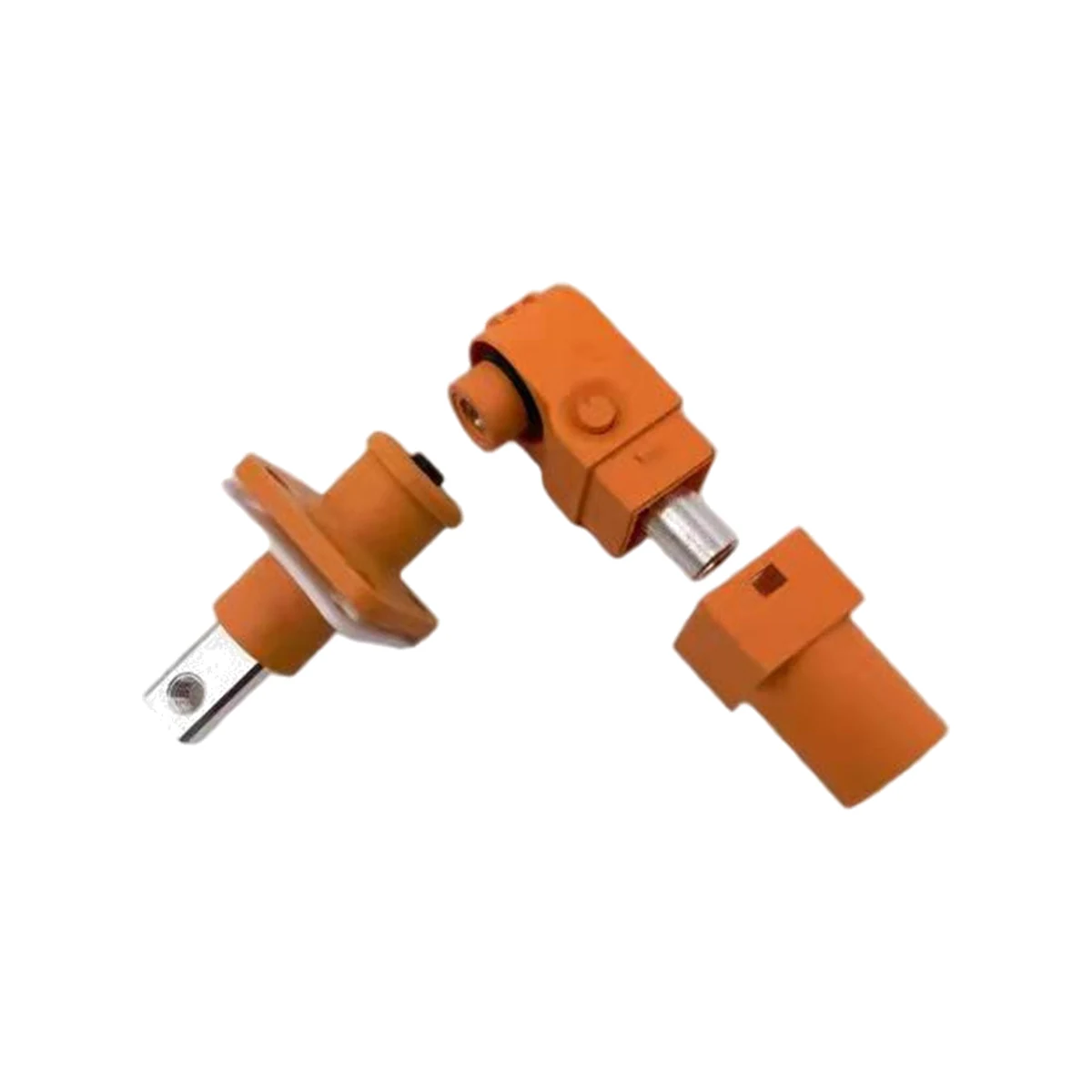

A 5.7 mm single-core barrel connector for battery cabinets and PCS busbars: a 90° plug with a ribbed sealed boot, plus a flange socket with a flat through-hole or a long threaded terminal. Takes 16 or 25 mm² cable.
| Configuration | Stock | EXW / pc |
|---|---|---|

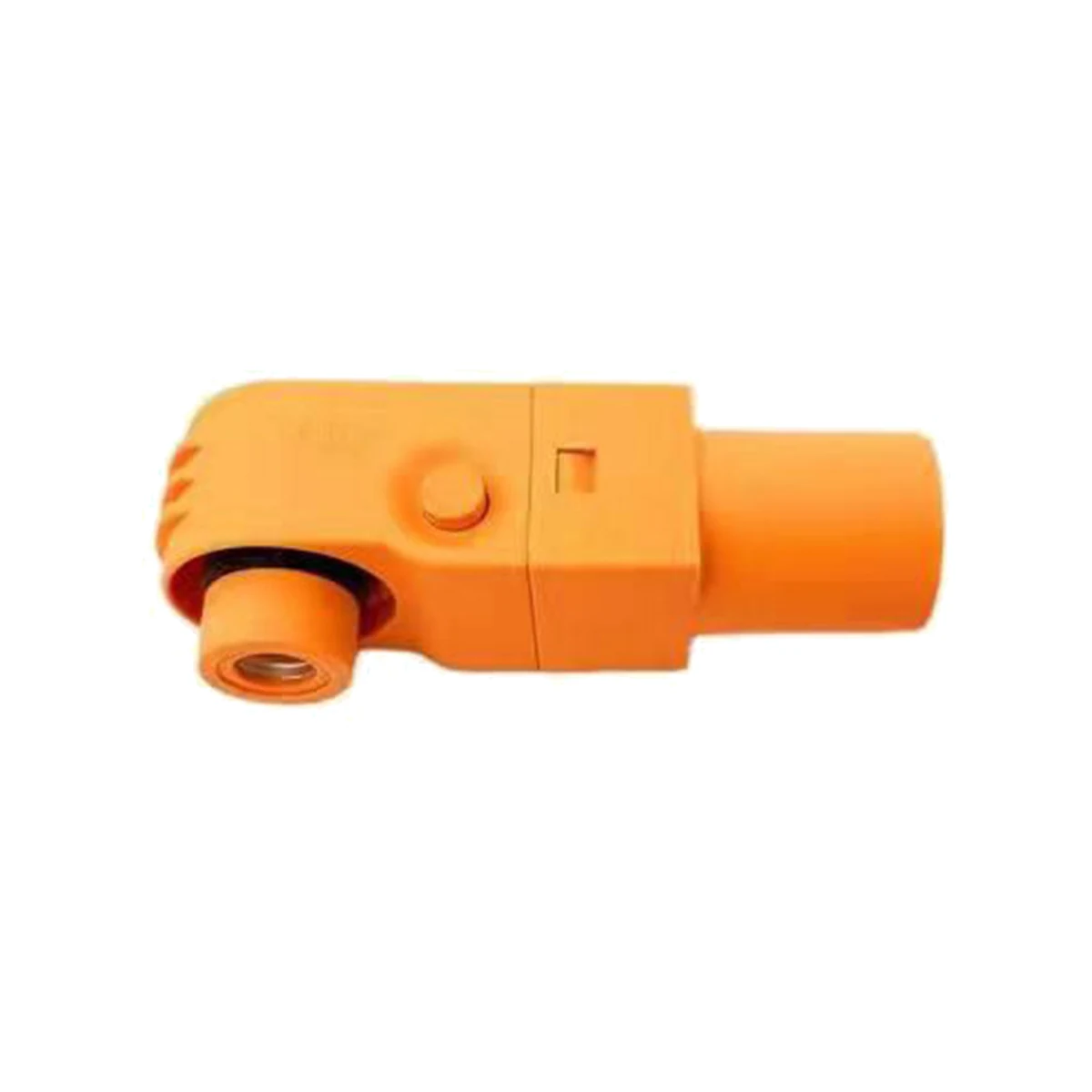

| 90° plug · 16 mm² | 3,452 | $7.88 |
| 90° plug · 25 mm² | 3,452 | $7.88 |

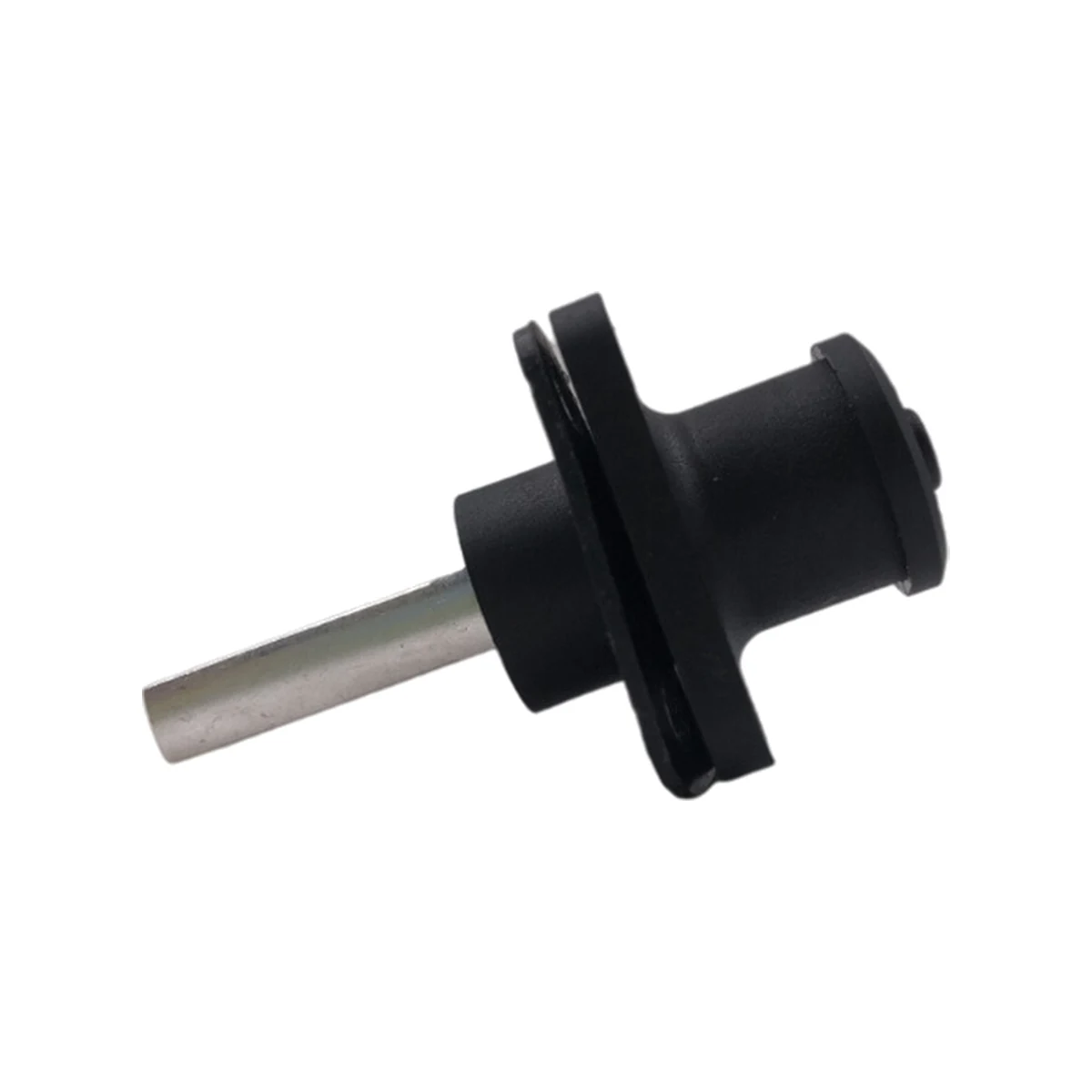

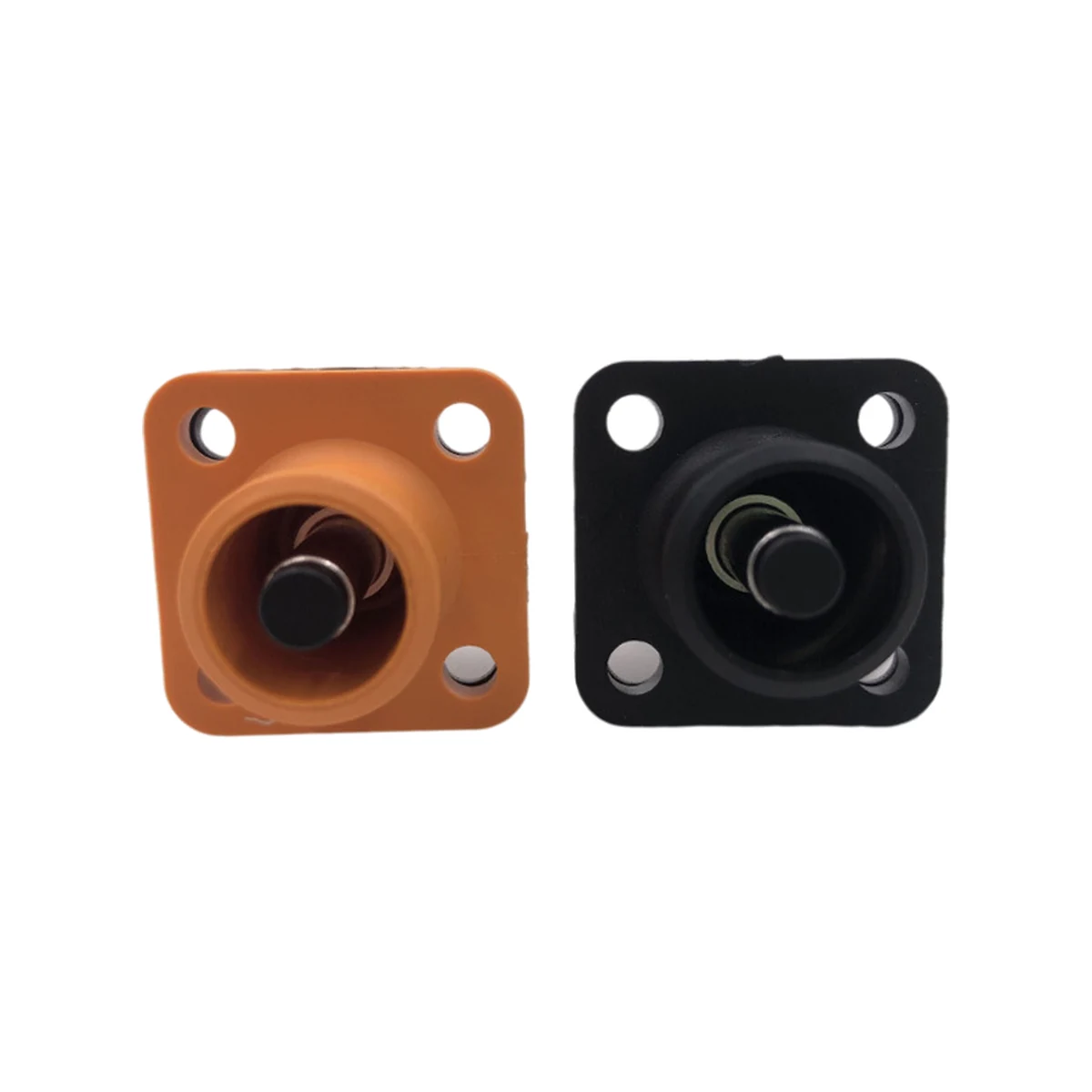

| Socket · flat through-hole terminal | 3,452 | $7.88 |
| Socket · long threaded terminal | 3,542 | $7.88 |
Specifications
| Electrical | |
|---|---|
| Cores | 1 |
| Pins | 1 |
| Rated voltage | Not published on the source listing — confirm on request |
| Rated current | Not published on the source listing — confirm on request |
| Mechanical | |
| Barrel diameter | 5.7 mm |
| Cable sizes | 16 / 25 mm² |
| Mounting | 90° plug or flange socket |
| Termination | Flat through-hole or long threaded stud |
| Identification | |
| Series | ST547000 |
| Application | Battery cabinets, PCS and energy-storage busbars |
