In stock
Energy-storage connector, 12 mm single-core, 50–107 mm²
From $14.25from 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 100 pcGold-plated contacts6 variants

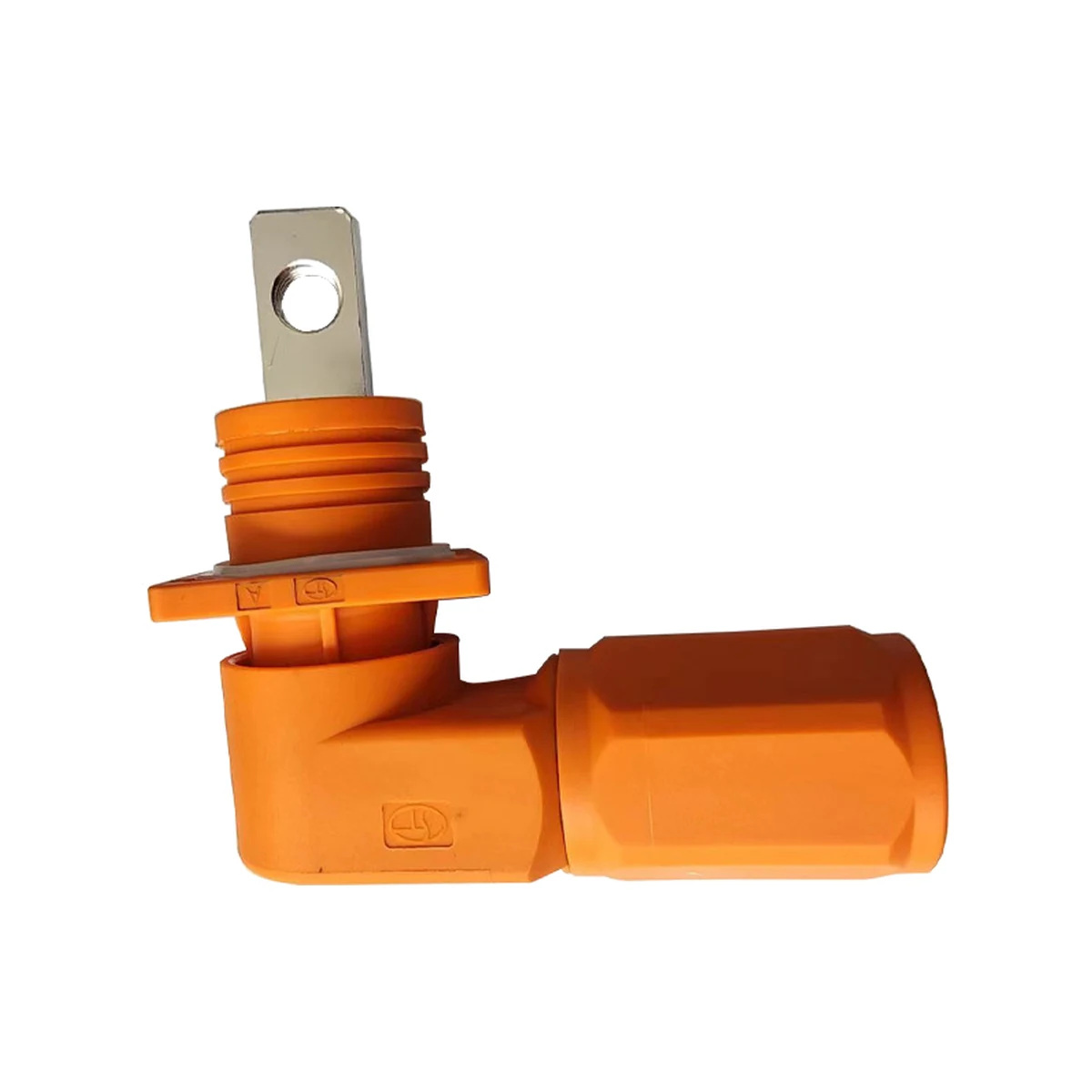

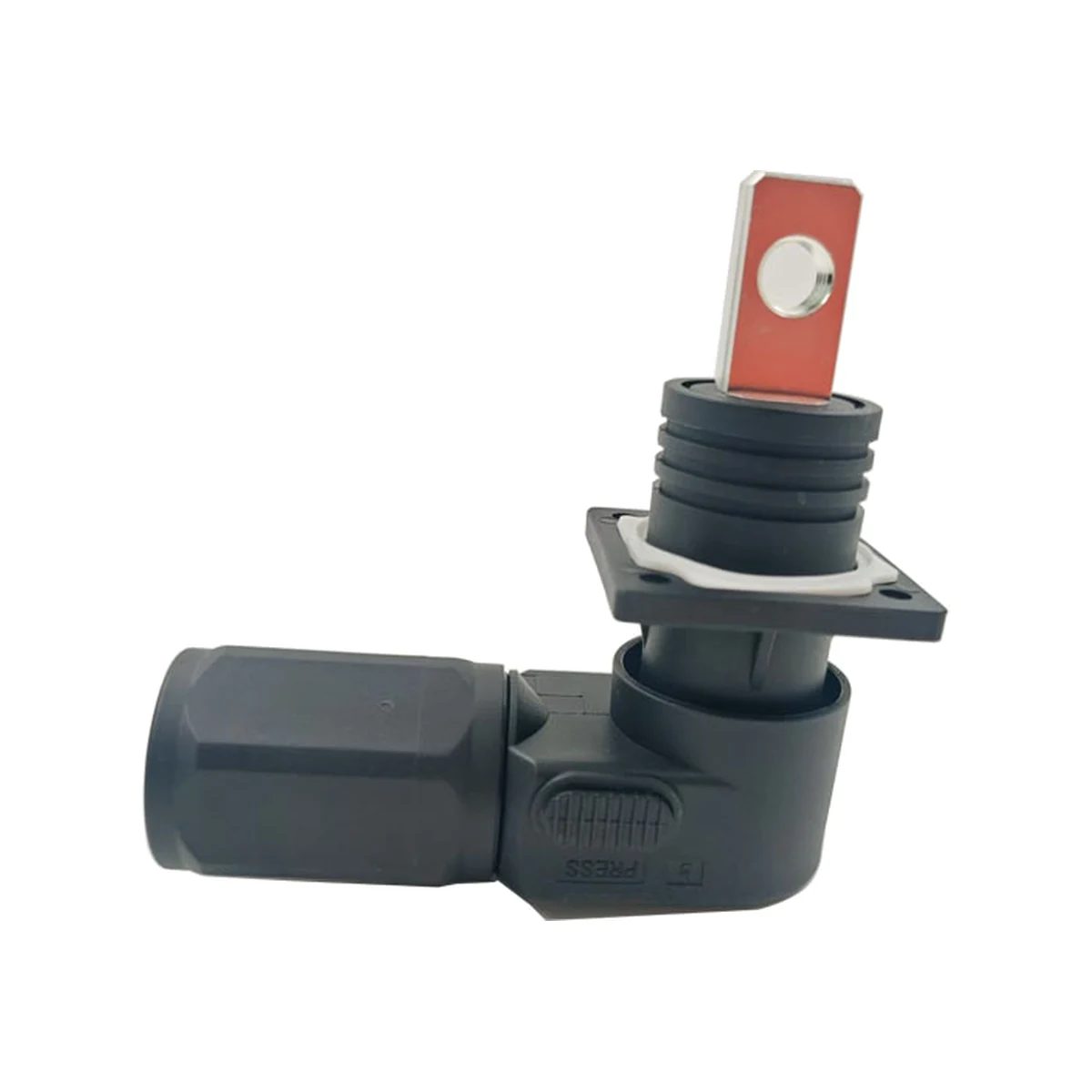

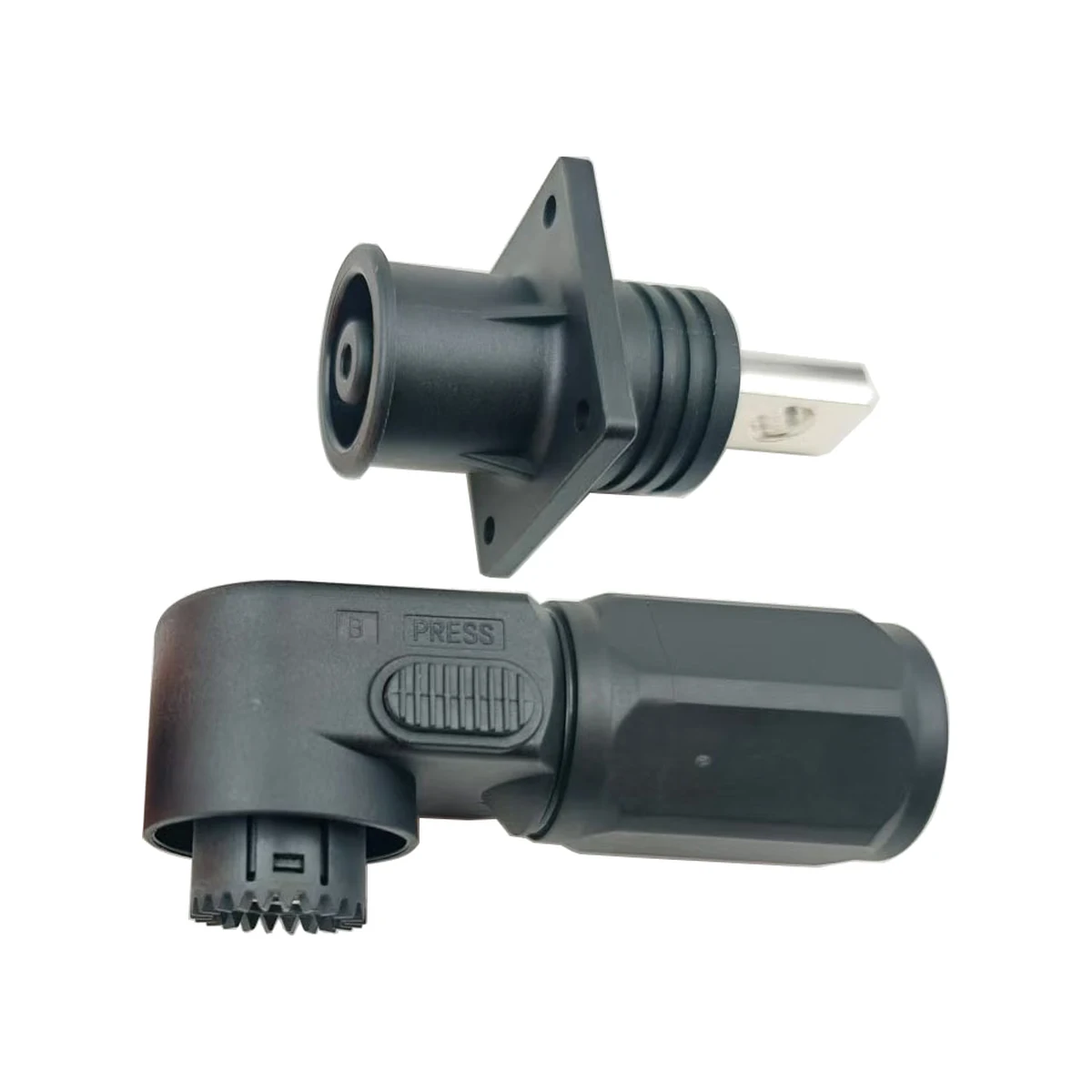

The largest barrel in the energy-storage range: a 12 mm single-core connector for 50, 70, 95 or 107 mm² cable, with a 90° plug and a flange socket in waist-hole or threaded through-hole versions. Built for storage cabinets and wind / PV combiner boxes.
| Configuration | Stock | EXW / pc |
|---|---|---|
| 90° plug · 50 mm² | 99,942 | $16.88 |
| 90° plug · 70 mm² | 99,943 | $16.88 |
| 90° plug · 95 mm² | 10,000 | $16.88 |
| 90° plug · 107 mm² | 1,000 | $16.88 |
| Socket · waist-hole terminal | 99,934 | $14.25 |
| Socket · threaded through-hole | 99,985 | $14.25 |
Specifications
| Electrical | |
|---|---|
| Cores | 1 |
| Pins | 1 |
| Rated voltage | Not published on the source listing — confirm on request |
| Rated current | Not published on the source listing — confirm on request |
| Mechanical | |
| Barrel diameter | 12 mm |
| Cable sizes | 50 / 70 / 95 / 107 mm² |
| Contact carrier | PA66 |
| Mounting | 90° plug or flange socket |
| Termination | Waist-hole or threaded through-hole |
| Identification | |
| Series | 12 mm energy-storage series |
| Application | Storage cabinets, PCS, wind and PV combiner boxes |
