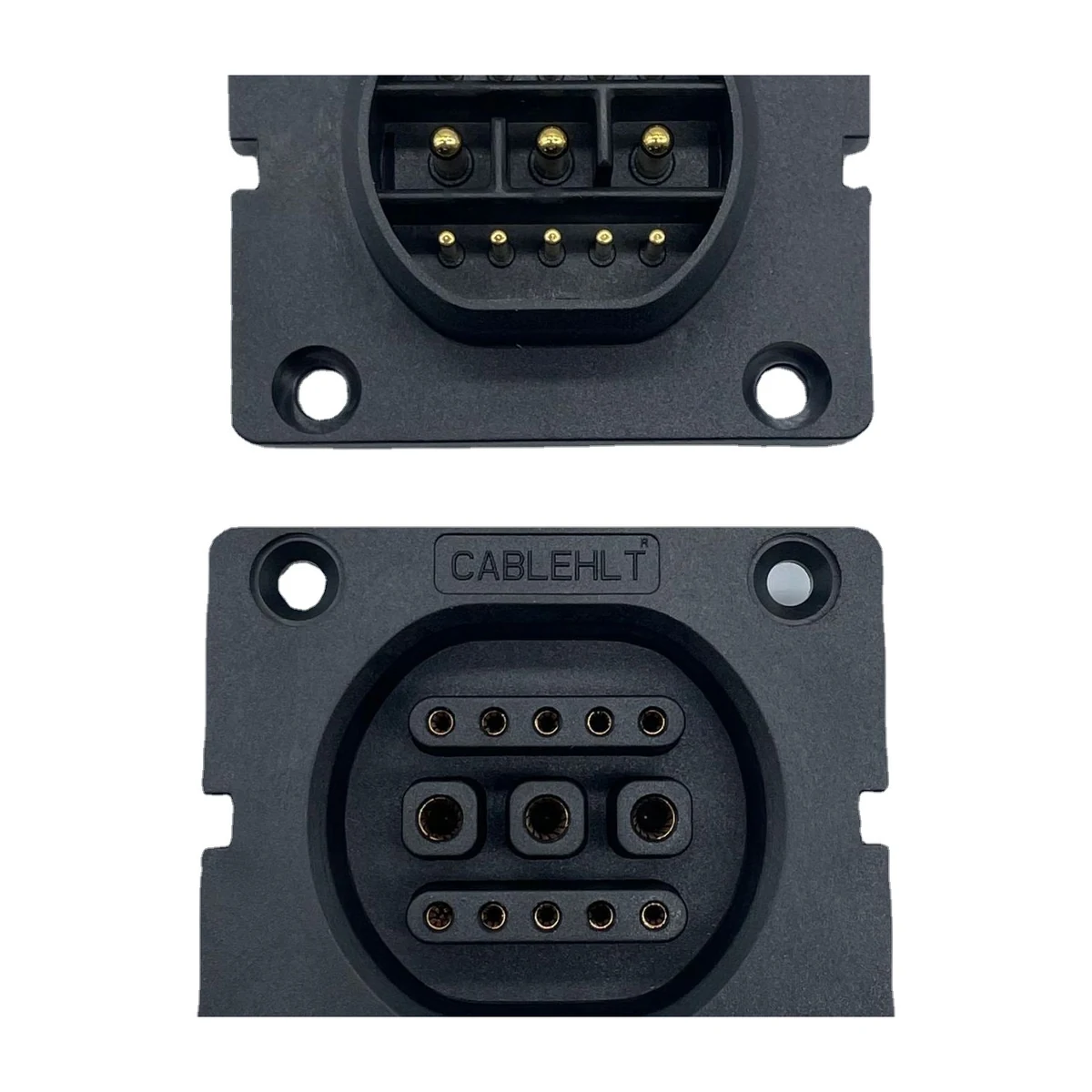

3+10 3+1 plug — battery-swap, IP67, view 1 of 1
In stock

3+10 3+1 plug — battery-swap, IP67

3+10 3+1 · Connectors / Energy storage connectors
$5.94USD / pc · EXWfrom 50 pcs per model. Volume breaks quoted at 500 / 1,000 / 5,000 pcs.
MOQ 50 pcGold-plated contacts1 variants

3+10 3+1 is a plug in the shop's 3+10 range. Used on battery-swap assemblies. IP67 sealed. Rated 20-50A continuous. UL94-V0 flame rating. Shipped EXW from Yueqing, 50 pcs minimum per model.

Variants
ConfigurationStockEXW / pc
Standard8,700$5.94
Request a quoteBack to catalog

Specifications

Model 3+10 3+1
Electrical
Rated current20-50A
Ingress protectionIP67
Flame ratingUL94-V0
Contact plating黄铜镀3U金
Identification
Series3+10
Applicationbattery-swap
