Connectors

Waterproof power connectors

Sealed plugs and sockets for harnesses that see rain, wash-down or condensation: e-bike and battery leads, charging ports, outdoor LED and equipment wiring. Prices are per piece, EXW Yueqing, in US dollars.

56 parts · 69 variants$0.38–$30.67 USDAll parts

Contact layouts

The range covers 2+1+7, 2+1+5, 2+2, 2+3, 2+5, 2+6, 3+10 and 8-pin layouts. In a 2+1+7 set the middle number is a dedicated earth contact, which is why a 2+1+7 part is not interchangeable with a 2+8 part even though both carry eight signal-side positions. Check the layout before comparing two families on price.

Ratings as published

Where the source listing states a rating it appears on the product page: 5 A at 5–220 V on the DX-DY-1350AGM and DX-DY-F717AGM, 1.5 A at 500 V on the DX-XH-B208AGM. Several sealed parts carry no current or voltage figure on the listing at all, and those pages say so rather than filling the gap with an assumption.

Where the seal actually comes from

The seal is the locking collar plus the panel gasket, so the panel cut-out and the collar thread decide whether the assembly stays watertight — more than the housing material does. If the application is safety-related, ask for the ingress test report for the exact plug-and-socket pair you intend to use.

Catalog

Parts in this family

Sealed power connector, 2+1+7 contact set, model DX-DY-R1040AGM
DX-DY-R1040AGM

Sealed power connector, 2+1+7 contact set

From $3.00USD / pc · EXWMOQ 100 pc · volume breaks at 500 / 1,000 / 5,000
Sealed power connector, M19 2+3 contact set, model M19 2+3
M19 2+3

Sealed power connector, M19 2+3 contact set

From $1.50USD / pc · EXWMOQ 100 pc · volume breaks at 500 / 1,000 / 5,000
Sealed power connector, 3+10 contact set, 5 A, model DX-DY-1350AGM
DX-DY-1350AGM

Sealed power connector, 3+10 contact set, 5 A

$7.50USD / pc · EXWMOQ 100 pc · volume breaks at 500 / 1,000 / 5,000
Sealed charging connector, R40 2+6 contact set, model R40 2+6
R40 2+6

Sealed charging connector, R40 2+6 contact set

From $2.25USD / pc · EXWMOQ 100 pc · volume breaks at 500 / 1,000 / 5,000
Sealed battery connector, 2+2 contact set, model DX-DY-R445AGM
DX-DY-R445AGM

Sealed battery connector, 2+2 contact set

From $1.05USD / pc · EXWMOQ 100 pc · volume breaks at 500 / 1,000 / 5,000
Sealed power connector, 8-pin nine-row contact set, model DX-DY-F985AGM
DX-DY-F985AGM

Sealed power connector, 8-pin nine-row contact set

From $1.50USD / pc · EXWMOQ 100 pc · volume breaks at 500 / 1,000 / 5,000
Sealed signal connector, 2P flat plug, 1.5 A, model DX-XH-B208AGM
DX-XH-B208AGM

Sealed signal connector, 2P flat plug, 1.5 A

$0.38USD / pc · EXWMOQ 100 pc · volume breaks at 500 / 1,000 / 5,000
Sealed power connector, 2+5 contact set, model DX-DY-F717AGM
DX-DY-F717AGM

Sealed power connector, 2+5 contact set

From $1.88USD / pc · EXWMOQ 100 pc · volume breaks at 500 / 1,000 / 5,000
Sealed panel socket, M25 2+1+5 contact set, model M25 2+1+5
M25 2+1+5

Sealed panel socket, M25 2+1+5 contact set

$3.75USD / pc · EXWMOQ 100 pc · volume breaks at 500 / 1,000 / 5,000
M20 2+3 quick-lock plug and socket — IP67, model M20 2+3

M20 2+3 quick-lock plug and socket — IP67

$5.30USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

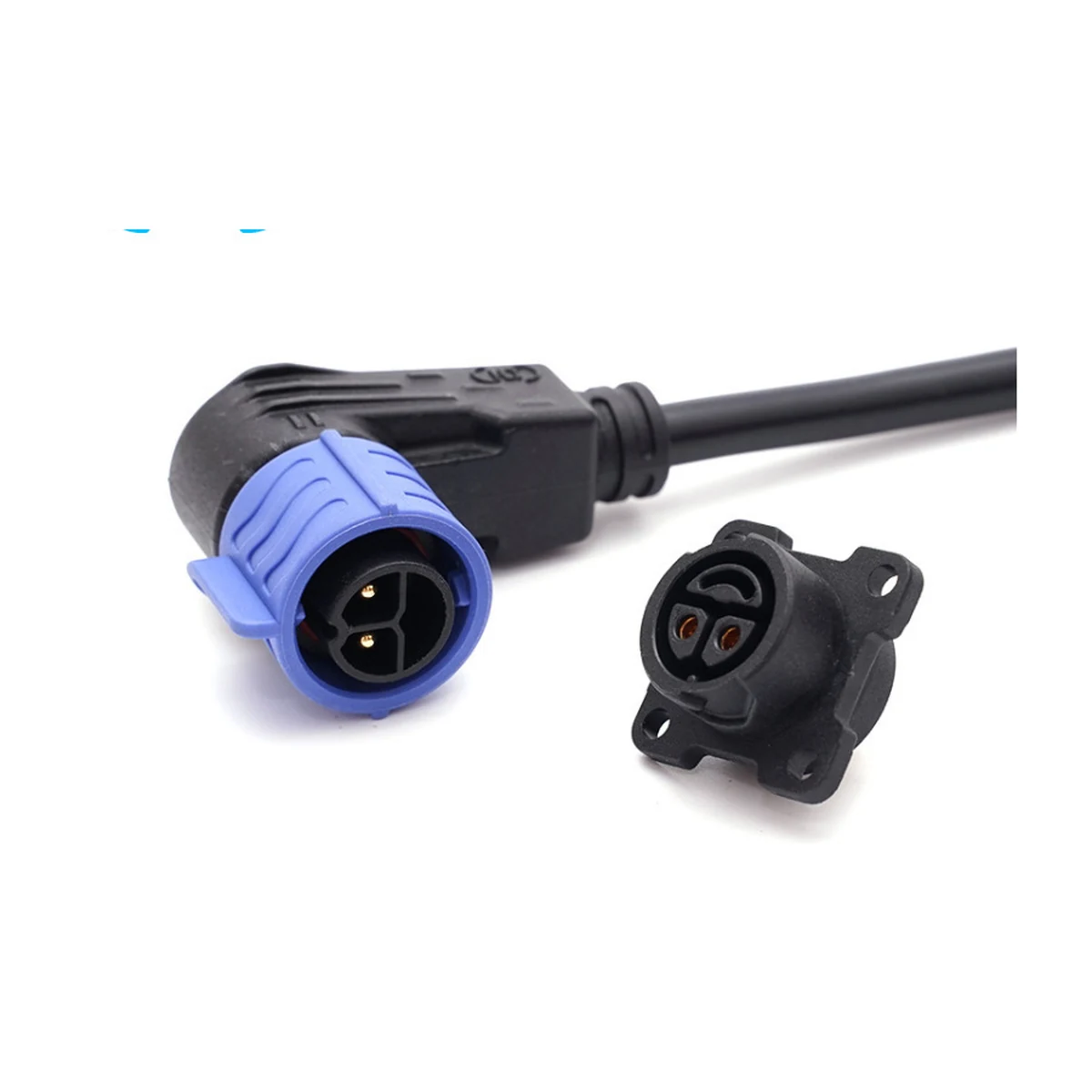

M20 2+0 quick-lock plug — lithium battery, IP67, model M20 2+0

M20 2+0 quick-lock plug — lithium battery, IP67

$4.68USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

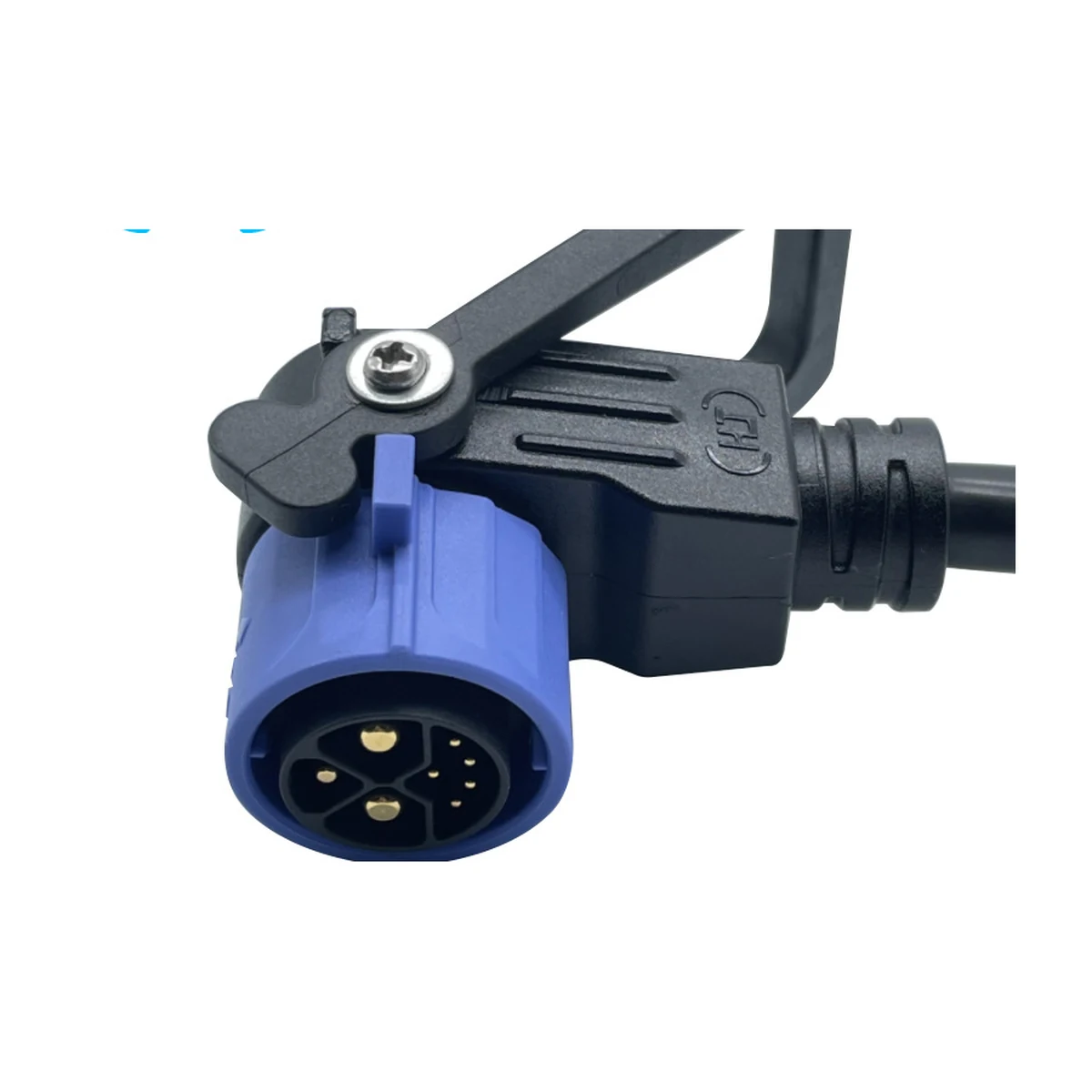

M25 2+1+5 quick-lock plug — e-bike, IP67, model M25 2+1+5

M25 2+1+5 quick-lock plug — e-bike, IP67

$12.11USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M20 2+3 plug — e-bike, model M20 2+3

M20 2+3 plug — e-bike

$2.81USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M16 quick-lock plug and socket, model M16

M16 quick-lock plug and socket

$2.49USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M28 2+6 plug — battery-swap, model M28 2+6

M28 2+6 plug — battery-swap

$8.93USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

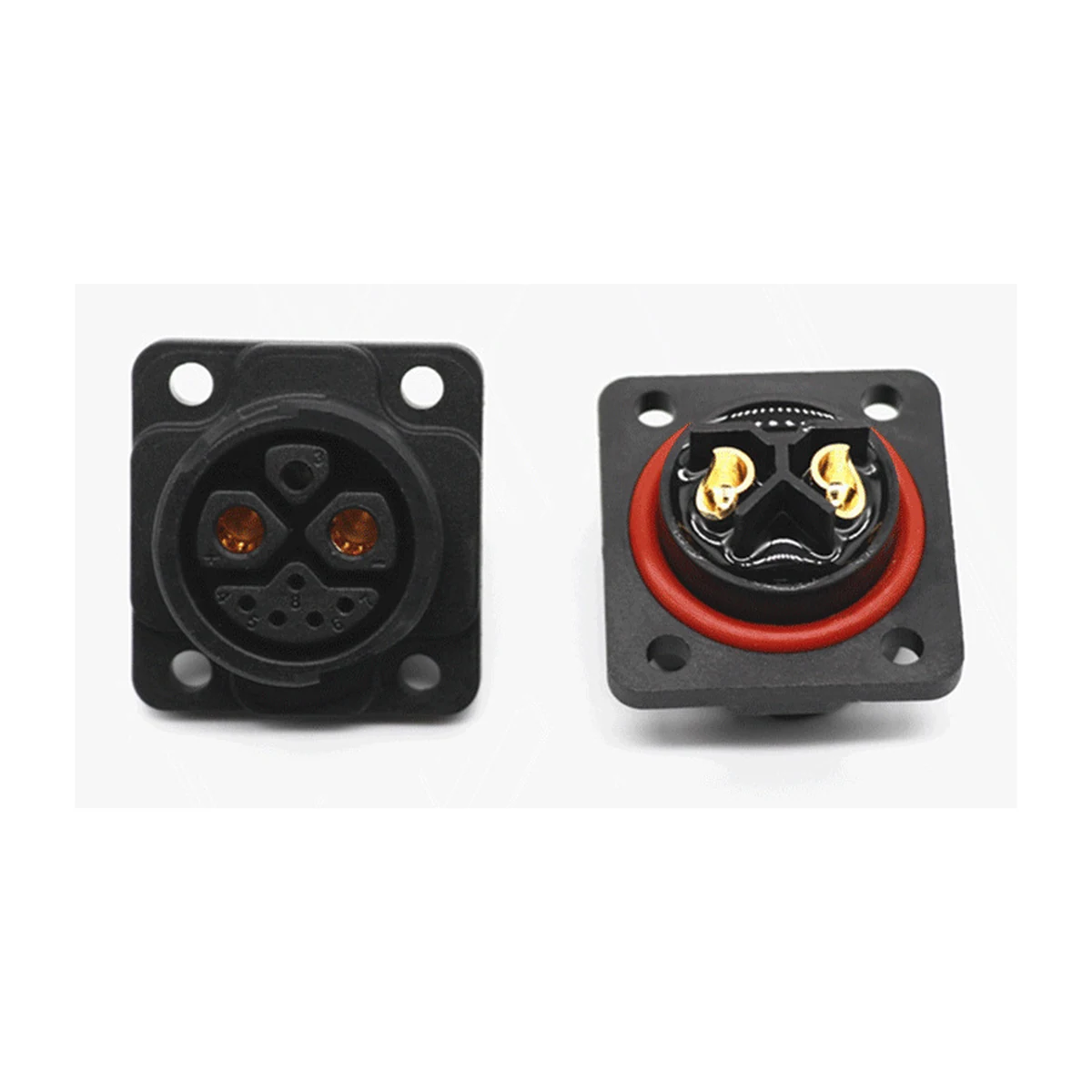

M25 2+0 socket — e-bike, model M25 2+0

M25 2+0 socket — e-bike

$3.42USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M36 2+6 plug — lithium battery, model M36 2+6

M36 2+6 plug — lithium battery

From $10.68USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M20 2+0 quick-lock plug — e-bike, IP67, model M20 2+0

M20 2+0 quick-lock plug — e-bike, IP67

$10.95USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

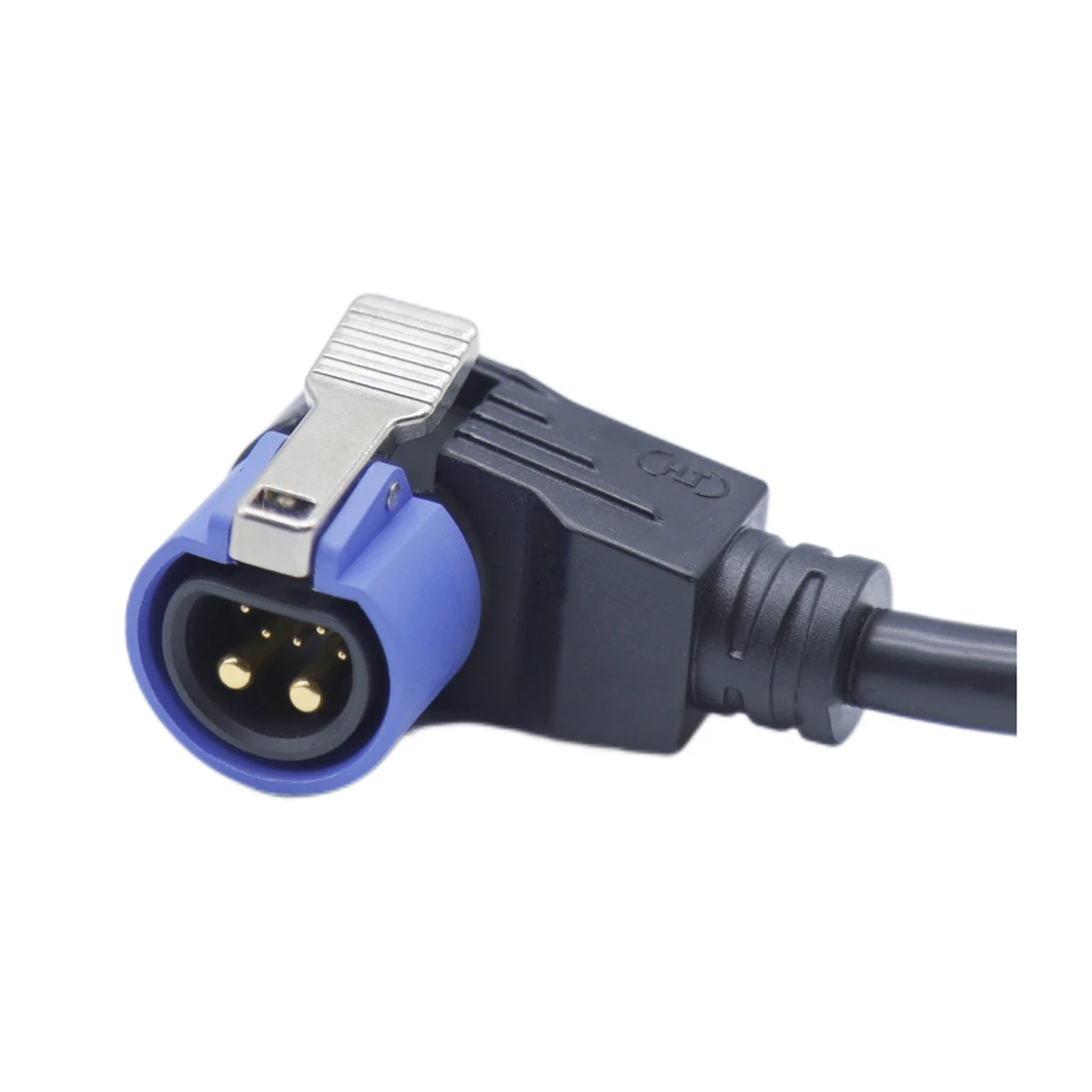

M28 2+6 plug — battery-swap cabinet, IP67, model M28 2+6

M28 2+6 plug — battery-swap cabinet, IP67

$9.07USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M20 2+0 quick-lock socket — e-bike, IP67, model M20 2+0

M20 2+0 quick-lock socket — e-bike, IP67

$2.49USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M20 2+0 quick-lock socket — e-bike, IP67, model M20 2+0

M20 2+0 quick-lock socket — e-bike, IP67

$2.16USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

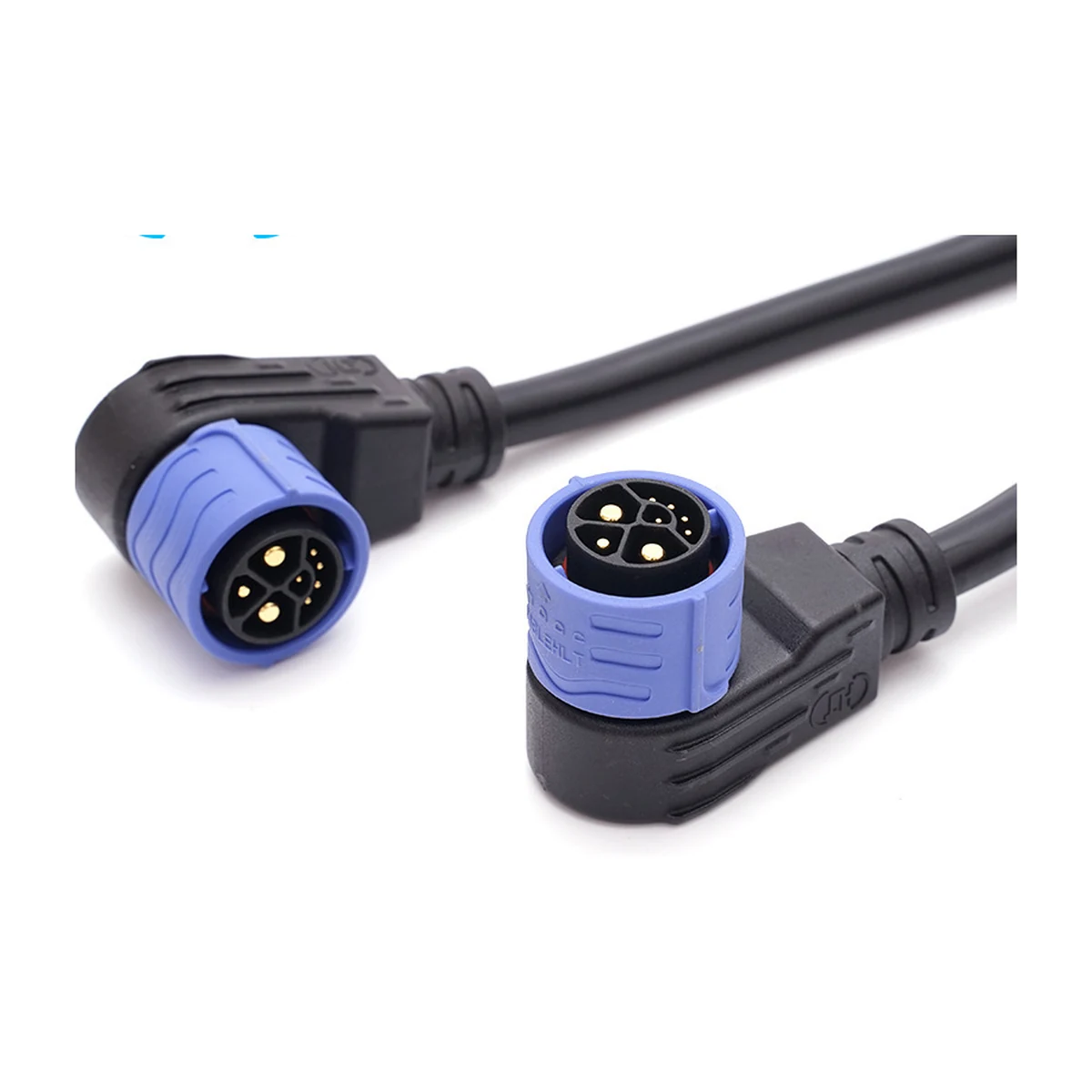

M23 2+1+5 quick-lock plug — e-bike, IP67, model M23 2+1+5

M23 2+1+5 quick-lock plug — e-bike, IP67

$9.69USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+0 quick-lock — e-bike, IP67, model M25 2+0

M25 2+0 quick-lock — e-bike, IP67

$7.20USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+0 quick-lock socket — lithium battery, IP67, model M25 2+0

M25 2+0 quick-lock socket — lithium battery, IP67

$2.55USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M28 2+0 right-angle plug — e-scooter, model M28 2+0

M28 2+0 right-angle plug — e-scooter

$8.39USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 quick-lock plug and socket — e-scooter, IP67, model M25

M25 quick-lock plug and socket — e-scooter, IP67

$7.28USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M20 quick-lock plug and socket — e-scooter, IP67, model M20

M20 quick-lock plug and socket — e-scooter, IP67

From $4.32USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M23 2+0+3 plug — IP67, model M23 2+0+3

M23 2+0+3 plug — IP67

$5.01USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

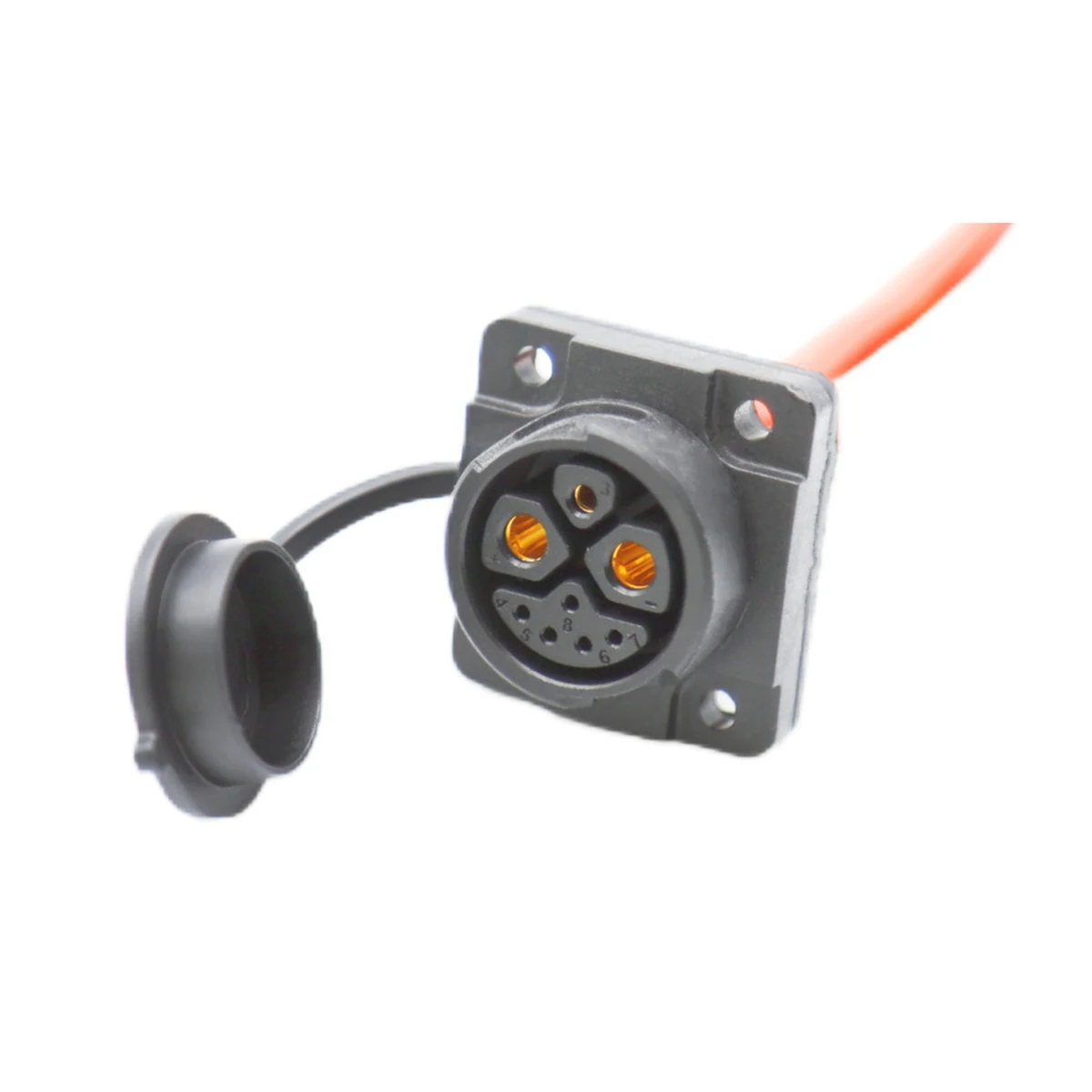

M25 2+1+5 quick-lock socket — lithium battery, IP67, model M25 2+1+5

M25 2+1+5 quick-lock socket — lithium battery, IP67

$9.69USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

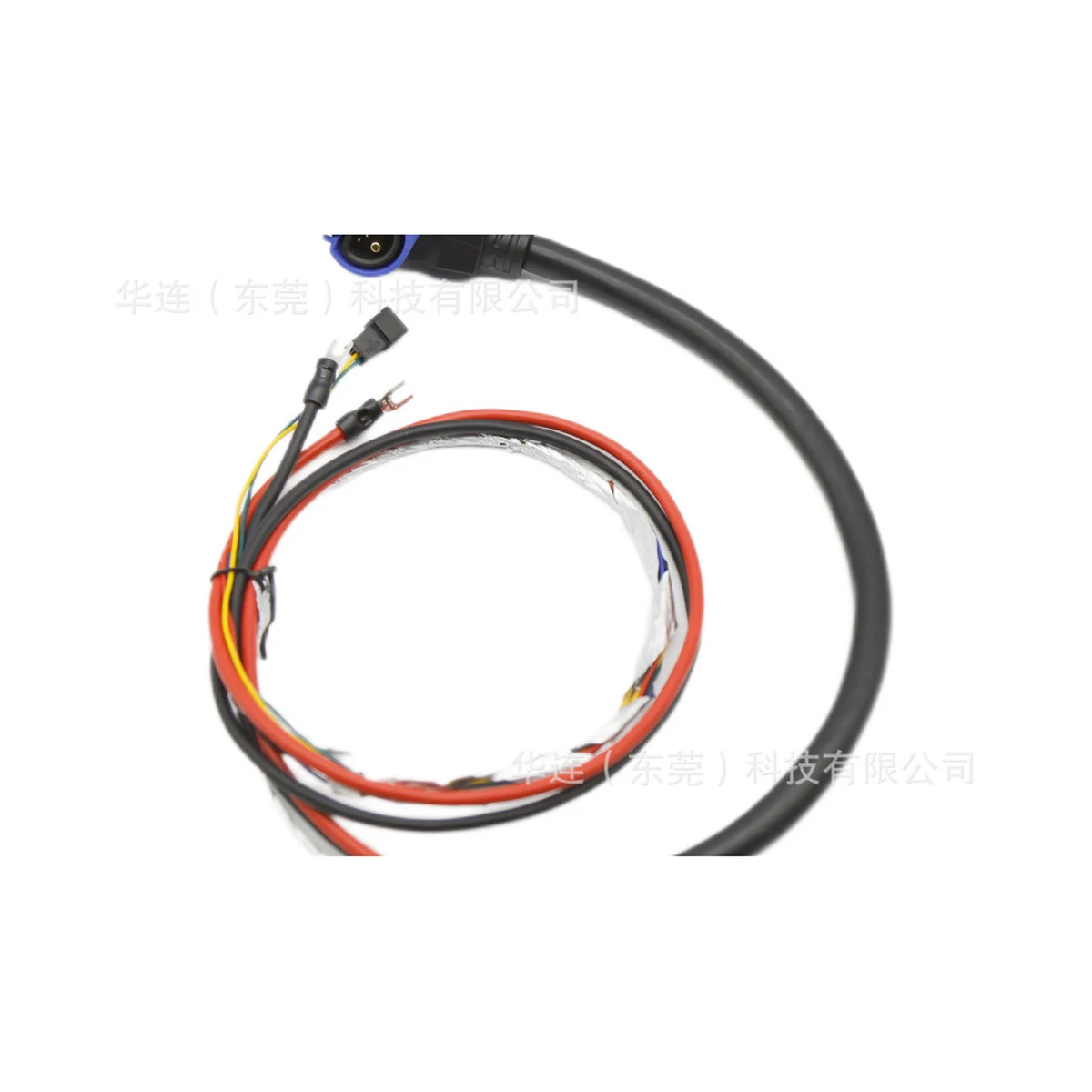

M28 2+5 connector — lithium battery, IP67, model M28 2+5

M28 2+5 connector — lithium battery, IP67

$15.62USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
HL panel-mount socket, model HL

HL panel-mount socket

$16.56USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

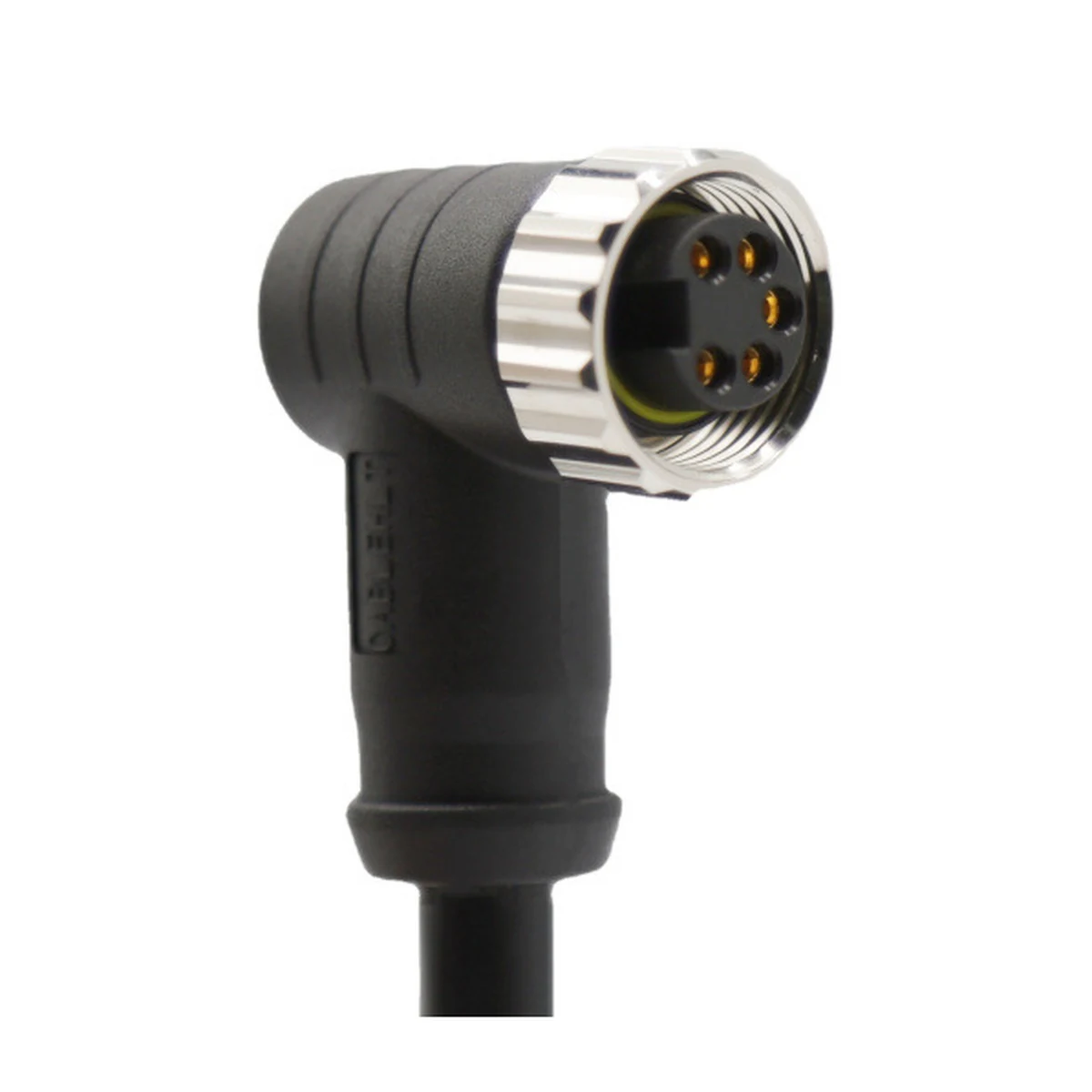

HL plug and socket, model HL

HL plug and socket

$16.56USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M16 quick-lock plug and socket, model M16

M16 quick-lock plug and socket

$2.34USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

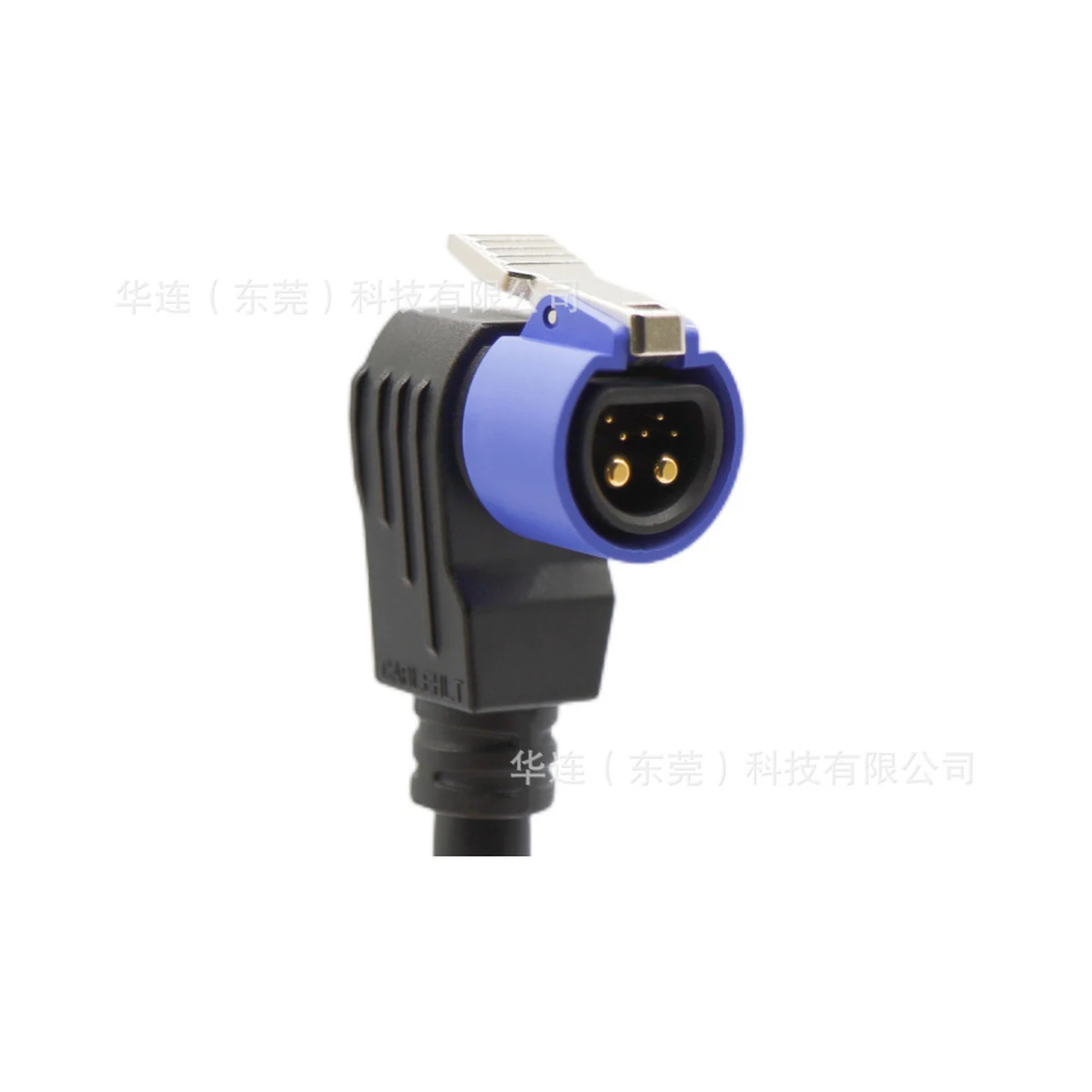

M28 2+5 connector — battery-swap cabinet, IP67, model M28 2+5

M28 2+5 connector — battery-swap cabinet, IP67

$9.07USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+4 quick-lock — e-bike, IP67, model M25 2+4

M25 2+4 quick-lock — e-bike, IP67

$8.43USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+4 quick-lock socket — e-bike, IP67, model M25 2+4

M25 2+4 quick-lock socket — e-bike, IP67

$5.81USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M16 quick-lock plug — IP67, model M16

M16 quick-lock plug — IP67

$4.68USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M28 2+5 plug — e-bike, IP67, model M28 2+5

M28 2+5 plug — e-bike, IP67

$9.07USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M28 2+6 socket — e-bike, IP67, model M28 2+6

M28 2+6 socket — e-bike, IP67

$9.07USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+1+5 quick-lock plug — e-bike, IP67, model M25 2+1+5

M25 2+1+5 quick-lock plug — e-bike, IP67

$9.00USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 quick-lock plug — e-bike, IP67, model M25

M25 quick-lock plug — e-bike, IP67

$5.62USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+1+5 quick-lock plug — e-bike, IP67, model M25 2+1+5

M25 2+1+5 quick-lock plug — e-bike, IP67

$10.62USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

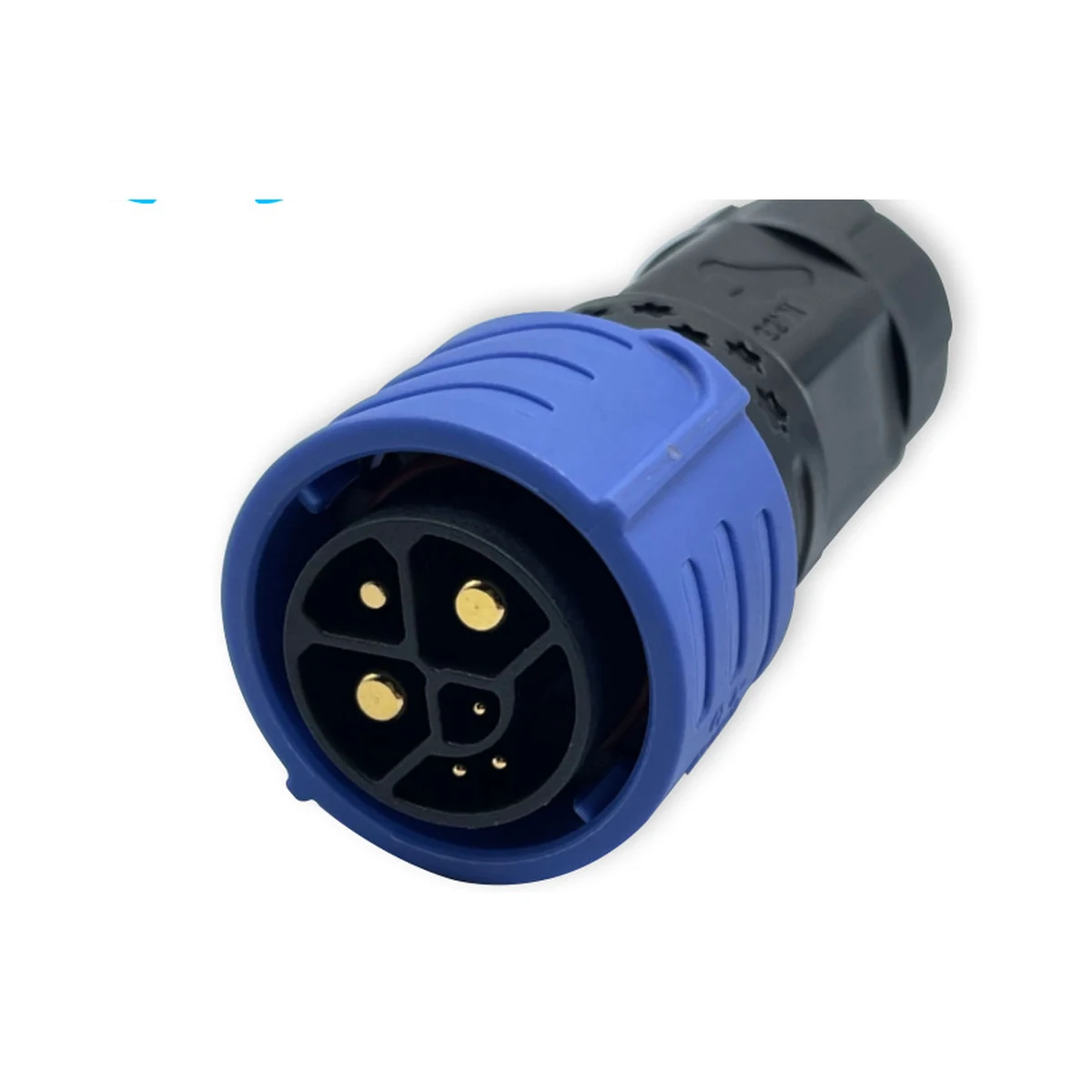

M25 2+1+3 quick-lock plug — e-bike, model M25 2+1+3

M25 2+1+3 quick-lock plug — e-bike

$7.92USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+0 quick-lock plug — e-bike, IP67, model M25 2+0

M25 2+0 quick-lock plug — e-bike, IP67

$5.62USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

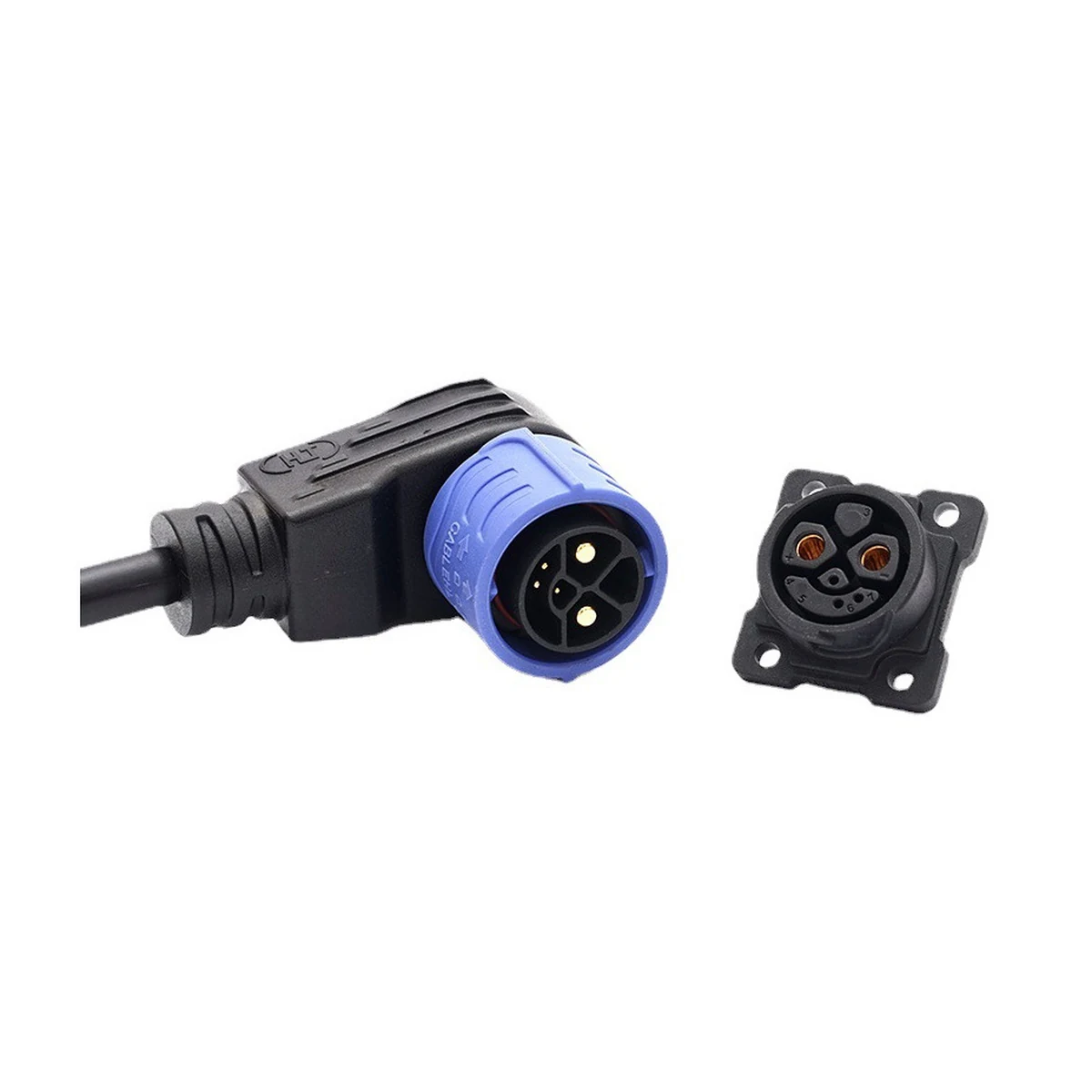

M25 2+0+3 quick-lock plug — e-bike, IP67, model M25 2+0+3

M25 2+0+3 quick-lock plug — e-bike, IP67

$7.81USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+1+3 quick-lock plug — lithium battery, IP67, model M25 2+1+3

M25 2+1+3 quick-lock plug — lithium battery, IP67

$9.07USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

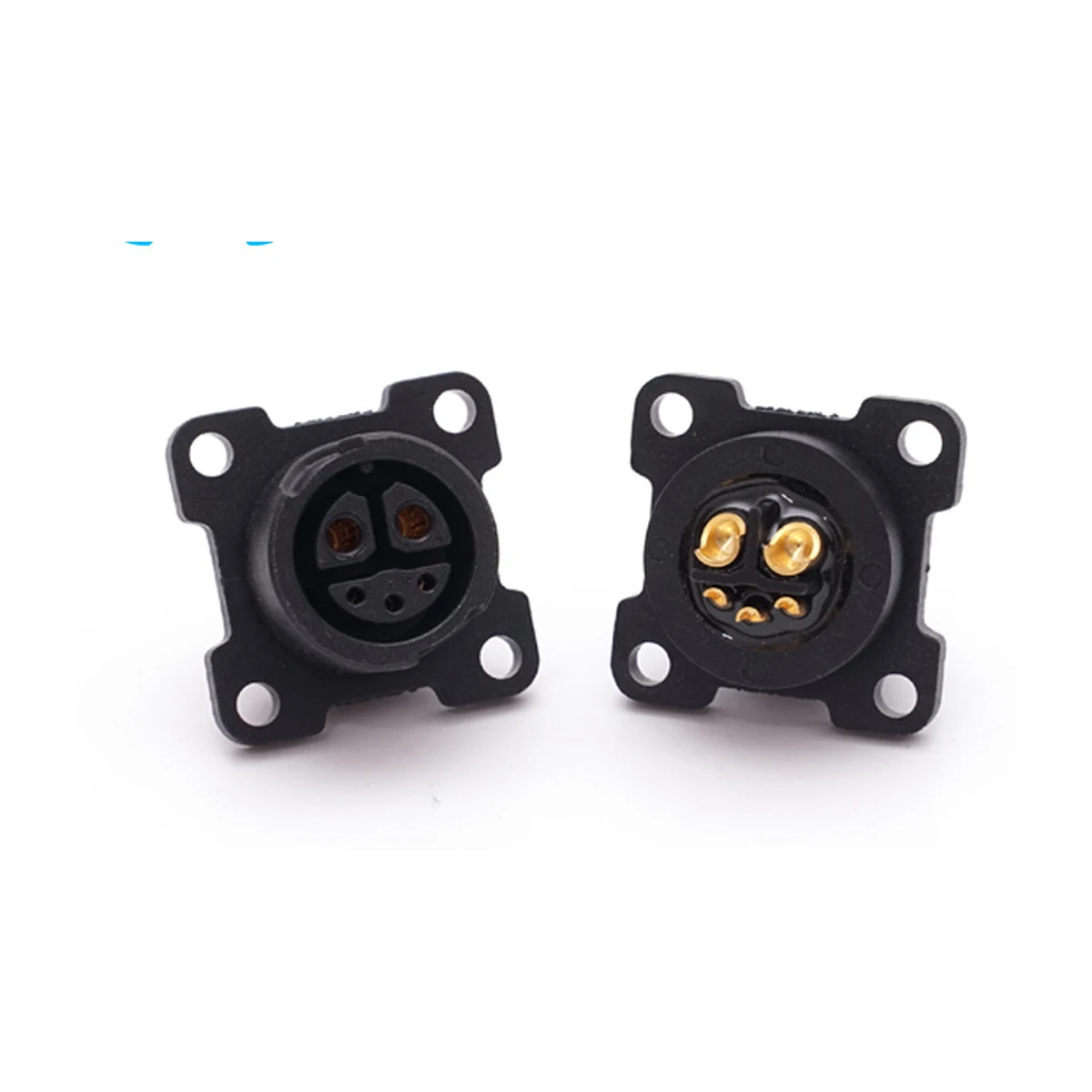

M20 2+3 quick-lock plug — e-bike, IP67, model M20 2+3

M20 2+3 quick-lock plug — e-bike, IP67

$2.99USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+1+5 quick-lock plug — e-bike, IP67, model M25 2+1+5

M25 2+1+5 quick-lock plug — e-bike, IP67

$4.68USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

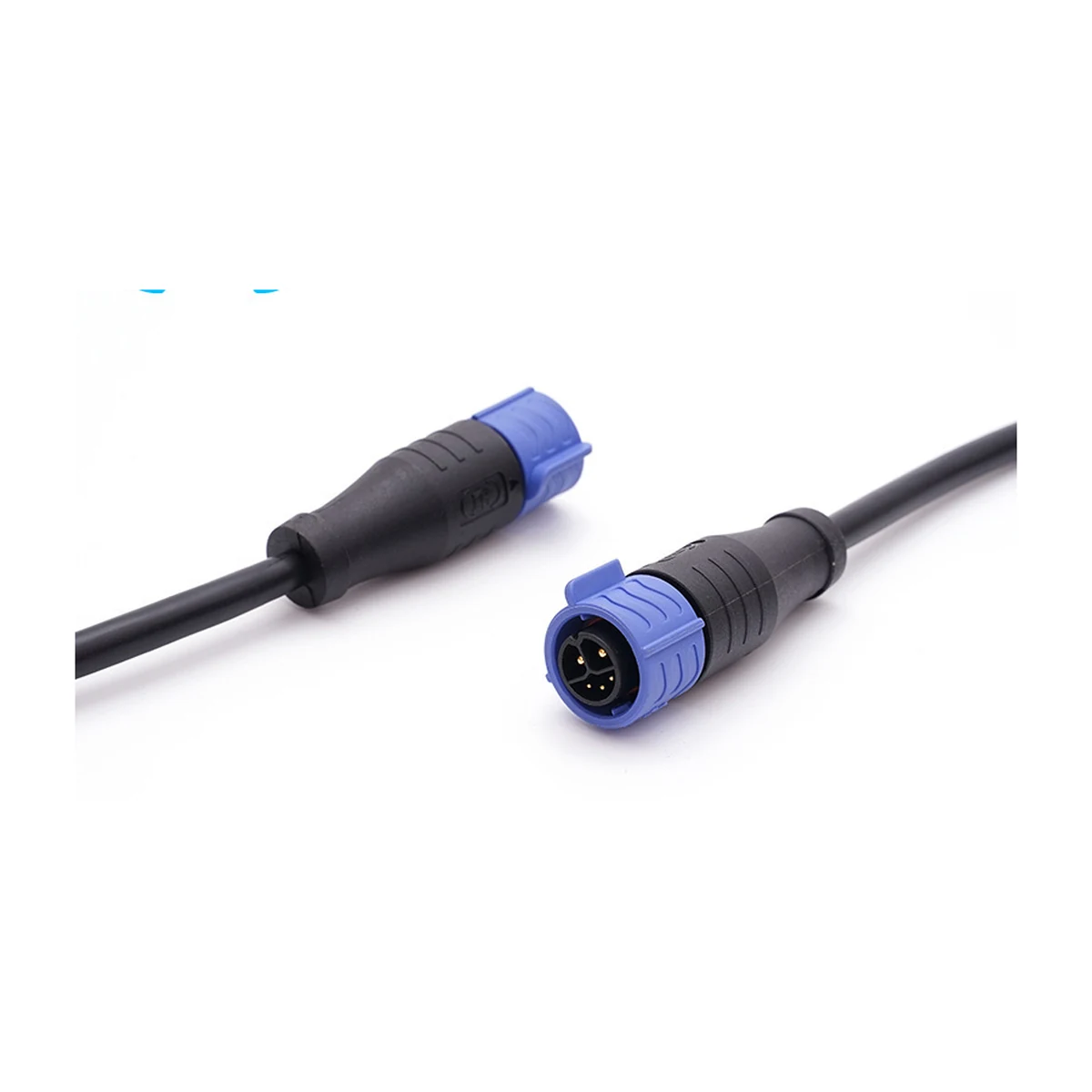

M20 2+3 quick-lock plug, model M20 2+3

M20 2+3 quick-lock plug

$5.30USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M20 2+0 plug — IP67, model M20 2+0

M20 2+0 plug — IP67

$4.07USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+0 quick-lock plug — e-bike, IP67, model M25 2+0

M25 2+0 quick-lock plug — e-bike, IP67

$4.68USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M25 2+0 quick-lock plug — charging pile, IP67, model M25 2+0

M25 2+0 quick-lock plug — charging pile, IP67

$5.63USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

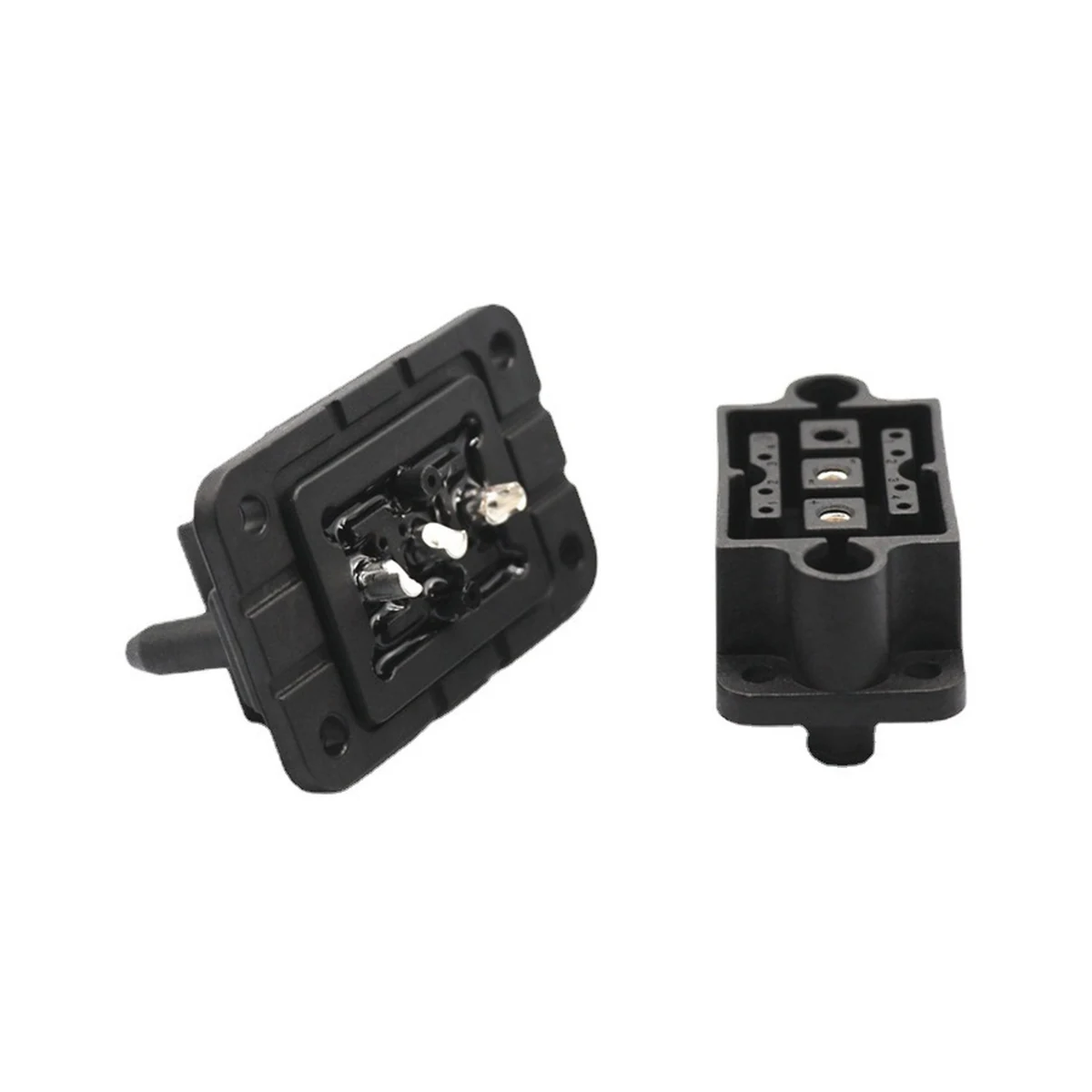

HL 3+0 floating socket — battery-swap, model HL 3+0

HL 3+0 floating socket — battery-swap

$20.34USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

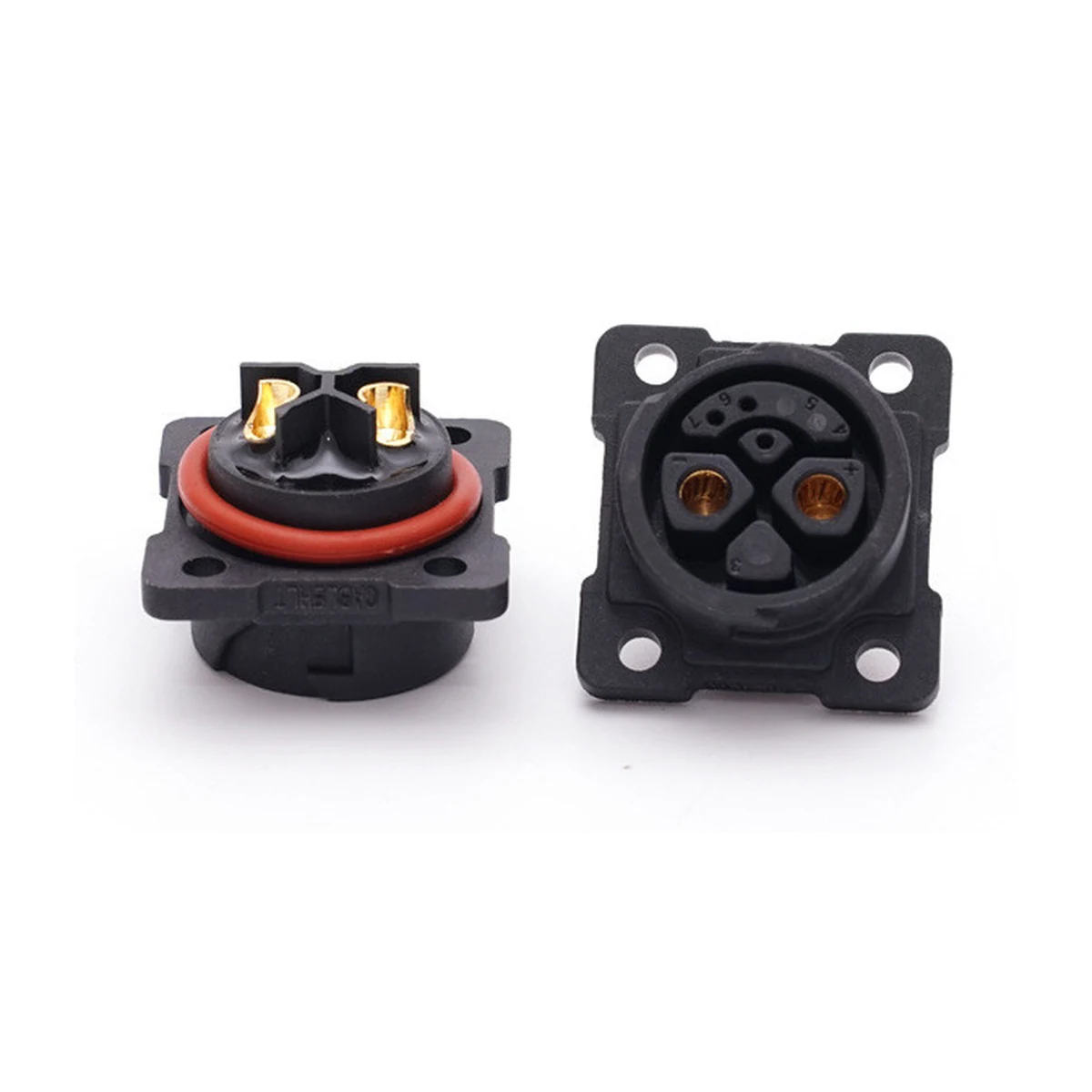

M25 2+1+3 plug — e-bike, IP67, model M25 2+1+3

M25 2+1+3 plug — e-bike, IP67

$4.36USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
M20 2+3 plug — e-bike, IP67, model M20 2+3

M20 2+3 plug — e-bike, IP67

$3.10USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000

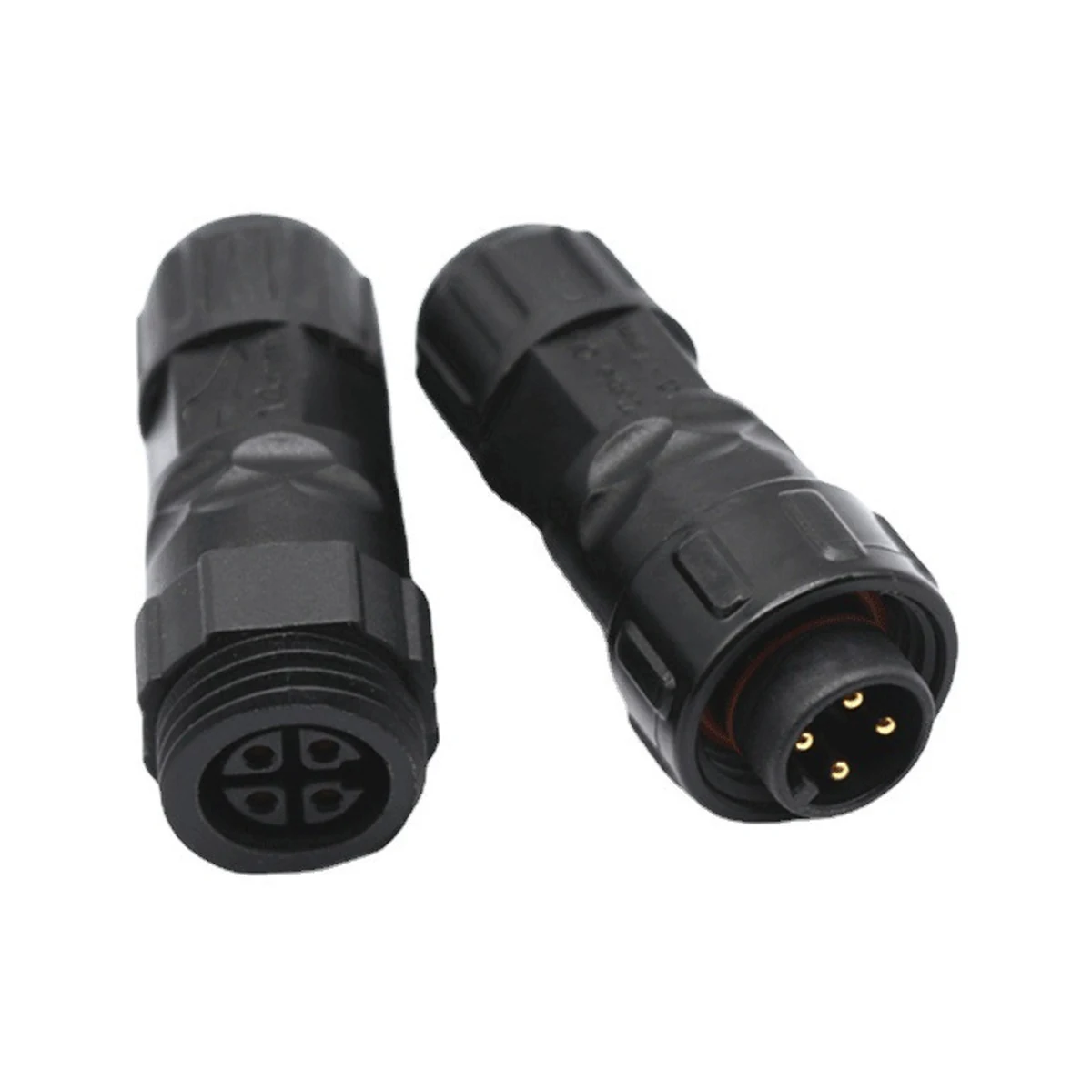

M16 plug and socket — IP67, model M16

M16 plug and socket — IP67

$2.70USD / pc · EXWMOQ 50 pc · volume breaks at 500 / 1,000 / 5,000
Also in the catalog

Other connector families

07 parts

High-current plug connectors

Gold-plated contact sets for LED and power harnesses.

Open family28 parts

Sealed aviation connectors

SP-series sealed circular connectors, 1 to 26 contacts, in rear-nut, flange and inline versions.

Open family16 parts

EV high-voltage connectors

8 mm high-voltage plugs and sockets for electric-vehicle battery and charging harnesses, rated up to 2000 V / 250 A.

Open family63 parts

Energy-storage connectors

Single-core high-current barrel connectors for battery cabinets, PCS, wind and PV combiner boxes — 5.7 to 12 mm barrels taking 16 to 107 mm² cable.

Open family
Inquiry

Need a variant that is not listed?

Cable size, mount and current rating are the three things that change an ordering code. Send them with the model number and the closest variant can be confirmed.
